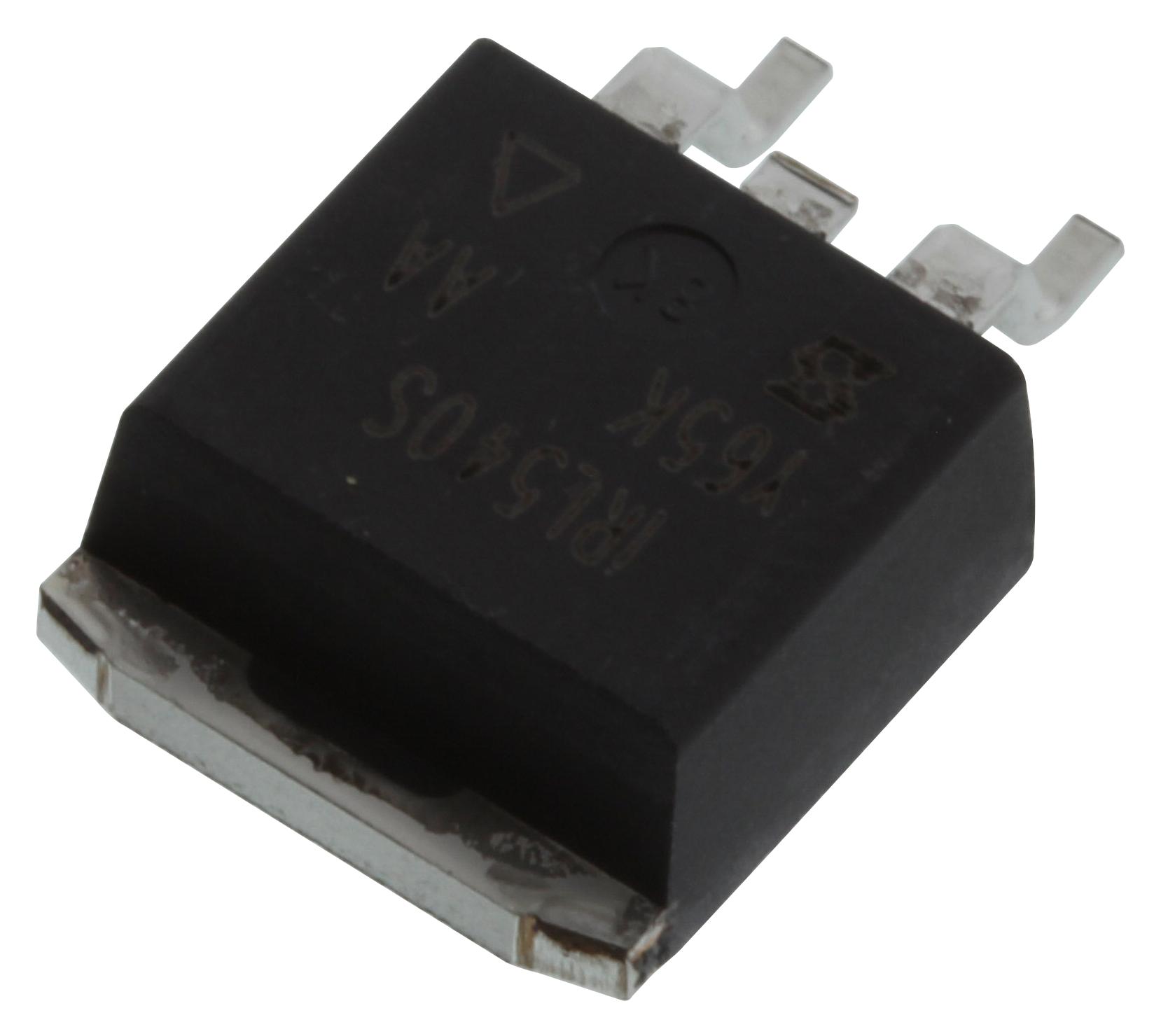

Vishay IRL540SPBF Power MOSFET
The IRL540S is a high-performance N-channel Power MOSFET featuring low on-resistance, fast switching capability, and a ruggedized construction suitable for high-current applications. It is housed in a TO-263 (D2PAK) surface-mount package, capable of dissipating up to 150 W. Designed for efficiency and reliability, this device complies with RoHS and halogen-free standards, making it ideal for industrial power management, switching regulators, and motor control systems. Its low gate charge and robust avalanche ratings ensure stable operation under demanding conditions.
Vishay IRL540SPBF Power MOSFET Specifications:
- Drain-Source Voltage: 100 V
- Gate-Source Voltage: ±10 V
- Continuous Drain Current: 100 A at 25°C
- Pulsed Drain Current: 110 A
- Maximum Power Dissipation: 150 W
- Operating Junction Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Ambient: 62°C/W
- Gate-Source Threshold Voltage: 1.0–20 V
- On-State Resistance Rds(on): typ. value not specified, but low in datasheet
- Repetitive Avalanche Energy: 15 mJ
- Peak Diode Recovery dV/dt: 55 V/μs
- Body Diode Forward Voltage: typ. 1.25 V at 28 A
- Package: TO-263 (D2PAK)
Buy the Vishay IRL540S – Reliable Power MOSFET for Industrial Applications
Purchase the Vishay IRL540S Power MOSFET online now to benefit from its low on-resistance, fast switching performance, and ruggedized construction. Ideal for high-current industrial applications, this device ensures efficient power management and reliable operation in switching regulators, motor controllers, and power supplies. With a compact TO-263 package, it is easy to integrate into your designs. Order today to enhance your system’s performance with this high-quality, RoHS-compliant, halogen-free power MOSFET and experience seamless online shopping convenience.
Order your Vishay IRL540S Power MOSFET today and ensure high efficiency and reliability in your industrial power management projects.
Frequently Asked Questions
Where can I buy Vishay IRL540SPBF?
You can click on the BUY or RFQ button to purchase IRL540SPBF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IRL540SPBF?
You can download the IRL540SPBF datasheet or visit the Vishay website for support.
Who is the manufacturer of IRL540SPBF?
Vishay
