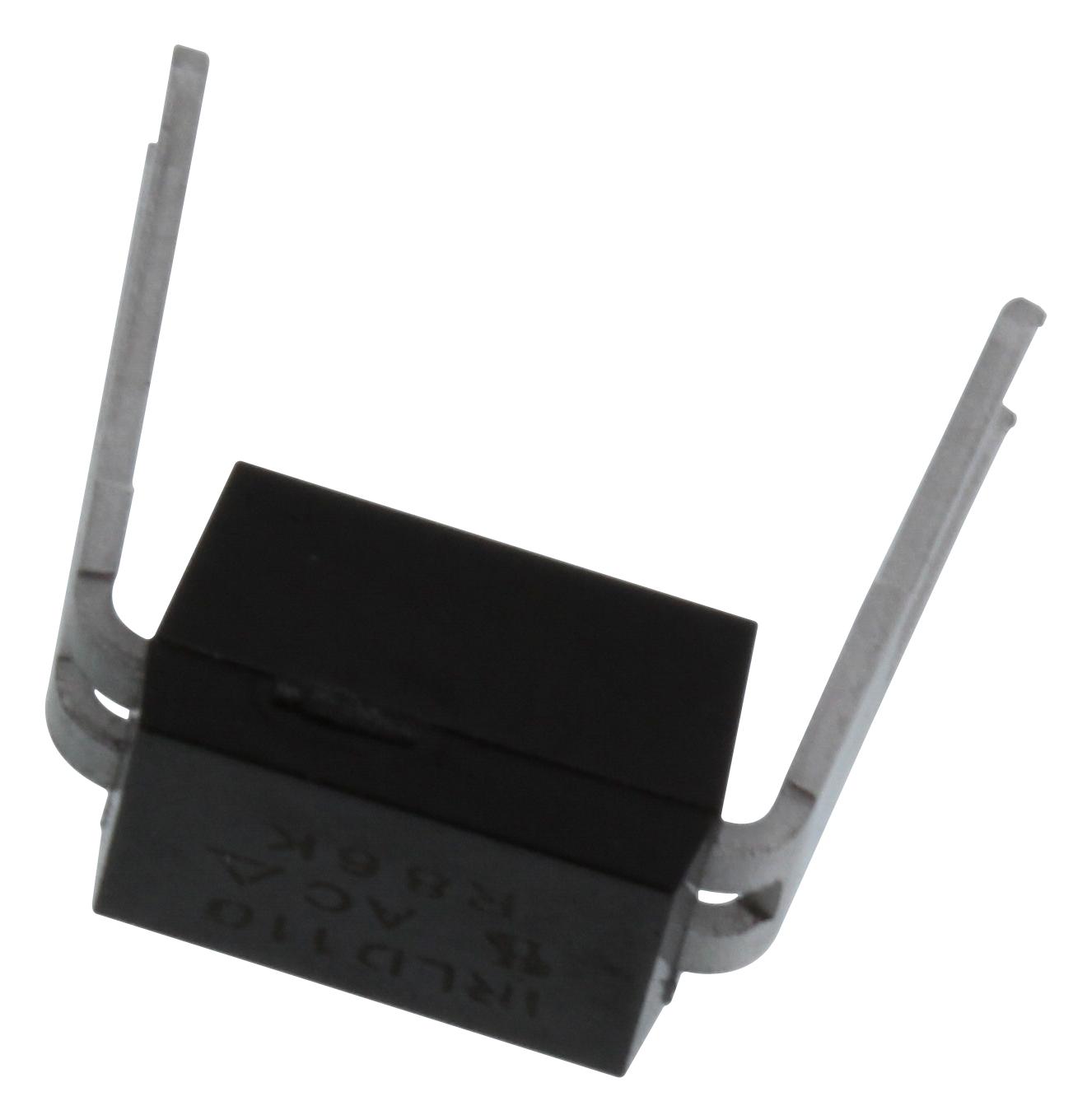

Vishay IRLD110PBF High-Voltage Power MOSFET
This high-voltage N-channel power MOSFET housed in a HVMDIP package offers fast switching, low on-resistance, and rugged design for power electronic circuits. It features a dynamic dV/dt rating, avalanche rated for reliable switching under repetitive conditions, and supports logic-level gate drive. Suitable for stacking in multiple configurations, it operates efficiently at temperatures up to 175°C and includes a thermal link for effective heat dissipation. An ideal choice for high-voltage switching, inverter circuits, and power management applications requiring durability and performance.
Vishay IRLD110PBF High-Voltage Power MOSFET Specifications:
- Drain-Source Voltage: 100 V
- Gate-Source Voltage: ±10 V
- Continuous Drain Current: 0.70 A at 100°C
- Pulsed Drain Current: 8.0 A
- Maximum Power Dissipation: 1.3 W at 25°C
- Operating Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Ambient: 120 °C/W
- Gate Charge: 26 nC
- Drain-Source On-Resistance: 0.076 ohms at Vgs=4V
- Fall Time: 17 ns
- Rise Time: 47 ns
- Body Diode Forward Voltage: 2.5 V
- Reverse Recovery Time: 110 ns
- Peak Diode Recovery dV/dt: 5.5 V/ns
Buy the Buy Vishay IRLD110PBF Power MOSFET Part Number IRLD110PBF Online
Secure your high-voltage switching solutions with the Vishay IRLD110PBF power MOSFET. Designed for fast switching, rugged operation, and low on-resistance, this device is perfect for inverter and power management circuits. Its high operating temperature up to 175°C ensures durability in demanding environments. The HVMDIP package allows easy stacking and efficient heat dissipation, making it ideal for complex power electronics. Purchase online now to guarantee supply of this reliable, high-performance MOSFET for your industrial or electronic applications.
Buy Vishay IRLD110PBF power MOSFET now and experience unmatched reliability and high-voltage switching efficiency.
Frequently Asked Questions
Where can I buy Vishay IRLD110PBF?
You can click on the BUY or RFQ button to purchase IRLD110PBF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IRLD110PBF?
You can download the IRLD110PBF datasheet or visit the Vishay website for support.
Who is the manufacturer of IRLD110PBF?
Vishay
