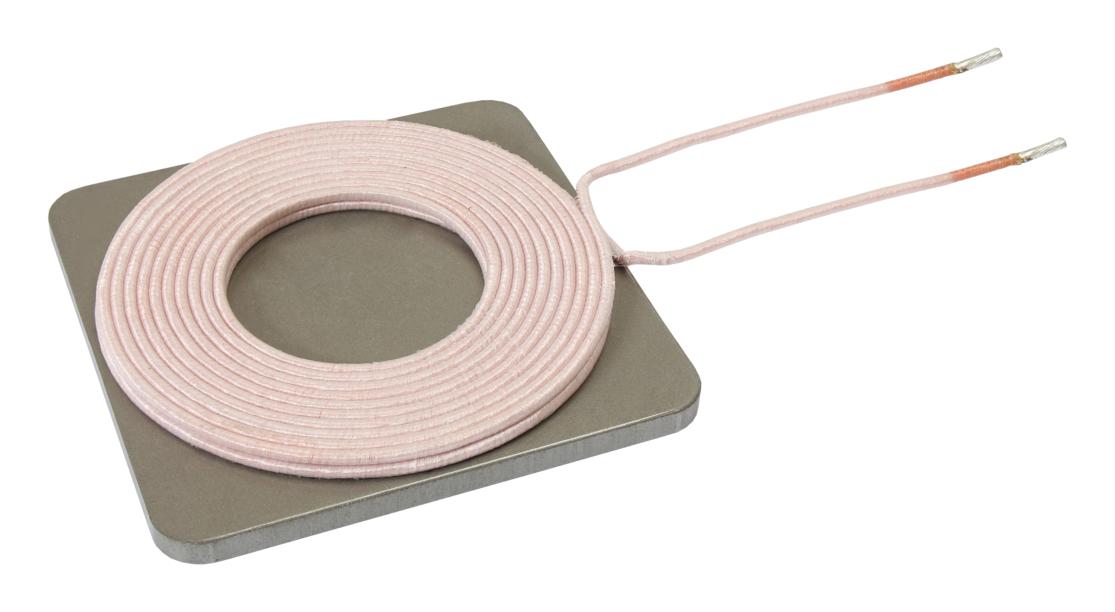

Vishay IWTX4646DCEB240JF1 Wireless Charging Coil
The wireless charging transmitter coil from Vishay is designed for reliable inductive power transfer in industrial environments. With operating temperatures from -40°C to +105°C and RoHS compliance, it features an inductance of 24 μH, a Q factor of 185, and an DCR of 75 mΩ at 200 kHz. The compact dimensions include a length of 46.00 mm ± 0.25 mm, width of 40.0 mm, and a thickness of 5.0 mm ± 1.0 mm. Suitable for various industrial wireless charging applications, it ensures durability and high performance under demanding conditions.
Vishay IWTX4646DCEB240JF1 Wireless Charging Coil Specifications:
- Inductance: 24 μH ± 5%
- Q factor: 185 at 200 kHz
- DCR: 75 mΩ at 25°C
- Operating temperature: -40°C to +105°C
- Storage temperature: -40°C to +105°C
- Dimensions: 46.00 mm ± 0.25 mm length, 40.0 mm width, 5.0 mm ± 1.0 mm thickness
- Material: Tinned, RoHS compliant
- Frequency: 200 kHz
- Max current: 20 A
- Isat: 20 A
- Model: IWTX-4646DC-F1
Buy the Vishay IWTX4646DC – Reliable Wireless Charging Coil for Industrial Applications
Enhance your industrial wireless charging systems with this Vishay wireless coil, engineered for reliability and high efficiency. Its robust construction supports operating temperatures from -40°C to +105°C, ensuring consistent performance in harsh environments. With a 24 μH inductance, high Q factor, and compact dimensions, this coil is ideal for various industrial applications requiring precise and dependable wireless power transfer. Purchase online today and benefit from Vishay’s quality and innovation for your industrial projects.
Order your Vishay Series IWTX4646DC coil today and ensure durable, high-performance wireless power transfer in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay IWTX4646DCEB240JF1?
You can click on the BUY or RFQ button to purchase IWTX4646DCEB240JF1 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IWTX4646DCEB240JF1?
You can download the IWTX4646DCEB240JF1 datasheet or visit the Vishay website for support.
Who is the manufacturer of IWTX4646DCEB240JF1?
Vishay
