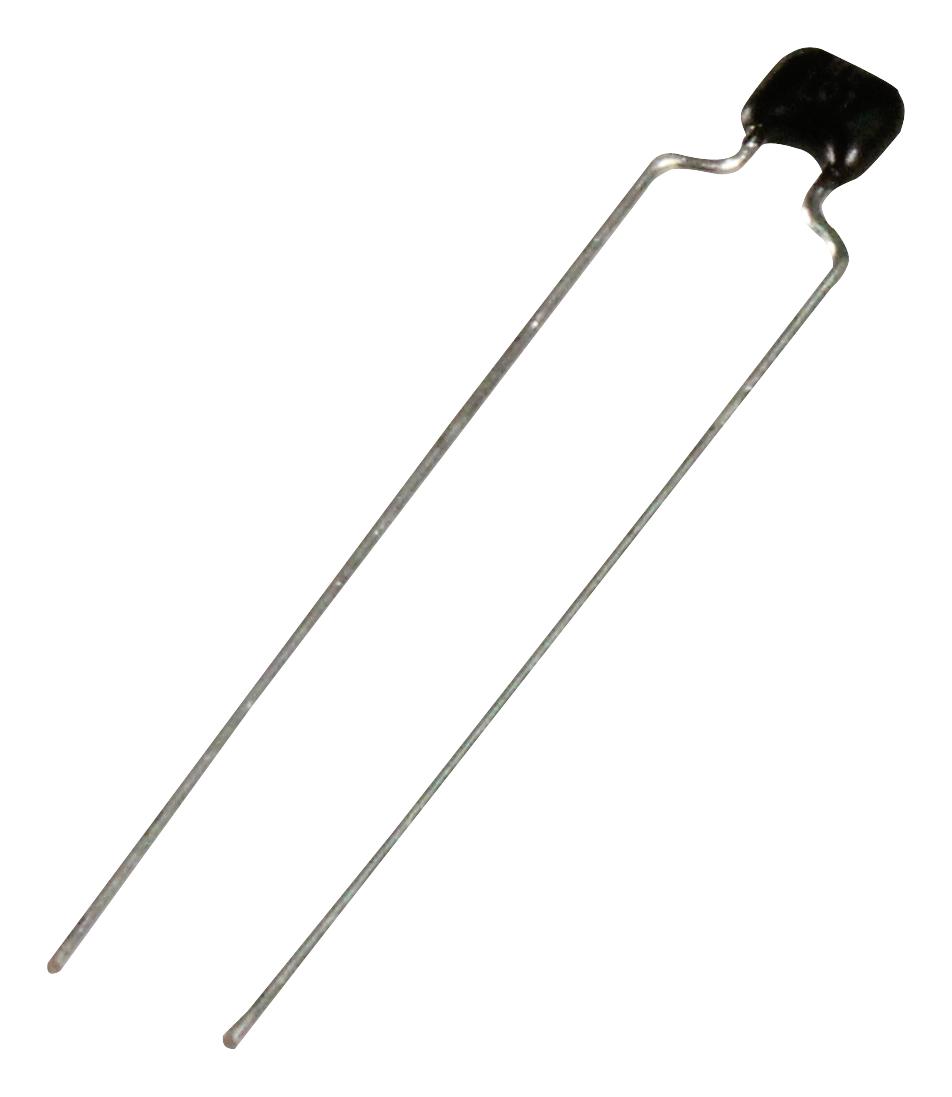

Vishay K101J15C0GF53H5H Automotive Ceramic Capacitor
High-temperature multilayer ceramic capacitor designed for automotive applications, with voltage ratings up to 200 V and operating temperatures up to 200°C. This MLCC features a high reliability wet build process, RoHS compliance, and is available in various sizes with straight or kinked leads. Suitable for demanding environments, it meets AEC-Q200 standards and is ideal for automotive electronics, power modules, and electronic control units, providing excellent stability, low dissipation factor, and robust insulation resistance over wide temperature ranges.
Vishay K101J15C0GF53H5H Automotive Ceramic Capacitor Specifications:
- Dielectric: COG/X7R/X9V
- Rated Voltage: 50 V, 100 V, 200 V
- Capacitance Range: 100 pF to 1,000,000 pF
- Temperature Range: -55°C to +200°C for max. 500 hours, -55°C to +175°C unlimited
- Dissipation Factor: Class 1: 0.1 %, Class 2: 2.5 %
- Insulation Resistance: 10 GΩ at rated voltage
- Lead Diameter: 0.5 mm or 0.6 mm
- Lead Configuration: Straight or kinked leads, lead spacing 2.5 mm or 5.0 mm
- Climatic Category: 55/125/21
- Construction: High reliability MLCC with wet build process
- Flame retardant epoxy coating: UL 94 V-0 rated
- Marking: Capacitance value and tolerance per EIA 198 standards
- Approval: AEC-Q200 qualified
Buy the Buy Vishay K101J15C0GF53H5H Part Number K101J15C0GF53H5H Online
Order the Vishay K101J15C0GF53H5H high-temperature ceramic capacitor online today. This robust MLCC offers reliable performance up to 200°C, perfect for automotive electronics, power modules, and demanding industrial environments. Featuring high voltage ratings, excellent insulation resistance, and RoHS compliance, it ensures stability and longevity in critical applications. With straightforward ordering, fast delivery, and quality assurance, you can trust Vishay’s precision-engineered components to meet your project needs efficiently and effectively.
Get Vishay K101J15C0GF53H5H today—designed for high-temperature reliability in automotive and industrial applications.
Frequently Asked Questions
Where can I buy Vishay K101J15C0GF53H5H?
You can click on the BUY or RFQ button to purchase K101J15C0GF53H5H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K101J15C0GF53H5H?
You can download the K101J15C0GF53H5H datasheet or visit the Vishay website for support.
Who is the manufacturer of K101J15C0GF53H5H?
Vishay
