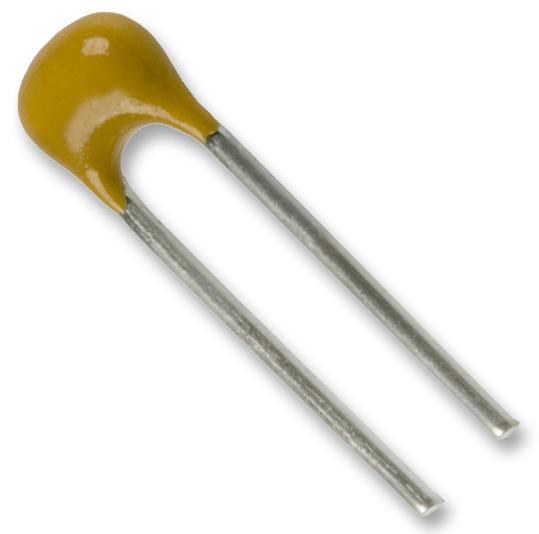

Vishay K104K10X7RF5UL2 Ceramic Capacitor
The Vishay K Series multilayer ceramic capacitor offers high capacitance in a small footprint, suitable for general-purpose applications such as temperature compensation, coupling, and decoupling. Constructed with Class 1, Class 2, and Class 3 dielectric materials including X7R, Y5V, and COg types, this capacitor features radial leads, optional straight or kinked configurations, and voltage ratings up to 500 Vdc. It is flame-retardant, coated with epoxy resin, and compliant with RoHS standards, ensuring high reliability in demanding environments.
Vishay K104K10X7RF5UL2 Ceramic Capacitor Specifications:
- Capacitance Range: 10 pF to 1,000,000 pF (1 µF)
- Voltage Ratings: 50 V, 100 V, 200 V, 500 V
- Dielectric Types: X7R, Y5V, Class 1 (COg)
- Lead Diameter: 0.5 mm
- Lead Style: Straight or kinked leads, spacing 2.5 mm or 5.0 mm
- Operating Temperature Range: -55°C to +125°C (COg, X7R), -30°C to +85°C (Y5V)
- Climatic Category: 55/125/21 (Class 1 & 2), 30/85/21 (Class 3)
- Dimensional Tolerance: ±5 %, ±10 %, ±20 %, +80 %/−20 %
- Flame Retardant Coating: Epoxy resin conforming to UL 94 V-0
- Test Voltage: 250 % rated voltage for 50/100 V, 150 % + rated voltage for 200 V, 130 % + rated voltage for 500 V
- Leakage Current/Insulation Resistance: according to specifications depending on voltage
- Marking: Capacitance value, tolerance, and voltage on case
- Compliance: RoHS, IEC 60384-9, EN 60058-1
Buy the Vishay Series K Capacitor: K104K10X7RF5UL2
Enhance your electronic assemblies with the high-reliability Vishay Series K ceramic capacitor. Designed for accurate temperature compensation, coupling, and decoupling, this small-sized component offers voltage ratings up to 500 V and capacitance from 10 pF to 1,000,000 pF. Equipped with radial leads available in straight or kinked styles, it features flame-retardant epoxy coating and meets RoHS compliance standards. Perfect for demanding environments requiring durability, stability, and precise capacitance, order online today for fast delivery and quality assurance.
Order your Vishay Series K104K10X7RF5UL2 ceramic capacitor today and give your electronics projects the reliable performance they deserve.
Frequently Asked Questions
Where can I buy Vishay K104K10X7RF5UL2?
You can click on the BUY or RFQ button to purchase K104K10X7RF5UL2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K104K10X7RF5UL2?
You can download the K104K10X7RF5UL2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K104K10X7RF5UL2?
Vishay
