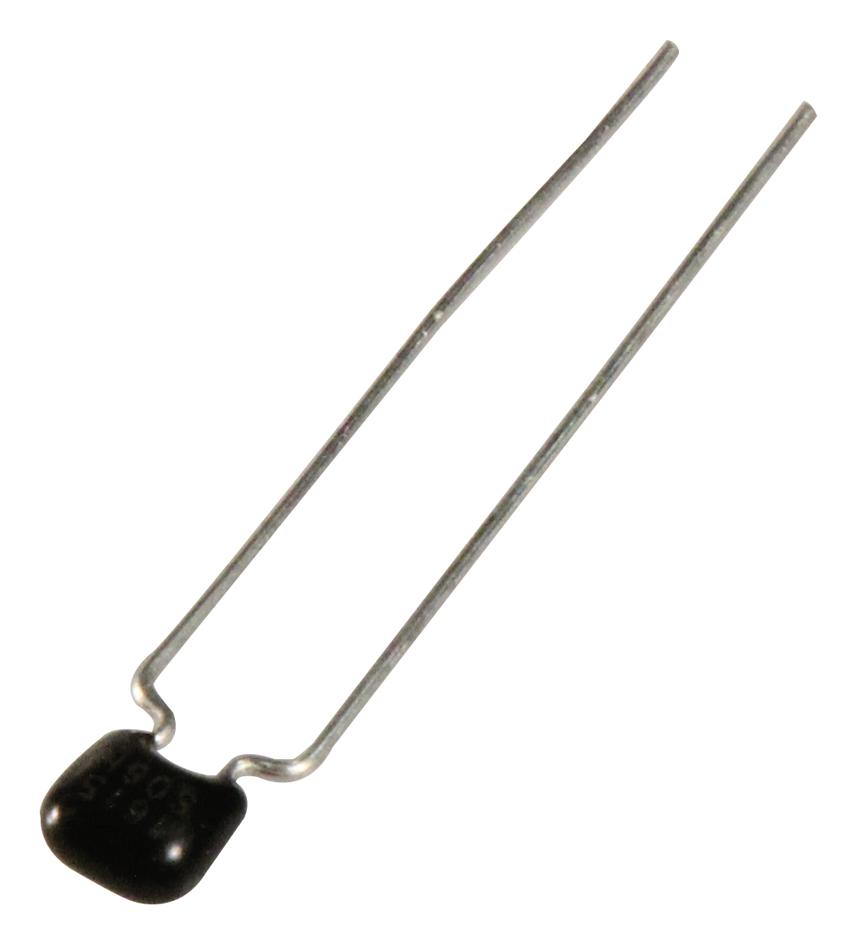

Vishay K104M15X7RF53H5 Multilayer Ceramic Capacitor
Radial leaded multilayer ceramic capacitor with high capacitance and small size, suitable for general purpose applications such as temperature compensation, coupling, and decoupling. Available in Class 1, Class 2, and Class 3 dielectric types, these capacitors feature reliable performance, flame retardant epoxy coating, and standard markings indicating capacitance and voltage. They are designed for a broad temperature range from -55°C to +125°C depending on dielectric type, with various sizes, voltages, and tolerances for diverse electronic and industrial applications, ensuring high reliability and consistent performance in demanding environments.
Vishay K104M15X7RF53H5 Multilayer Ceramic Capacitor Specifications:
- Dielectric Types: Class 1 (COG), Class 2 (X7R), Class 3 (YSV, Y5V)
- Capacitance Range: 10 pF to 1,000,000 pF (1 μF)
- Voltage Ratings: 50 V, 100 V, 200 V, 500 V
- Temperature Range: -55°C to +125°C (COG, X7R), -30°C to +85°C (Y5V)
- Operating Temperature: -55°C to +125°C, -30°C to +85°C depending on dielectric
- Physical Size: Diameter 3.6 mm to 20 mm, height varies including sizes 10, 15, 20 mm
- Leads: Radial, 0.5 mm diameter, straight or kinked, lead spacing 2.5 mm or 5.0 mm
- Marking: Capacitance value, tolerance (±5 %, ±10 %, ±20 %, +80/-20), voltage
- Compliance: RoHS, UL 94 V-0 flame retardant epoxy coating, IEC 60384-9, EN 60058-1 Climatic category
- Test Voltage: Up to 250% rated voltage depending on voltage class
- Insulation Resistance: ≥100 GΩ at 50 V, 10 GΩ at 200 V, within 2 minutes
- Dissipation Factor: Max 0.1% (Class 1, C > 30 pF), 2.5-5% (Class 2 and 3 at 1 kHz)
- Packaging: Tape on reel, ammo pack, bulk pack, with specified dimensions and quantities
Buy the Vishay Series K Capacitor: K104M15X7RF53H5
Purchase your Vishay Series K104M15X7RF53H5 ceramic capacitor online today and enjoy high reliability, small size design, and versatile voltage options suitable for numerous electronic applications. With fast shipping and secure checkout, get the components you need for temperature compensation, coupling, and decoupling tasks, ensuring your project stays on track with top-quality, precise capacitors made for demanding environments.
Order your Vishay Series K Capacitor today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay K104M15X7RF53H5?
You can click on the BUY or RFQ button to purchase K104M15X7RF53H5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K104M15X7RF53H5?
You can download the K104M15X7RF53H5 datasheet or visit the Vishay website for support.
Who is the manufacturer of K104M15X7RF53H5?
Vishay
