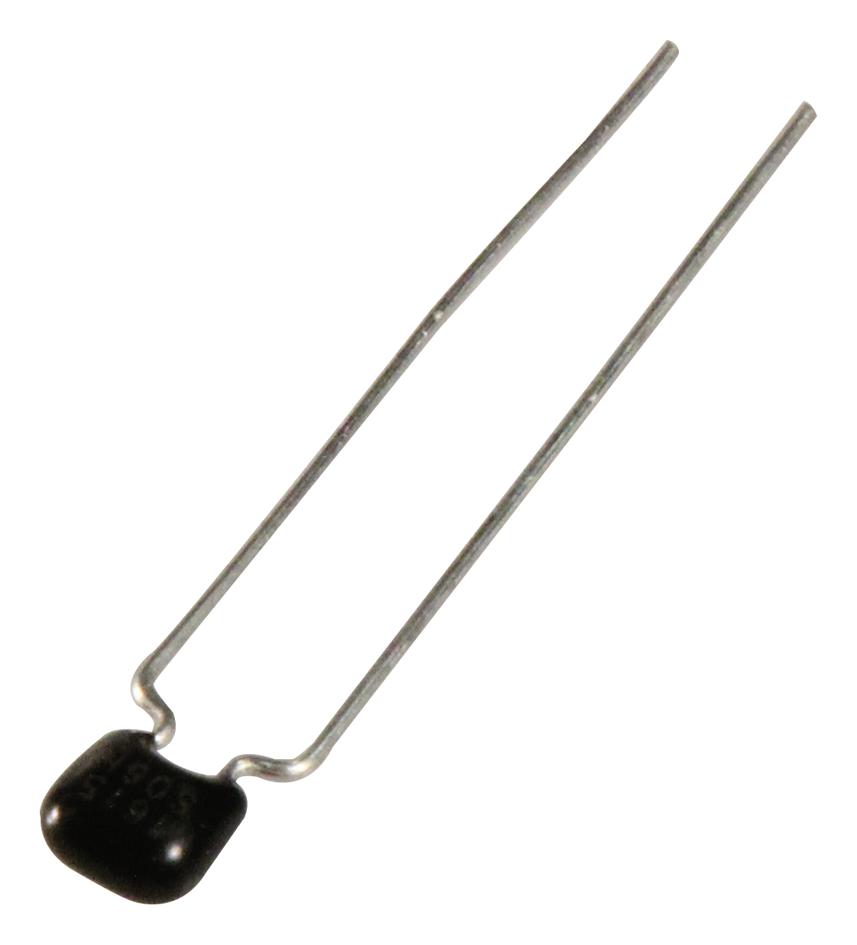

Vishay K105K20X7RF5TH5 Ceramic Capacitor
This high-demand ceramic capacitor features X7R dielectric with 50 V to 500 V ratings, available in various sizes including smaller and normal options. Its high reliability and compact size make it suitable for temperature compensation, coupling, and decoupling applications. The capacitors have radial leads, with options for straight or kinked styles, and are coated with flame-retardant epoxy resin. They meet RoHS compliance, with a temperature range from -55°C to +125°C and climatic category 55/125/21, ensuring durability in diverse environmental conditions. The product is ideal for general-purpose use in electronic circuits requiring stable capacitance and voltage performance.
Vishay K105K20X7RF5TH5 Ceramic Capacitor Specifications:
- Dielectric: X7R
- Voltage Ratings: 50V, 100V, 200V, 500V
- Capacitance Range: 10 pF to 1,000,000 pF
- Size Options: Smaller and normal sizes with radial leads
- Lead Style: Straight or kinked, 0.5 mm diameter
- Coating: Flame-retardant epoxy resin (UL 94 V-0)
- Temperature Range: -55°C to +125°C (X7R)
- Climatic Category: 55/125/21
- RoHS Compliant
- Maximum Lead Length: 30 mm ± 5 mm
- Packaging: Reel, ammo, bulk
- Marking: Capacitance value and tolerance per EIA 198
- Test Voltage: Up to 250% of rated voltage
- Insulation Resistance: >10 GΩ at rated voltage
- Dissipation Factor: Max 0.1% when C > 30 pF
Buy the Vishay 105K20X7RF5 – Reliable Ceramic Capacitor for Industrial Applications
Discover the high-performance Vishay ceramic capacitor, ideal for temperature compensation, decoupling, and coupling in electronic circuits. Featuring X7R dielectric with voltage ratings up to 500V and capacitance values from 10 pF to 1,000,000 pF, its compact size and reliable design make it perfect for industrial and general-purpose applications. Suitable for demanding environments, it boasts RoHS compliance, high thermal stability, and robust coatings. Purchase online now to secure rapid delivery and integrate this dependable component into your electronic assemblies with confidence and ease.
Order your Vishay Series105K20X7RF5 high-reliability ceramic capacitor today and ensure dependable performance in your electronic projects.
