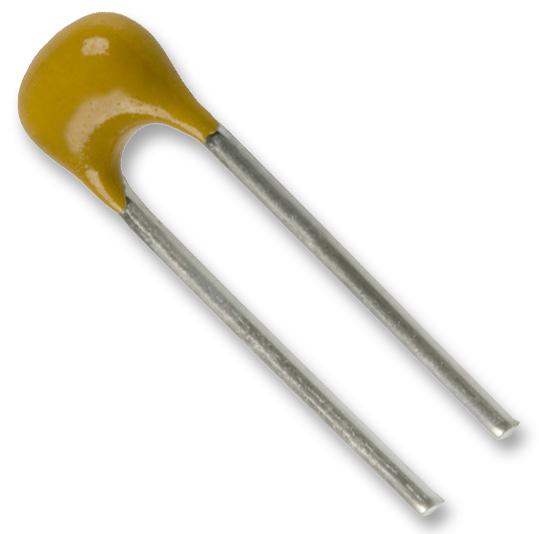

Vishay K223K15X7RF5UL2 Ceramic Capacitor
Vishay BCcomponents K223K15X7RF5UL2 is a radial leaded multilayer ceramic capacitor designed for general-purpose applications. It features high capacitance in a compact size, reliable performance, and comes with straight or kinked leads with a spacing of 2.5 mm or 5.0 mm. Suitable for temperature compensation, coupling, and decoupling, this capacitor offers rated voltages up to 500 V, with explicit marking, and is built with flame-retardant epoxy coating. Its robust design ensures high reliability in varied industrial environments, complying with RoHS standards and multiple international approvals.
Vishay K223K15X7RF5UL2 Ceramic Capacitor Specifications:
- Capacitance: 220000 pF (220 nF), tolerance: +20%/-20%, marking indicates capacitance value and tolerance
- Voltage Ratings: 50 V, 100 V, 200 V, 500 V, rated voltages: 50 Vp¢, 100 Vp¢, 200 Vp¢, 500 V
- Temperature Range: -55°C to +125°C (X7R dielectric), -30°C to +85°C (Y5V dielectric)
- Dielectric Material: X7R, Y5V, high reliability multilayer ceramic dielectric
- Lead Style: Straight or kinked leads with a lead spacing of 2.5 mm or 5.0 mm, lead diameter 0.5 mm
- Dimensions: sizes include codes 10, 15, 20, 22, 27, 33, 39, 47, 56, 68, 82, 100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1000, 1200, 1500, 1800, 2200, 2700, 3300, 3900, 4700, 5600, 6800, 8200, 10000, 12000, 15000, 18000, 22000, 27000, 33000, 39000, 47000, 56000, 68000, 82000, 100000, 120000, 150000, 180000, 220000, 330000, 470000, 560000, 680000, 820000, 1000000 pF
- Climatic Category: 55/125/21 for Class 1 and 2, 30/85/21 for Class 3
- Compliance: RoHS, IEC 60384-9, EIA 198, UL 94 V-0 flame retardant epoxy coating
- Insulation Resistance: Min 10 GΩ at rated voltage within 2 minutes of charging
- Dissipation Factor: Max 0.2 to 5% depending on class and capacitance
- Test Voltages: Up to 250% or 150% of rated voltage depending on voltage class
- Material: Tinned copper-clad steel lead wires, epoxy coating
Buy the Vishay K223K15X7RF5UL2 – Reliable Ceramic Capacitor for Industrial Applications
Purchase the Vishay ceramic capacitor seriesK223K15X7RF5UL2 online today to benefit from high capacitance, reliable performance, and quick delivery. Its robust design and flame-retardant epoxy coating make it suitable for temperature compensation, coupling, and decoupling in industrial settings. With rated voltages up to 500 V, compact sizes, and easy lead configurations, this capacitor guarantees high performance and durability. Shop now to add a dependable component to your electronic assemblies with fast online ordering and excellent customer support.
Order your Vishay SeriesK223K15X7RF5UL2 ceramic capacitor today and ensure high reliability and compact design for your industrial projects.
Frequently Asked Questions
Where can I buy Vishay K223K15X7RF5UL2?
You can click on the BUY or RFQ button to purchase K223K15X7RF5UL2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K223K15X7RF5UL2?
You can download the K223K15X7RF5UL2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K223K15X7RF5UL2?
Vishay
