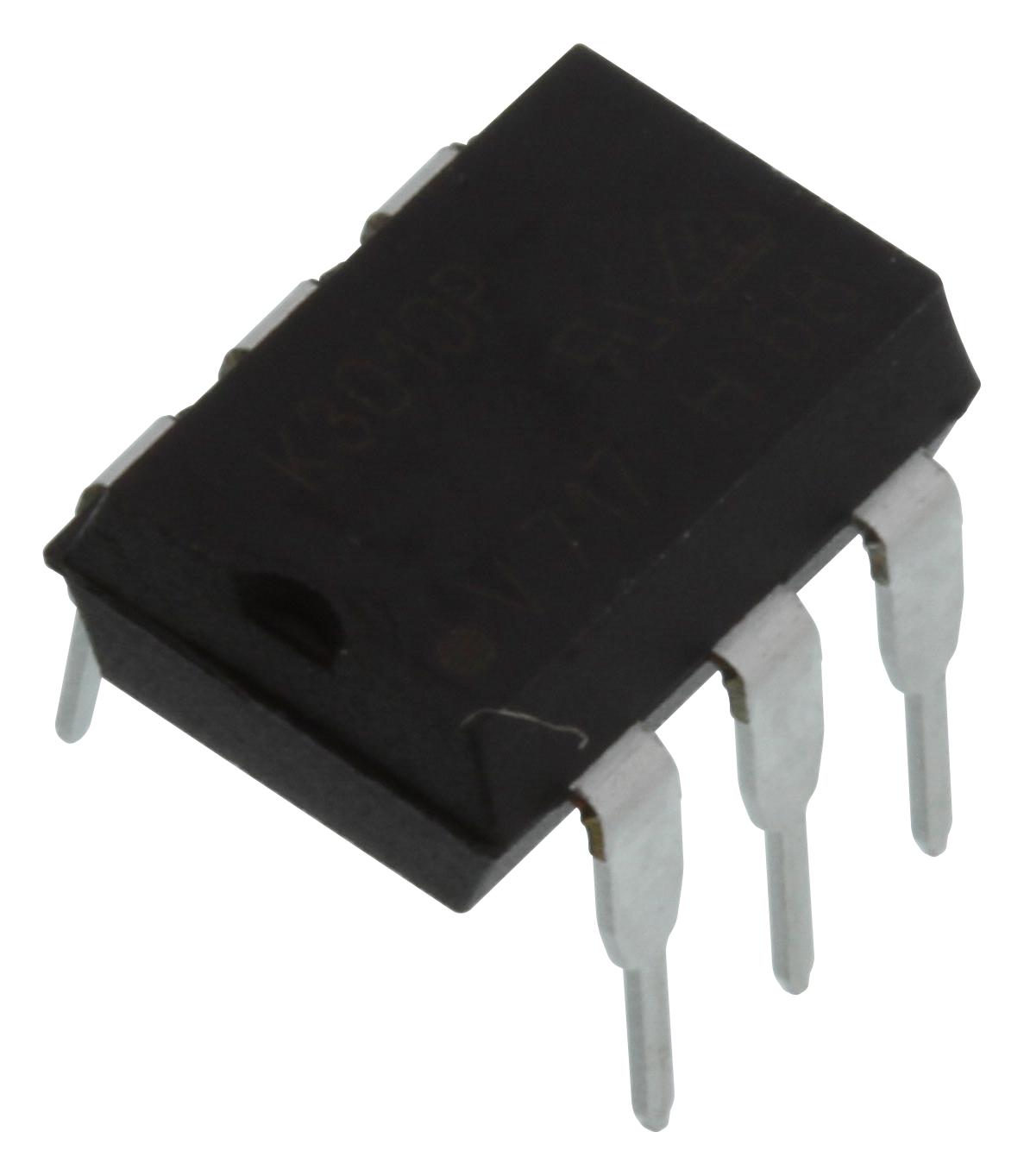

Vishay K3010P Optocoupler Device
The K3010P series consists of optocouplers with a phototransistor output, offering high safety and electrical isolation. These SMD and DIP-6 packaged devices feature a gallium arsenide infrared-emitting diode, suitable for safe protective separation in circuits for appliances like monitors, air conditioners, line switches, and solid-state relays. With UL1577 and other safety approvals, they provide high transient overvoltage protection, isolation test voltage of 5300 Vms, and minimal coupling capacity of 0.2 pF, ensuring reliable performance and safety compliance in various industrial applications.
Vishay K3010P Optocoupler Device Specifications:
- Isolation test voltage: 5300 Vms
- Peak transient overvoltage: 8000 Vpeak
- Input reverse voltage: 5 V
- Forward current: 80 mA
- Power dissipation: 100 mW (input), 300 mW (output)
- Output voltage: 250 V
- Peak surge current: 15 A
- Isolation resistance: 10% at 25°C, 102 Q at 25°C
- Temperature range: -55°C to +150°C (storage), -55°C to +100°C (ambient)
- Soldering temperature: 260°C for 10s at 2mm from case
- Safety certifications: UL1577, BS EN60065, IEC 60065, DIN EN 60747-5-5
- Dimensions: DIP-6, 7.62 mm lead spacing, SMD option available
- Certifications include UL, cUL, BSI, CQC
- Peak insulation voltage: 890 Vpeak
- Partial discharge test voltage: 1669 Vpeak
- Pollution degree: 2
- Creepage and clearance distances: 7-8mm
Buy the VISHAY K3010P – Reliable Optocoupler for Industrial Applications
Experience the high safety standards and reliable electrical isolation of the Vishay K3010P optocoupler. Designed for industrial use, it ensures protection against electrical shocks, offers high transient voltage withstand, and features UL certification for safety compliance. Suitable for industrial control systems, monitors, and relays, this optocoupler guarantees durability under demanding conditions. Buy Vishay K3010P online to ensure your circuit's safety and performance with a trusted, high-quality component that meets international safety standards and provides lasting operational reliability.
Get Vishay K3010P today—built for precision, high-voltage insulation, and long-lasting reliability in industrial circuits.
