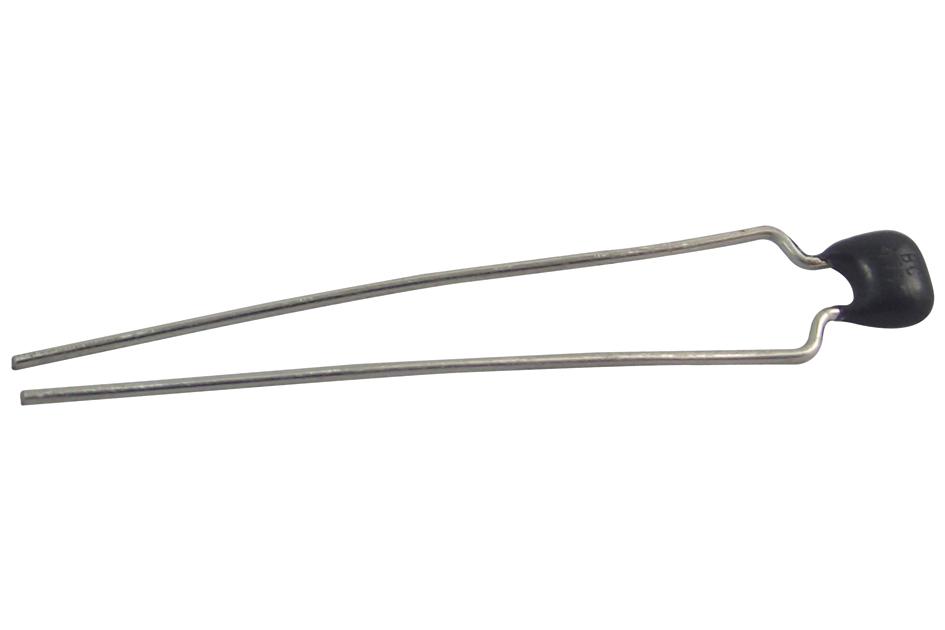

Vishay K471J15C0GK53H5H Automotive Ceramic Capacitor
This high-temperature multilayer ceramic capacitor is designed for automotive applications, with voltages up to 200 V and temperatures reaching 200°C for limited periods. It features a high reliability wet build process, RoHS compliance, and is available in class 1 and class 2 dielectric types, including X7R and XOU. Suitable for harsh environments, it offers options in straight or kinked leads, small sizes, and flame-retardant epoxy coating, making it ideal for demanding automotive electronic systems and other high-temperature applications.
Vishay K471J15C0GK53H5H Automotive Ceramic Capacitor Specifications:
- Voltage: 50 V, 100 V, 200 V
- Capacitance: 100 pF to 1,000,000 pF (1 μF)
- Temperature Range: -55°C to +175°C (unlimited), up to +200°C for 500 hours
- Dielectric: COG (Class 1), XOU (Class 2)
- Capacitance Tolerance: +5 %, +10 %, +20 %
- Dissipation Factor: Max 0.1 % (Class 1), Max 2.5 % (Class 2)
- Insulation Resistance: ≥10 GΩ or ≥1000 MΩ (at rated voltage within 2 min)
- Lead Diameter: 0.5 mm or 0.6 mm
- Lead Spacing: 2.5 mm or 5.0 mm
- Lead Length: 30 mm ± 5 mm
- Coating: Flame-retardant epoxy resin, UL 94 V-0 compliance
- Climatic Category: 55/125/21
- Marking: Capacitance value and tolerance conforming with EIA 198
- Certifications: AEC-Q200, IEC 60384-8, IEC 60384-9
Buy the Vishay Series KH Ceramic Capacitor: K471J15C0GK53H
Secure your Vishay K471J15C0GK53H automotive ceramic capacitor today. Designed for high temperatures up to 200°C and voltages up to 200 V, ensuring exceptional reliability in automotive electronics. Its multilayer construction and RoHS compliance make it perfect for demanding environments, offering versatile lead options and flame-retardant coating. Order now online and benefit from fast delivery, high quality standards, and trusted performance. Elevate your projects with this durable, high-performance ceramic capacitor.
Buy Vishay K471J15C0GK53H now and experience unmatched reliability and performance in high-temperature automotive applications.
Frequently Asked Questions
Where can I buy Vishay K471J15C0GK53H5H?
You can click on the BUY or RFQ button to purchase K471J15C0GK53H5H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K471J15C0GK53H5H?
You can download the K471J15C0GK53H5H datasheet or visit the Vishay website for support.
Who is the manufacturer of K471J15C0GK53H5H?
Vishay
