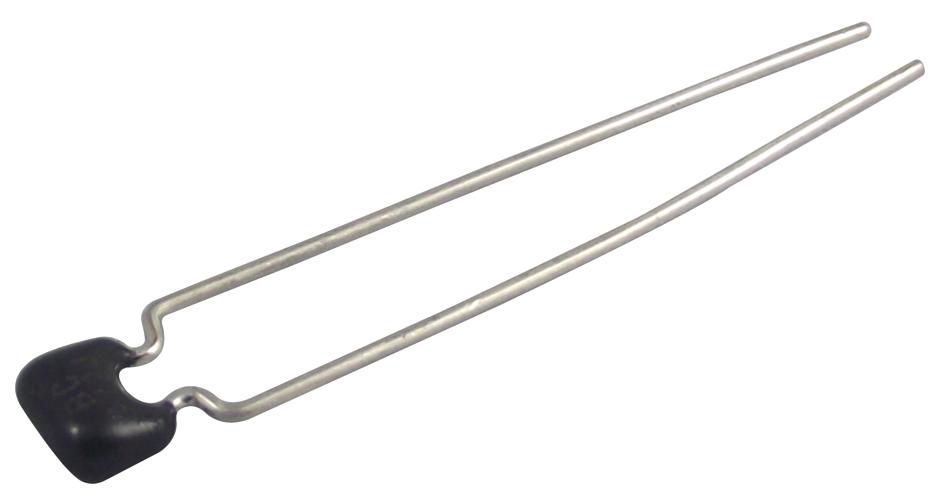

Vishay K472J20C0GF63H5H Automotive Ceramic Capacitor
High-temperature automotive multilayer ceramic capacitor engineered for reliability and durability up to 200°C. Suitable for critical applications with RoHS compliance, featuring a radial leaded design, flame-retardant epoxy coating, and available in various capacitance and voltage ratings including 50 V, 100 V, and 200 V. Ideal for use in automotive environments where stability over a wide temperature range from -55°C to +200°C for up to 500 hours is essential, with full compliance to industry standards such as AEC-Q200 and IEC 60384-8 & 9.
Vishay K472J20C0GF63H5H Automotive Ceramic Capacitor Specifications:
- Ceramic Dielectric: COG or XOU
- Voltage Ratings: 50 V, 100 V, 200 V
- Capacitance Range: 100 pF to 12,000,000 pF (12 μF)
- Tolerance: +5 %, +10 %, +20 %
- Operating Temperature: -55°C to +200°C for up to 500 hours, unlimited at 175°C
- Capacitance Change vs. Temperature: X7R (+15%/-15%), XOU (+22%/-56%)
- Dissipation Factor: Max. 0.1 % (Class 1), Max. 2.5 % (Class 2)
- Insulation Resistance: 10 GΩ or 100 MΩ, whichever is less, at rated voltage within 2 min
- Lead Diameter: 0.5 mm or 0.6 mm
- Lead Length: 30 mm + 5 mm (standard bulk packing)
- Lead Style: Straight or crimped, with lead spacing of 2.5 mm or 5.0 mm
- Coating: Flame-retardant epoxy resin (UL 94 V-0)
- Climatic Category: 55/125/21
- Certifications: EIA 198, IEC 60384-8 & 9, AEC-Q200
Buy the Vishay Series K Series Automotive Capacitor: K472J20C0GF63H
Purchase the Vishay automotive ceramic capacitor K472J20C0GF63H online today for high-temperature automotive applications. Designed for reliability up to 200°C, it features radial leads, RoHS compliance, and a flame-retardant epoxy coating for enhanced durability. Suitable for critical automotive systems, this capacitor offers a wide capacitance range from 100 pF to 12 μF, with high insulation resistance and low dissipation factor. Order now to ensure your vehicle electronics operate seamlessly in demanding environments with trusted quality and rapid delivery.
Order your Vishay Series K472J20C0GF63H automotive ceramic capacitor today and ensure your projects meet the highest standards of reliability and temperature resilience.
Frequently Asked Questions
Where can I buy Vishay K472J20C0GF63H5H?
You can click on the BUY or RFQ button to purchase K472J20C0GF63H5H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K472J20C0GF63H5H?
You can download the K472J20C0GF63H5H datasheet or visit the Vishay website for support.
Who is the manufacturer of K472J20C0GF63H5H?
Vishay
