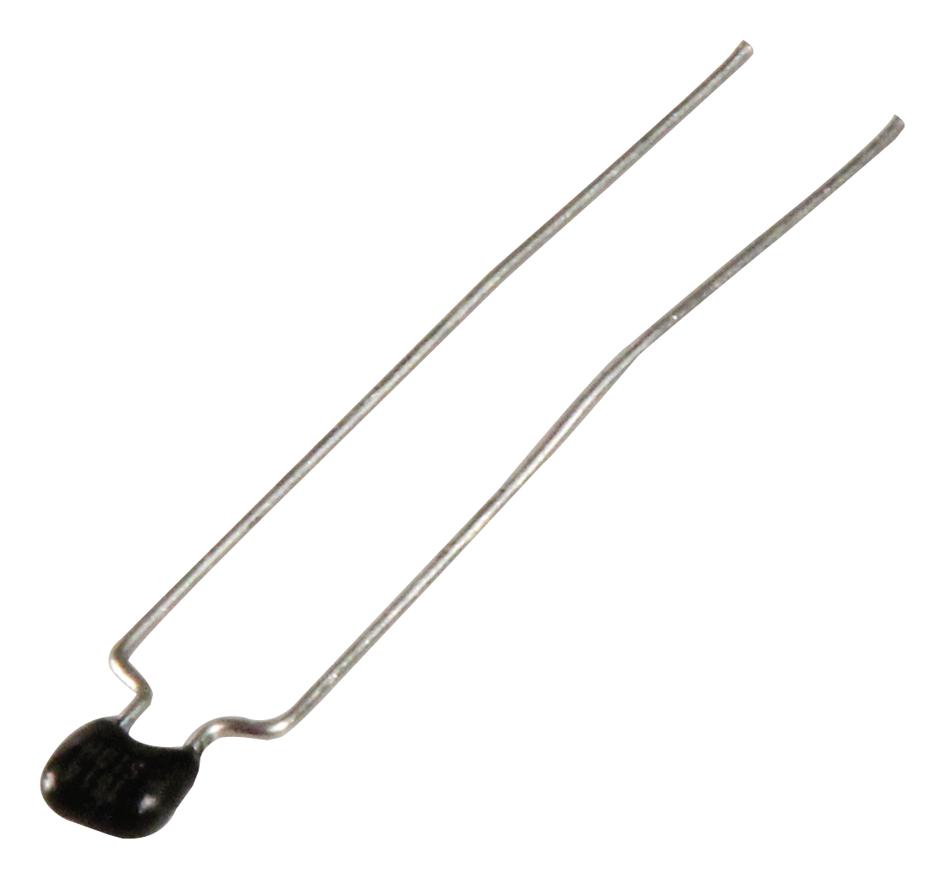

Vishay K473K15X0UF53H5H Automotive Ceramic Capacitor
The Vishay K473K15X0UF53H5H is a high-reliability multilayer ceramic capacitor designed for automotive applications, operating up to 200°C for limited durations. It features a COG dielectric with a voltage rating of 50V, 100V, or 200V, and a capacitance range from 100 pF to 1,000,000 pF. Suitable for high-temperature, small-size, radial mounting, with RoHS compliance, flame-retardant epoxy coating, and available in straight or kinked leads, ideal for demanding automotive environments.
Vishay K473K15X0UF53H5H Automotive Ceramic Capacitor Specifications:
- Voltage (Voc): 50 V, 100 V, 200 V
- Capacitance Range: 100 pF to 1,000,000 pF
- Dielectric: COG (X7R, X9Q, XOU)
- Operating Temperature: -55°C to +175°C (unlimited), up to 200°C for 500 hrs
- Dissipation Factor: Max. 0.1% (Class 1), Max. 2.5% (Class 2)
- Insulation Resistance: ≥10 GΩ at rated voltage within 2 min
- Lead Diameter: 0.5 mm or 0.6 mm
- Size Codes: 15 (diameter 3.0-3.8 mm), 20 (4.3-5.4 mm)
- Lead Spacing: 2.5 mm or 5.0 mm
- Flame-retardant epoxy coating in accordance with UL 94 V-0
- Climatic Category: 55/125/21
- Compliance: AEC-Q200, IEC 60384-8, IEC 60384-9
- Marking: Capacitance value and tolerance per EIA 198 standards
Buy the Vishay Series KH Ceramic Capacitor: K473K15X0UF53H5H
Order the Vishay KH ceramic capacitor online now to ensure reliable performance in automotive applications. With high operating temperature up to 200°C for limited time and robust construction, this capacitor meets strict industry standards. Its small size, radial lead design, RoHS compliance, and flame-retardant epoxy coating make it ideal for demanding environments. Fast delivery, secure checkout, and technical support available when you purchase this high-quality multilayer ceramic capacitor today—engineered for durability and precision in automotive electronics.
Get Vishay KH ceramic capacitor today—built for automotive reliability and high-temperature endurance.
Frequently Asked Questions
Where can I buy Vishay K473K15X0UF53H5H?
You can click on the BUY or RFQ button to purchase K473K15X0UF53H5H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K473K15X0UF53H5H?
You can download the K473K15X0UF53H5H datasheet or visit the Vishay website for support.
Who is the manufacturer of K473K15X0UF53H5H?
Vishay
