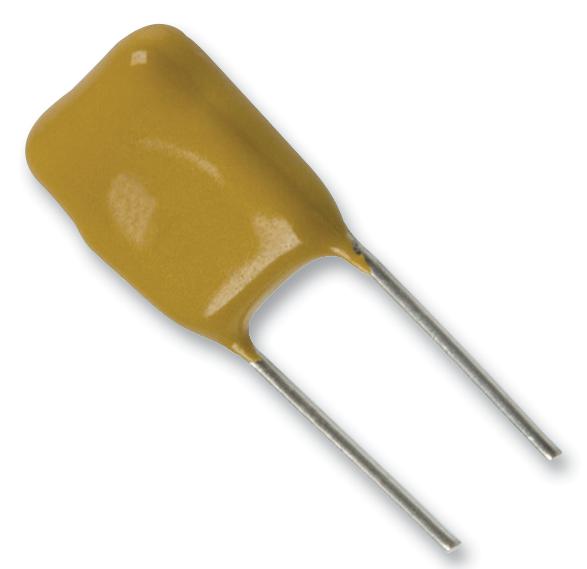

Vishay K561J15C0GF53L2 Multilayer Ceramic Capacitor
These are general-purpose multilayer ceramic capacitors (MLCC) with high capacitance in small sizes, suitable for temperature compensation, coupling, and decoupling applications. Available in Class 1, Class 2, and Class 3 dielectrics like C0G, X7R, Y5V, with voltage ratings up to 500 V. They feature radial leads with different spacings, and are flame-retardant, epoxy-coated. Variants include different sizes, voltage, and tolerance levels, making them versatile for various electronic circuit applications requiring reliable high-capacitance components.
Vishay K561J15C0GF53L2 Multilayer Ceramic Capacitor Specifications:
- Capacitance range: 10 pF to 1,000,000 pF (1 μF)
- Voltage ratings: 50 V, 100 V, 200 V, 500 V
- Dielectrics: C0G (Class 1), X7R (Class 2), Y5V (Class 3)
- Temperature range: -55°C to +125°C (C0G, X7R); -30°C to +85°C (Y5V)
- Tolerance: ±5%, ±10%, ±20%, +80%/-20%
- Lead spacing: 2.5mm or 5.0mm, straight or kinked leads
- Dimensions vary with size code, max. outer diameter 355.6mm
- Flame retardant epoxy coating, UL 94 V-0 compliant
- Seating height varies with lead style, maximum height 32mm
- Climatic category: 55/125/21 (Class 1 & 2), 30/85/21 (Class 3)
- Insulation resistance: ≥ 10 GΩ at rated voltage within 2 minutes
- Operating temperature: -55°C to +125°C (X7R), -30°C to +85°C (Y5V)
Buy the Buy Vishay K Series Radial Leaded Multilayer Ceramic Capacitors Part Number K561J15C0GF53L2 Online
Purchase Vishay K561J15C0GF53L2 online today and benefit from high reliability, compact design, and versatile capacitance options suitable for a wide range of electronic applications. Our high-quality MLCCs feature durable radial leads, flame-retardant epoxy coating, and precise tolerances, making it effortless for engineers and technicians to integrate these components into their designs. Enjoy fast shipping and excellent customer support to meet your project needs. Optimize your circuits with Vishay's proven ceramic technology now.
Buy Vishay K561J15C0GF53L2 now and experience unmatched reliability and performance in high-voltage, general-purpose ceramic capacitors.
Frequently Asked Questions
Where can I buy Vishay K561J15C0GF53L2?
You can click on the BUY or RFQ button to purchase K561J15C0GF53L2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K561J15C0GF53L2?
You can download the K561J15C0GF53L2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K561J15C0GF53L2?
Vishay
