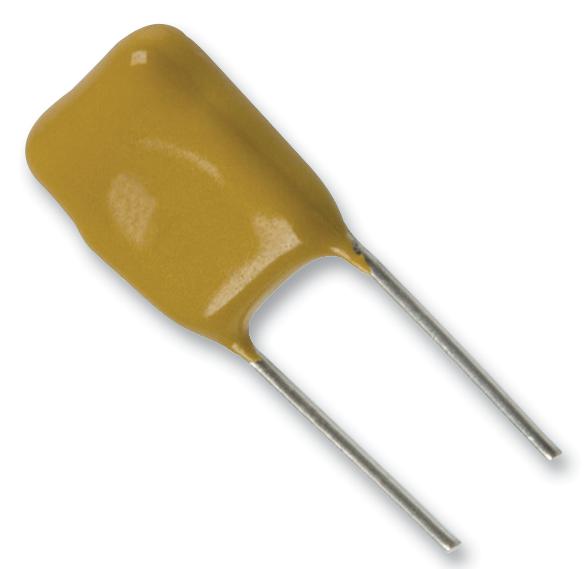

Vishay K680J15C0GF5TL2 Ceramic Capacitor
This is a high-reliability, multilayer ceramic capacitor series designed for general purpose applications such as temperature compensation, coupling, and decoupling. Available in Class 1, Class 2, and Class 3 dielectric types, it features small size, high capacitance, and various lead styles including crimp and straight leads. The capacitors operate within a temperature range of -55°C to +125°C (X7R) and -30°C to +85°C (Y5V), with voltage ratings up to 500 Vdc and capacitance values from 10 pF to 1,000,000 pF. They are flame retardant, UL compliant, and suitable for surface-mount or radial mounting in electronic circuits.
Vishay K680J15C0GF5TL2 Ceramic Capacitor Specifications:
- Dielectric: X7R, Y5V
- Capacitance Range: 10 pF to 1,000,000 pF
- Voltage Ratings: 50 Vp¢, 100 Vp¢, 200 Vp¢, 500 Vdc
- Operating Temperature Range: -55°C to +125°C (X7R), -30°C to +85°C (Y5V)
- Body Size: Small and normal sizes available
- Lead Styles: Straight, kinked, crimped leads with 2.5 mm or 5.0 mm spacing
- Lead Diameter: 0.5 mm
- Material: Tinned copper-clad steel wire, flame retardant epoxy coating
- Climatic Category: 55/125/21 for classes 1 & 2, 30/85/21 for class 3
- Standards: IEC 60384-9, EIA 198
- Marking: Capacitance, tolerance, voltage on the body; tolerance codes J=5%, K=10%, M=20%, Z=+80/-20%
- Packaging: Reels, bulk, and ammo packs with detailed dimensions and quantities
- Insulation Resistance: ≥100 GΩ at 50 Vp¢ and 100 Vp¢, and ≥10 GΩ at 200 Vp¢ and 500 Vp¢
- Dissipation Factor: Max 0.1% (Class 1), 2.5–5% (Classes 2 & 3) at 1 MHz/1 kHz
Buy the Buy Vishay K Series Part Number K680J15C0GF5TL2 Online
Order Vishay K680J15C0GF5TL2 multilayer ceramic capacitor online today to ensure reliable performance in high-frequency, temperature-sensitive applications. Designed for excellent temperature stability, high capacitance, and flame retardant coating, it is suitable for diverse electronic circuits requiring compact size and high reliability. With multi-voltage options up to 500 Vdc, these capacitors are ideal for temperature compensation, coupling, and decoupling. Buy now to benefit from rapid delivery, quality assurance, and compatibility with your design specifications designed for robust electronic systems.
Get Vishay K680J15C0GF5TL2 today—built for precise electronic filtering and long-lasting reliability in your circuits.
Frequently Asked Questions
Where can I buy Vishay K680J15C0GF5TL2?
You can click on the BUY or RFQ button to purchase K680J15C0GF5TL2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K680J15C0GF5TL2?
You can download the K680J15C0GF5TL2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K680J15C0GF5TL2?
Vishay
