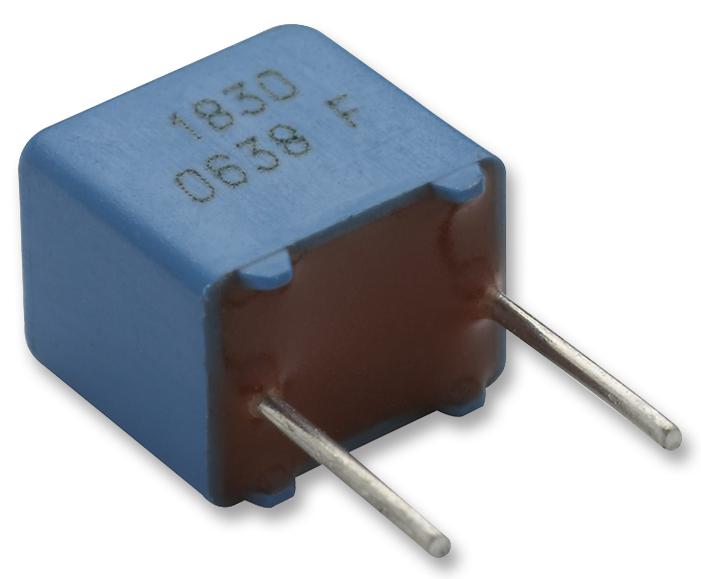

Vishay KP1830133631 High-frequency Film Capacitor
Reliable high-frequency film foil capacitor designed for oscillators, timing circuits, and LC/RC filters. Encased in flame-retardant plastic, it features polypropylene dielectric, tin foil electrodes, and is rated for voltages up to 630 V DC and 250 V AC. With a maximum temperature of 100°C, it offers various capacitance tolerances and configurations with leads suitable for printed-circuit board mounting. Its rugged construction ensures durability in demanding electronic applications, making it ideal for digital and analog IC coupling and high-frequency filtering tasks.
Vishay KP1830133631 High-frequency Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Tin foil
- Construction: Mono construction
- Rated DC Voltages: 63 V, 250 V, 630 V
- Rated AC Voltages: 40 V, 160 V, 250 V
- Capacitance Range: 100 pF to 0.022 uF
- Capacitance Tolerance: ±10%, +5%, +25%, +2%, +1%
- Maximum Application Temperature: 100 °C
- Feature: 5 mm lead pitch, supplied loose or in tape/reel packaging
- Encapsulation: Plastic case, epoxy resin sealed, flame retardant UL-94 V-0
- Climatic Testing: 55/100/56 IEC 60068-1
- Marking: C-value; tolerance; rated voltage; sub-class; dielectric material; manufacturer info
Buy the Vishay KP1830 – Reliable Capacitors for Industrial Applications
Purchase the Vishay KP1830 high-frequency film foil capacitor online today to ensure reliable performance in oscillator, filter, and digital circuit applications. Featuring polypropylene dielectric and robust encapsulation, this capacitor offers rated voltages up to 630 V DC and 250 V AC, with a maximum temperature of 100°C. Delivered with multiple capacitance tolerances, it is ideal for high-frequency filtering and IC coupling in both digital and analog environments. Order now for fast delivery and keep your projects running smoothly with high-quality, tested components.
Order your Vishay KP1830 high-frequency film foil capacitor today and enhance your electronic projects with dependable performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy Vishay KP1830133631?
You can click on the BUY or RFQ button to purchase KP1830133631 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part KP1830133631?
You can download the KP1830133631 datasheet or visit the Vishay website for support.
Who is the manufacturer of KP1830133631?
Vishay
