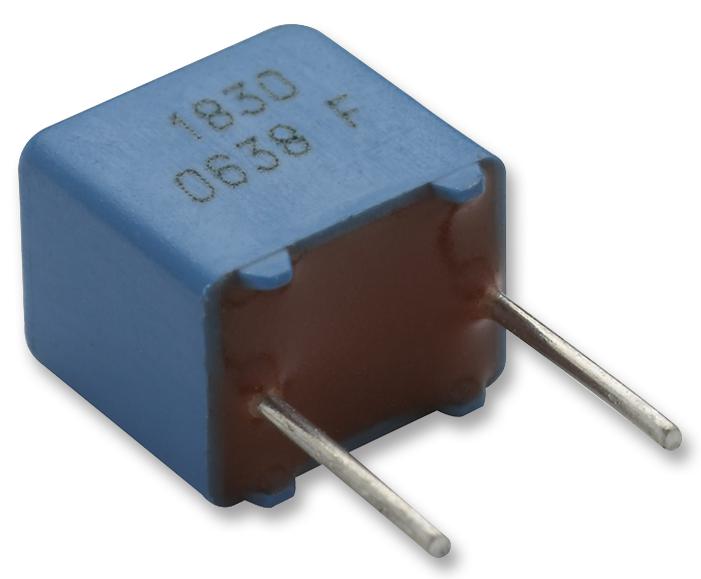

Vishay KP1830215631 Film foil capacitor
Vishay Roederstein KP 1830 radial film foil capacitors are designed for high-frequency applications including oscillators, LC/RC filters, and digital and analog IC coupling. Encased in flame-retardant epoxy resin, they feature polypropylene dielectric, tin foil electrodes, and a plastic case. With voltages up to 630 VDC and capacitances from 100 pF to 0.022 µF, they withstand temperatures up to 100°C, comply with IEC standards, and are suitable for automatic PCB mounting, vibration, shock, and climatic durability testing, making them ideal for precise, reliable electronic circuit use.
Vishay KP1830215631 Film foil capacitor Specifications:
- Capacitance range: 100 pF to 0.022 µF
- Rated DC voltages: 63 V, 250 V, 630 V
- Rated AC voltages: 40 V, 160 V, 250 V
- Temperature range: -55°C to +105°C
- Maximum application temperature: 100°C
- Dielectric: Polypropylene film
- Electrodes: Tin foil
- Construction: Mono construction
- Encapsulation: Plastic case, epoxy resin sealed, flame retardant UL-94 V-0
- Lead pitch: 5 mm
- Compliance: IEC 60384-13
- Climatic testing: 55/100/56 class per IEC 60068-1
Buy the Vishay KP 1830 – Reliable AC and Pulse Film Capacitors for Industrial Applications
Enhance your electronic projects with Vishay KP 1830 film foil capacitors, offering high reliability at voltages up to 630 VDC, low impedance, and precise performance. Designed for high-frequency applications, these capacitors feature polypropylene dielectric and tin foil electrodes, ensuring stable operation in oscillator, filter, and IC coupling circuits. Encased in flame-retardant epoxy, they withstand harsh environments, vibration, shock, and temperature variations up to 100°C. Easily mounted on PCBs, they meet IEC standards and offer excellent thermal and climatic durability for professional and industrial use.
Order your Vishay Series KP 1830 high-frequency film foil capacitors today and enhance the reliability of your digital, analog, and filter circuits with proven quality.
