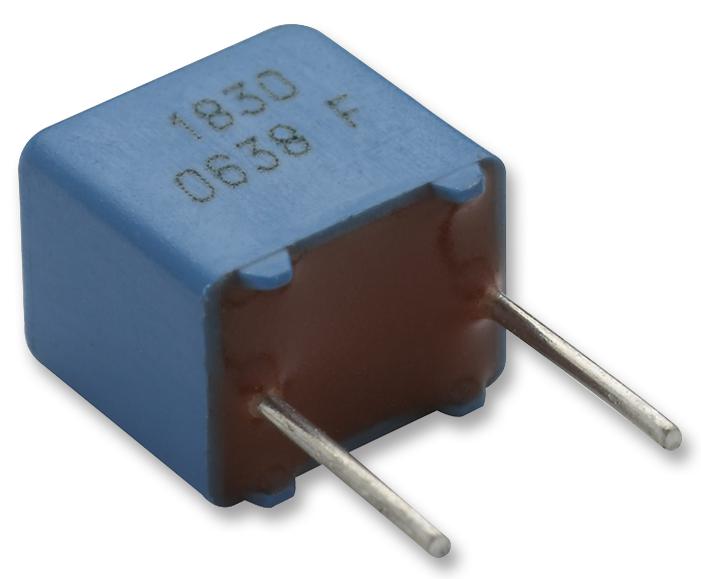

Vishay KP1830322061 High-Frequency Film Capacitor
Vishay Roederstein KP 1830 series AC and pulse film foil capacitors are designed for high-frequency applications such as oscillators, LC/RC filters, and digital/analog IC coupling. These radial potted capacitors feature polypropylene film dielectric and tin foil electrodes, housed in flame-retardant epoxy resin sealed plastic cases. Rated for voltages up to 630 V DC and 250 V AC, they are suitable for periods up to 100°C maximum temperature, with a capacitance range from 100 pF to 0.022 μF, and feature various tolerance levels. Their construction ensures compliance with IEC 60384-13 standards, robust electrical characteristics, and reliable performance in vibration and climatic tests.
Vishay KP1830322061 High-Frequency Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Tin foil
- Construction: Mono construction, plastic case with epoxy resin seal, UL class 94 V-0
- Rated DC Voltages: 63 V, 250 V, 630 V
- Rated AC Voltages: 40 V, 160 V, 250 V
- Capacitance Range: 100 pF to 0.022 μF
- Capacitance Tolerance: ±10%, +5%, +25%, +2%, +1%
- Maximum Application Temperature: 100 °C
- Climatic Testing Class: 55/100/56 IEC 60068-1
- Lead Pitch: 5 mm
- Dimensions vary based on capacitance and voltage, with typical height and length specified in catalog tables
- Winding and lead material: Tinned wire
- Compliance: IEC 60384-13, RoHS, UL class 94 V-0
- Features include high pulse withstand, low loss angle, and vibration resistance, suitable for high-frequency and pulse applications
Buy the Vishay Series KP 1830 AC and Pulse Capacitors: KP1830322061
Order Vishay KP 1830 AC and pulse film foil capacitors online today for superior performance in oscillators, filters, and digital circuits. These reliable, IEC-compliant capacitors feature polypropylene dielectric and tin foil electrodes, rated up to 630 volts DC and 250 volts AC. Compact and robust, they withstand vibration, climatic variations, and pulse overloads, making them ideal for high-frequency applications. With various capacitance tolerance options and a maximum temperature of 100°C, they ensure your electronic projects and industrial circuits operate efficiently and dependably. Purchase online now for fast delivery and competitive pricing.
Get Vishay KP 1830 capacitors today—built for high-frequency accuracy, durability, and reliable circuit performance.
Frequently Asked Questions
Where can I buy Vishay KP1830322061?
You can click on the BUY or RFQ button to purchase KP1830322061 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part KP1830322061?
You can download the KP1830322061 datasheet or visit the Vishay website for support.
Who is the manufacturer of KP1830322061?
Vishay
