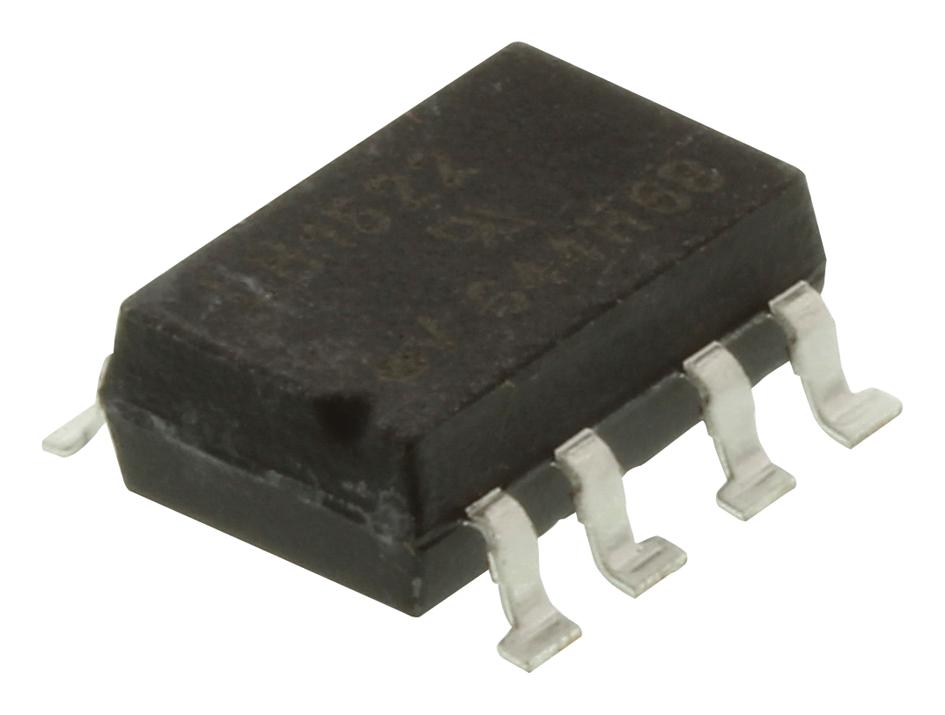

Vishay LH1522AAC Solid-State Relay
The LH1522AAC is a surface-mount solid-state relay using Gallium Arsenide (GaAs) LED activation and integrated monolithic die for switching. Designed as a dual 1-form-A SPST normally-open relay, it replaces electromechanical relays in industrial, communication, and instrumentation applications. Features include high surge capability, current-limiting circuitry for lightning surge withstand, clean bounce-free switching, and low power consumption. Constructed with high-voltage dielectrically isolated technology and compliant with ANSI/TIA-968-B surge standards, it offers reliable switching for demanding environments.
Vishay LH1522AAC Solid-State Relay Specifications:
- Load voltage: 200 V
- Load current: 120 mA
- Isolation test voltage: 5300 Vams
- On-resistance: typical 102 Ω
- Physical package: Surface-mount (SMD)
- Current limit protection
- Peak load current: 460 mA
- Operating temperature range: -40°C to +85°C
- Storage temperature: -40°C to +150°C
- Pin soldering temperature max: 260°C
- Relay type: SPST normally open
- High surge capability
- Compliance: RoHS, WEEE
- Input: GaAs LED
- Output: MOSFET switches
- Dimensions: Refer to datasheet for detailed package size
- Certifications: UL1577, CSA, BSI/BABT, FIMKO
Buy the Vishay LH1522AAC – Reliable Solid-State Relay for Industrial Applications
Purchase the Vishay LH1522AAC solid-state relay online today and benefit from its high surge tolerance, bounce-free switching, and low power operation. Perfect for industrial, communication, sensing, and instrumentation systems, this relay provides reliable performance in demanding environments. Its compact surface-mount design and compliance with safety standards make it easy to integrate into your projects. Secure your supply now and enjoy fast delivery, excellent quality, and the versatility of a high-performance SPST relay suitable for various high-voltage switching needs.
Order your Vishay LH1522AAC dual solid-state relay today and ensure dependable switching with low power consumption and high surge capacity for your industrial projects.
Frequently Asked Questions
Where can I buy Vishay LH1522AAC?
You can click on the BUY or RFQ button to purchase LH1522AAC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LH1522AAC?
You can download the LH1522AAC datasheet or visit the Vishay website for support.
Who is the manufacturer of LH1522AAC?
Vishay
