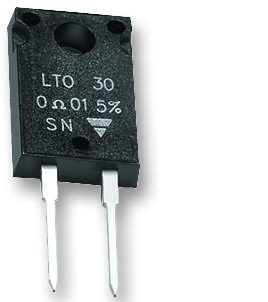

Vishay LTO030FR1000JTE3 Power Resistor
The LTO 30 from Vishay Sfernice is a 30 W power resistor utilizing thick film technology. Designed for high power dissipation, it features an alumina substrate, thick film resistive element, and tinned copper connections. Its compact TO-220 package allows easy mounting on heatsinks, with reliable performance at temperatures from -55°C to +155°C. Suitable for applications needing high wattage, precise resistance, and thermal management, this resistor is RoHS compliant, offering robustness, low inductance, and environmental resistance for industrial and electronic projects.
Vishay LTO030FR1000JTE3 Power Resistor Specifications:
- Power Rating: 30 W at + 25 °C (case temperature)
- Resistance Range: 0.010 Q to 550K Q
- Resistance Tolerance: ±1% (on request ±2%)
- Temperature Range: -55 °C to +155 °C
- Temperature Coefficient: Typical 150 ppm/°C to 900 ppm/°C
- Material: Alumina substrate with thick film resistive element
- Connections: Tinned copper
- Maximum Working Voltage: 750 V
- Thermal Resistance: Rθja dependent on heatsink and interface
- Mechanical Protection: Molded
- Environmental Resistance: Humidity, vibration, shock according to MIL-STD-202
- Dimensions: Length 16.2mm, Width 12.7mm, Height 10.4mm (approximate)
- Weight: Max 2g
- Insulation Resistance: 2x10^9 Ω
- Dielectric Strength: 1500 V.dc for 1 min
- Construction: Non inductive, thick film resistive element on alumina substrate
- RoHS Compliant: Yes
Buy the Vishay Series LTO 30 Power Resistor: LTO030FR1000JTE3
Purchase the Vishay Series LTO 30 high-power resistor online today to ensure your projects benefit from its robust thick film design, efficient heat dissipation, and long-term stability. Perfect for industrial, electronic, and automation applications, this resistor provides reliable performance at temperatures up to 155°C. Easily mounted on heatsinks for optimal thermal management, it offers precise resistance values with minimal inductance. Secure your supply now and enhance the durability and efficiency of your electrical systems with just a few clicks.
Order your Vishay Series LTO 30 power resistor today and give your electronic projects the reliable thermal performance they deserve.
