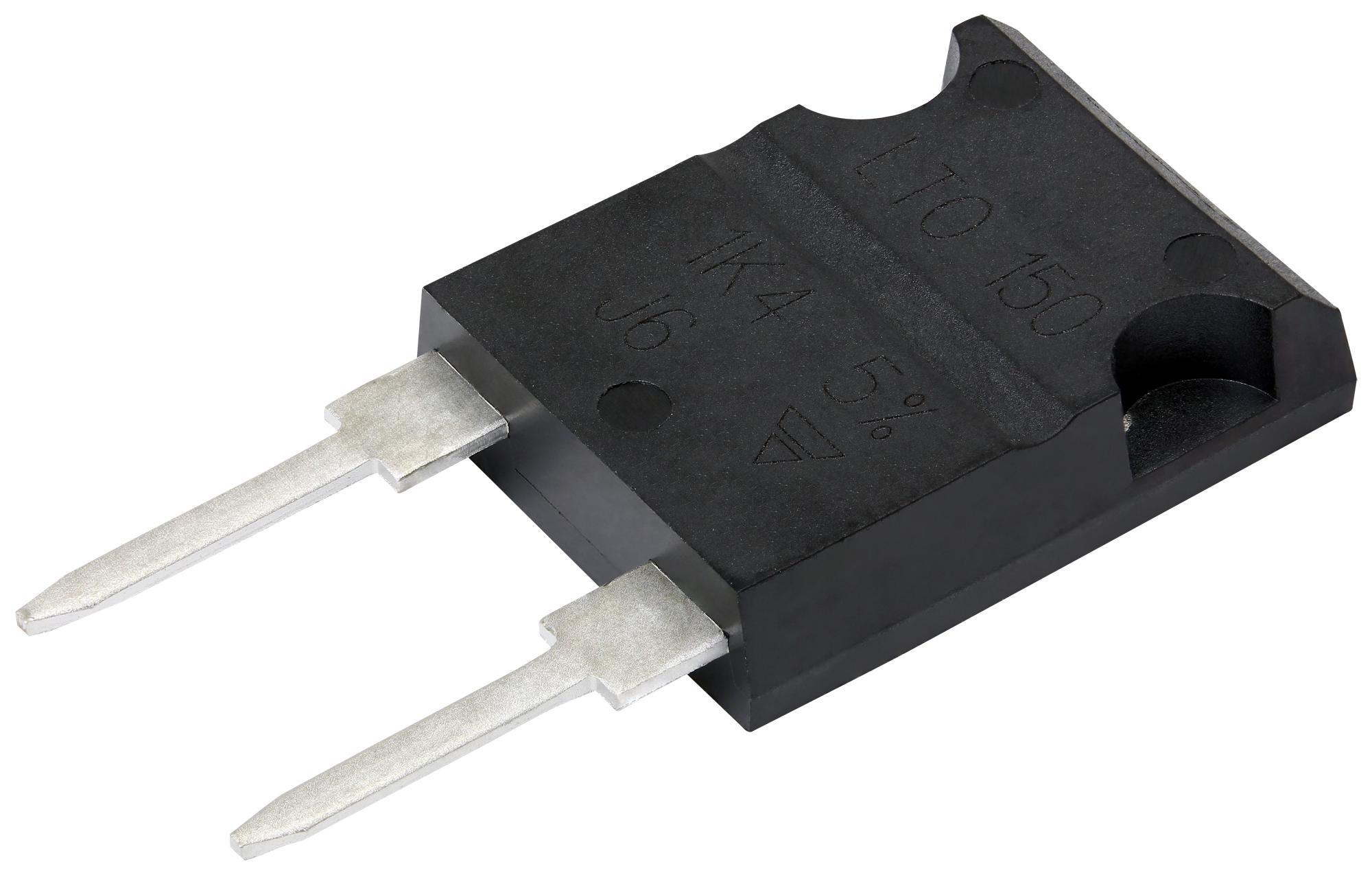

Vishay LTO150F4R700JTE3 Power Resistor
The LTO 150 is a high-power clip-mounted resistor designed for direct heatsink contact, offering 150 W at 45°C. Made with thick film technology, it features a broad resistance range from 0.03Ω to 1.3MΩ, a compact TO-247 package, and UL 94 V-0 material compliance. Suitable for industrial and automotive applications, it ensures reliable performance with a thermal resistance of 0.87°C/W, high temperature tolerance from -55°C to +175°C, and meets AEC-Q200 standards for durability and stability under demanding conditions.
Vishay LTO150F4R700JTE3 Power Resistor Specifications:
- Power Rating: 150 W at +45 °C case temperature
- Resistance Range: 0.03 Ω to 1.3 MΩ
- Thermal Resistance: 0.87 °C/W
- Maximum Working Temperature: 175 °C
- Voltage Limit: 500 V
- Material: UL 94 V-0 flame retardant ceramic
- Case Size: TO-247 package
- Environmental Standards: AEC-Q200, RoHS compliant
- Operating Temperature Range: -55 °C to +175 °C
- Dielectric Strength: 3000 V (AC, 1 min)
- Case Dissipation: 4.5 W in free air at +25 °C
- Weight: Max. 4 g
- Resistance Tolerance: ±1%
Buy the Buy Vishay LTO 150 Power Resistor Part Number LTO150F4R700JTE3 Online
Order the Vishay LTO 150 Power Resistor online today and experience reliable high-power performance for industrial, automotive, and precision electronic systems. Featuring thick film technology and a robust TO-247 package, this resistor delivers 150W at 45°C, broad resistance options from 0.03Ω to 1.3MΩ, and excellent thermal management with a low 0.87°C/W thermal resistance. Its high temperature tolerance from -55°C to +175°C and compliance with leading standards ensure durability, making it the perfect choice for demanding electrical environments. Purchase online now for fast delivery and secure checkout.
Get Vishay LTO 150 high-power resistor today—designed for precision, thermal stability, and long-lasting durability in demanding industrial and automotive applications.
Frequently Asked Questions
Where can I buy Vishay LTO150F4R700JTE3?
You can click on the BUY or RFQ button to purchase LTO150F4R700JTE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LTO150F4R700JTE3?
You can download the LTO150F4R700JTE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of LTO150F4R700JTE3?
Vishay
