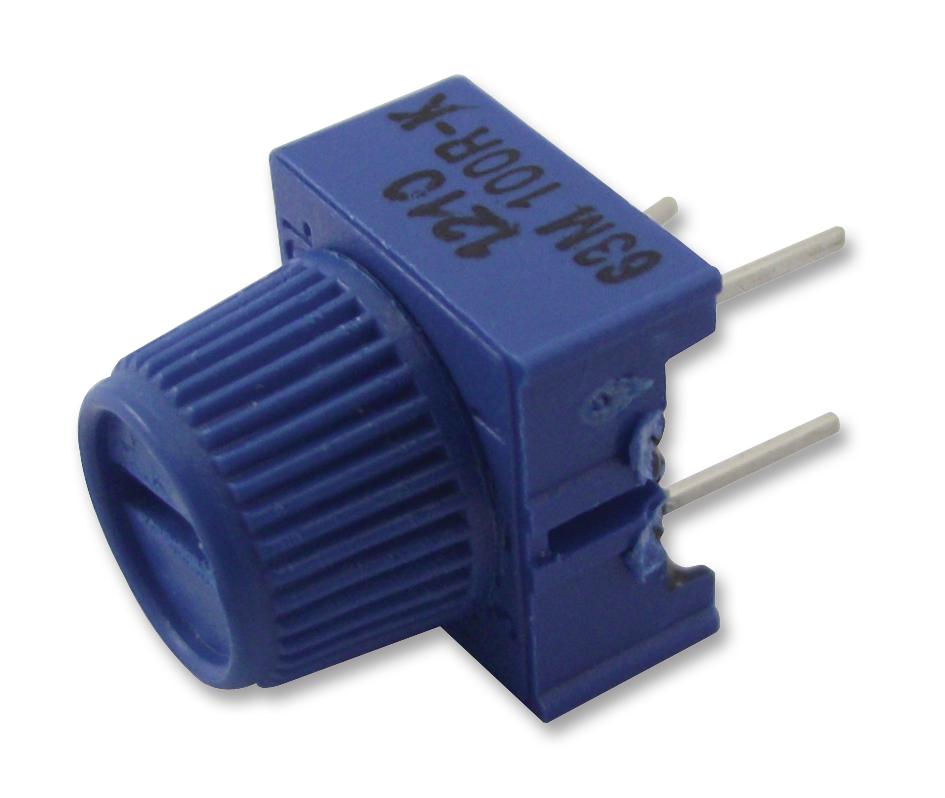

Vishay M63M102KB30T607 Precision Trimmer
The Vishay Spectrol Model 63P is a precision 3/8 inch (10 mm) single-turn cermet trimmer with an arrow and graduations for precise repeatable settings. Featuring an O-ring seal for solvent and aqueous washing, it is RoHS compliant and equipped with a multi-finger wiper for better contact resistance. Available in various pin configurations for top or side adjustments and multiple knob styles, this trimmer offers a standard resistance range between 100 Ω and 2 MΩ with a tolerance of ±10%. Its rugged construction and reliable electrical specifications make it ideal for fine-tuning and calibration in industrial and electronic applications.
Vishay M63M102KB30T607 Precision Trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100 Ω to 2 MΩ
- Resistance tolerance: ±10%
- End resistance: 2 Ω or 1% (whichever is greater)
- Temperature coefficient: + 100 ppm/°C
- Power rating: 0.5 W at +70°C, derated linearly to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Mechanical travel: 300° ±50
- Starting torque: 35 mNm max.
- Weight: 0.03 oz (0.85 g)
- Circuit diagram: Yes
- Sealing: IP64
- Environmental temperature range: -55°C to +125°C
- Climatic category: 56/125/21
Buy the Vishay M63M102KB30T607 – Reliable Precision Trimmer for Industrial Applications
Purchase the Vishay Model 63P precision single-turn cermet trimmer online today. Designed for accurate adjustment and calibration, this high-quality component features a rugged IP64 seal and a resistance range from 100 Ω to 2 MΩ. Its efficient multi-finger wiper ensures stable contact resistance, making it ideal for industrial, electronic, and calibration applications. Available in various configurations, order now to enhance the reliability and performance of your devices with this dependable, RoHS-compliant trimmer.
Order your Vishay Model 63P single-turn cermet trimmer today and ensure precise calibration for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy Vishay M63M102KB30T607?
You can click on the BUY or RFQ button to purchase M63M102KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M102KB30T607?
You can download the M63M102KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M102KB30T607?
Vishay
