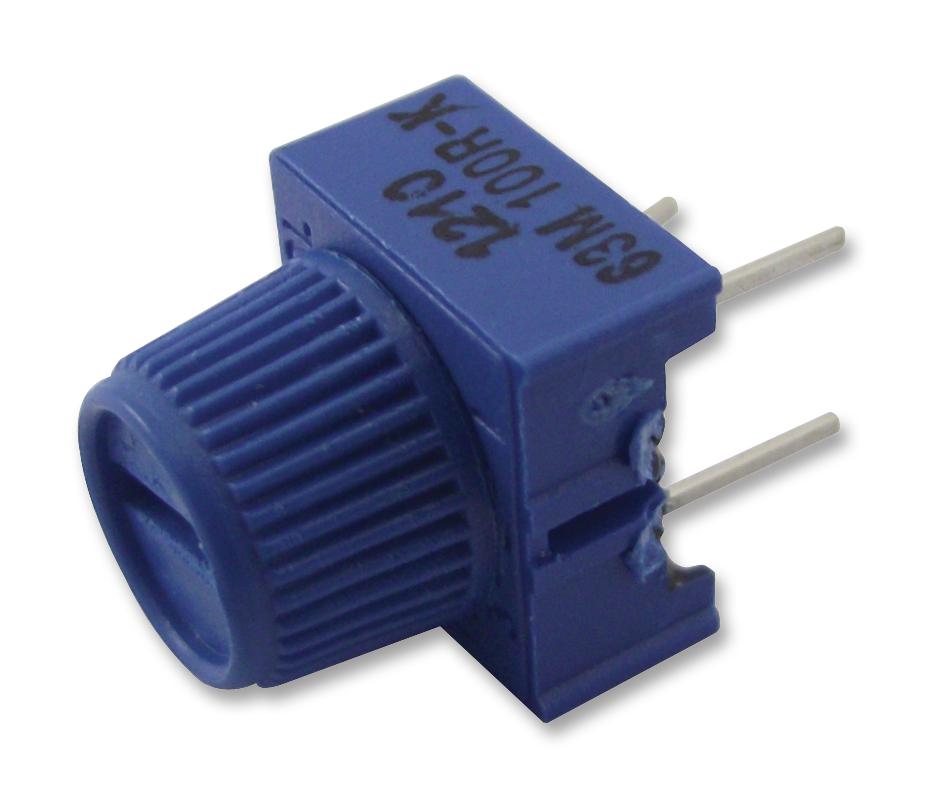

Vishay M63M103KB30T607 Cermet Trimmer
The Vishay Spectrol Model 63 P series is a 3/8 inch square single-turn cermet trimmer designed for precise resistance adjustments in electronic circuits. It features a multi-finger wiper for quick adjustments, an O-ring seal for solvent and aqueous washing, and robust housing with secure pins for rigid mounting. Its resistance range spans from 100 ohms to 2 megaohms with a tolerance of ±10%. The device offers excellent stability with a temperature coefficient of approximately +100 ppm/°C and complies with RoHS standards. Suitable for various industrial and technical applications requiring reliable, high-precision trimming components.
Vishay M63M103KB30T607 Cermet Trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- End resistance: ≥2Ω or 1% whichever is greater
- Temperature coefficient: approximately +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: ≥1000 MΩ at 600 V
- Mechanical travel: 300° +50°
- Starting torque: ≤35 mNm
- Weight: 0.85 g
- Sealing: IP64
- Climatic category: 56/125/21
- Terminal material: Pure Sn
- Environmental temperature range: -55°C to +125°C
Buy the VISHAY M63M103KB30T607 – Reliable Cermet Trimmer for Industrial Applications
Enhance your electronic assemblies with the Vishay Cermet Trimmer, designed to deliver precise resistance adjustments in a compact, reliable package. Featuring a robust sealing IP64 and a wide resistance range from 100 ohms to 2 megaohms, it ensures stability and durability in demanding environments. Its multi-finger wiper allows quick, repeatable calibration, perfect for industrial, communications, and instrumentation applications. Available in various packaging options, including boxes and tubes, it offers easy integration into your manufacturing process. Order online today for fast delivery and dependable performance.
Order your Vishay Series M63M103KB30T607 today and give your projects the dependable high-precision adjustment components they deserve.
Frequently Asked Questions
Where can I buy Vishay M63M103KB30T607?
You can click on the BUY or RFQ button to purchase M63M103KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M103KB30T607?
You can download the M63M103KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M103KB30T607?
Vishay
