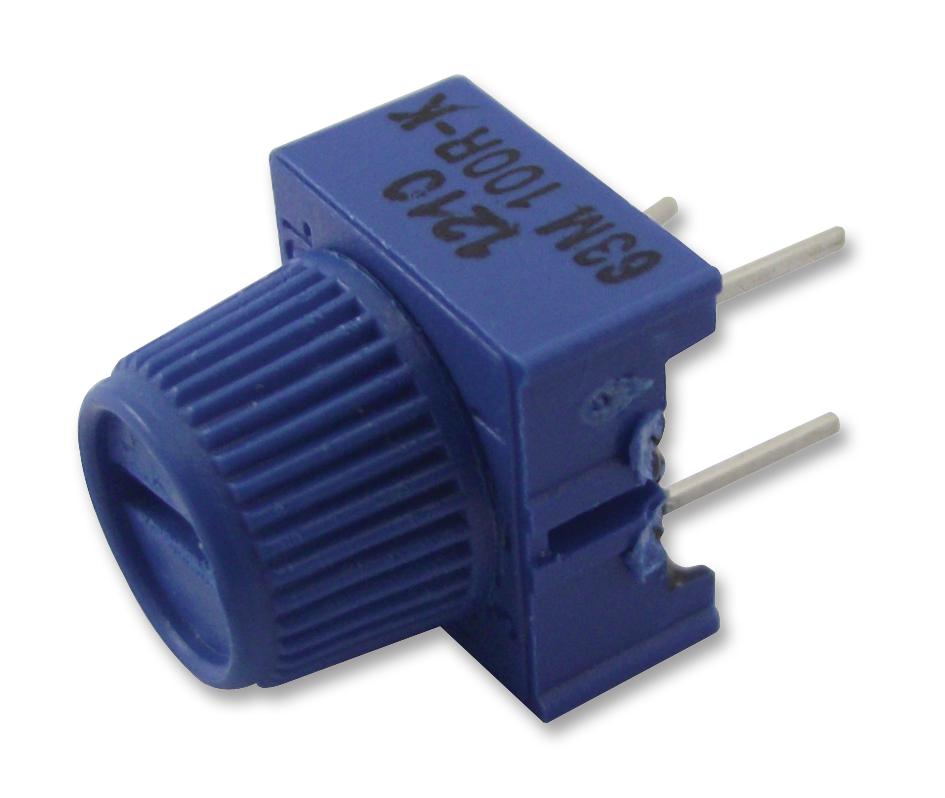

Vishay M63M501KB30T607 Cermet Trimmer
The Vishay Spectrol 63 series cermet trimmer offers precise single-turn adjustments with a 270° effective travel, ideal for fine-tuning in electronic circuits. Designed with multiple pin configurations, it features a resistive range of 100 Ω to 2 MΩ with ±10% tolerance and a temperature coefficient of +100 ppm/°C. Its robust sealed IP64 enclosure ensures durability against environmental factors like moisture and dust. Suitable for automation, instrumentation, and control applications, it provides reliable performance with a power rating of 0.5 W at +70°C, making it a versatile component for precise electronic calibration.
Vishay M63M501KB30T607 Cermet Trimmer Specifications:
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- Effective travel: 270° nominal
- Mechanical travel: 300° +50
- Temperature coefficient: +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: ≥1000 MΩ at 600 Vac
- Contact resistance variation: ≤1% or 1Ω
- Sealing: IP64
- Temperature range: -55°C to +125°C
- Climatic category: 56/125/21
- Mechanical life: 200 cycles
- Mounting: Rigid with pins, with multiple pin configurations
- Material: Cermet resistive element, sealed housing
Buy the VISHAY M63M501KB30T607 – Reliable Electronic Calibration for Industrial Applications
Experience high-precision electronic calibration with the VISHAY Cermet Trimmer. Featuring a 270° effective travel and resistance range up to 2 MΩ, this durable component ensures reliable performance in industrial, automation, and instrumentation applications. Its sealed IP64 design protects against moisture and dust, making it suitable for harsh environments. Easy to mount with multiple pin configurations, it provides consistent adjustments, with a power rating of 0.5 W at +70°C. Enhance your electronic control systems by ordering this accurate and robust trimmer online today.
Get VISHAY M63M501KB30T607 today—built for precision, durability, and seamless calibration in electronic and industrial systems.
