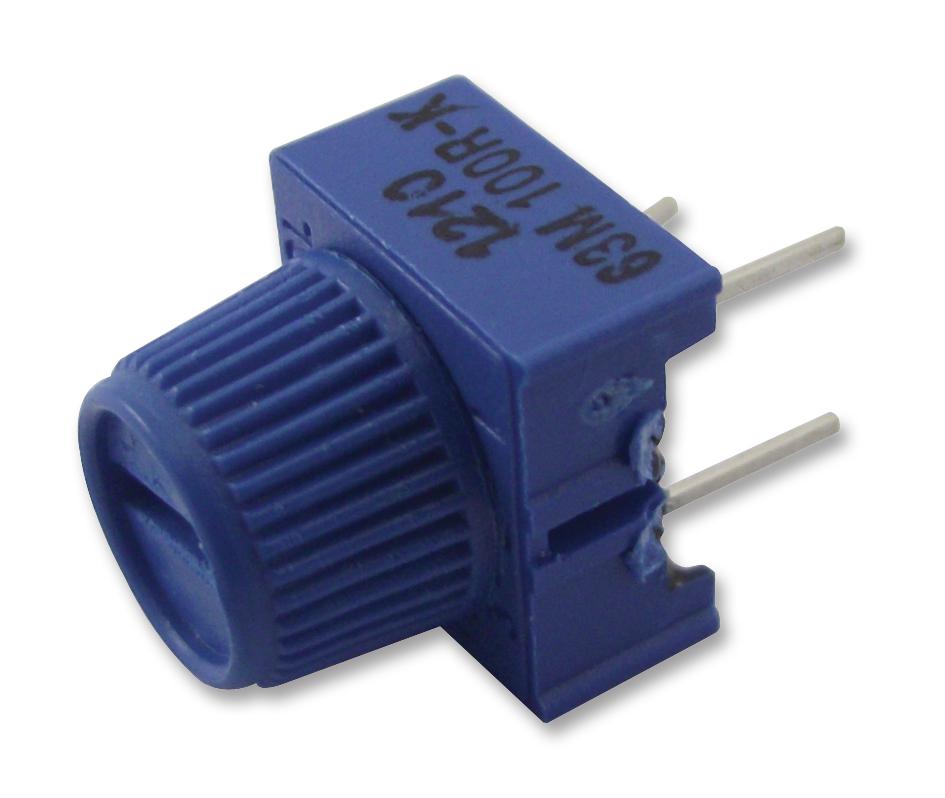

Vishay M63M503KB30T607 Cermet Trimmer
The Vishay Spectrol Model 63 cermet trimmer is a durable, high-precision single-turn potentiometer designed for accurate electronic adjustments. It features a 270° effective travel, a resistance range of 100Ω to 2 MΩ with ±10% tolerance, and a temperature coefficient of +100 ppm/°C. Its IP64 sealing ensures resistance to dust and moisture, making it ideal for industrial and electronic applications requiring reliable, repeatable settings. The trimmer's solid end stop and multi-finger wiper enable consistent, easy adjustments suitable for various circuit configurations.
Vishay M63M503KB30T607 Cermet Trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2 MΩ
- Resistance tolerance: ±10%
- Temperature coefficient of resistance: +100 ppm/°C
- Maximum power rating: 0.5 W at +70 °C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Mechanical travel: 300° +50°
- Sealing: IP64
- Climatic category: 56/125/21
- Operating temperature: -55°C to +125°C
- Terminals: Pure Sn (code 3)
- Weight: 0.85 g
Buy the Vishay Series 63 Cermet Trimmer: M63M503KB30T607
Order the Vishay Model 63 cermet trimmer online today to ensure precise electronic adjustments with a reliable design. Featuring a 270° travel, resistance from 100Ω to 2 MΩ, and IP64 sealing, this high-quality component offers excellent durability and consistent performance. Its solid end stop and multi-finger wiper enable quick, accurate adjustments suitable for industrial and precision electronic applications. With easy online purchase options and comprehensive specifications, equip your projects with this durable and adjustable trimmer today.
Buy Vishay 63 Series Cermet Trimmer M63M503KB30T607 now and experience unmatched reliability and performance for your accurate circuit adjustments.
Frequently Asked Questions
Where can I buy Vishay M63M503KB30T607?
You can click on the BUY or RFQ button to purchase M63M503KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M503KB30T607?
You can download the M63M503KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M503KB30T607?
Vishay
