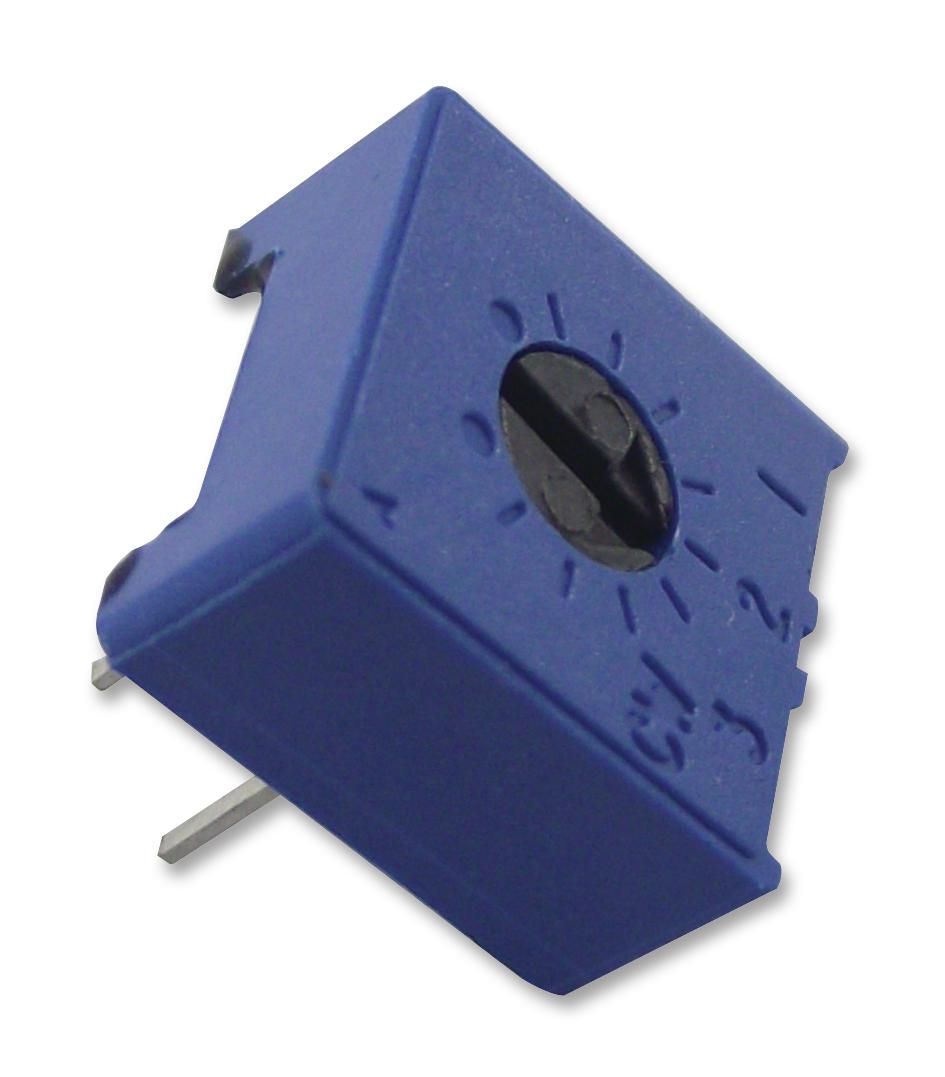

Vishay M63P102KB40 Precision Trimmer
The Vishay Spectrol Model 63 P series is a high-precision, square 3/8-inch (10 mm) single-turn cermet trimmer potentiometer suitable for precise applications. Featuring arrow and graduation indicators for repeatable settings, an “O” ring seal for solvent and aqueous washing, and a multi-finger wiper for better contact resistance, it offers a resistance range from 100 Ω to 2 MΩ with a tolerance of ±10%. Its rugged construction and RoHS compliance make it ideal for industrial and electronic circuit calibration tasks, with reliable performance under varying environmental conditions.
Vishay M63P102KB40 Precision Trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100 Ω to 2 MΩ
- Resistance tolerance: ±10%
- End resistance: 2 Ω or 1%, whichever is greater
- Temperature coefficient of resistance: +100 ppm/°C
- Power rating: 0.5 W at +70 °C, derated to 0 W at 125 °C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Mechanical travel: 300° + 50
- Starting torque: 35 mNm max
- Weight: 0.03 oz (0.85 g)
- Sealing: IP64
- Environmental temperature range: -55 °C to +125 °C
- Climatic category: 56/125/21
- Contact resistance variation: 1% or 1 Ω
- Vibration resistance: 98 m/s², 10 Hz to 500 Hz
- Mechanical life: 200 cycles
- Terminal strength: 2.2 lbs (1 kg) min
Buy the VISHAY M63P102KB40 – Reliable Precision Trimmer for Industrial Applications
Order the Vishay Spectrol Model 63 P precision square single-turn cermet trimmer online today to enhance your electronic calibration, industrial automation, and circuit tuning projects. Designed for accurate adjustments, sealed for environmental protection, and available in various packaging options including boxes and tubes, this high-quality component ensures consistent performance. Easy to install and reliable over many cycles, it’s the perfect choice for engineers and technicians seeking durability and precision in their applications. Shop now for fast delivery and competitive pricing!
Buy Vishay M63P102KB40 now and experience unmatched reliability and precise adjustability for your calibration needs.
