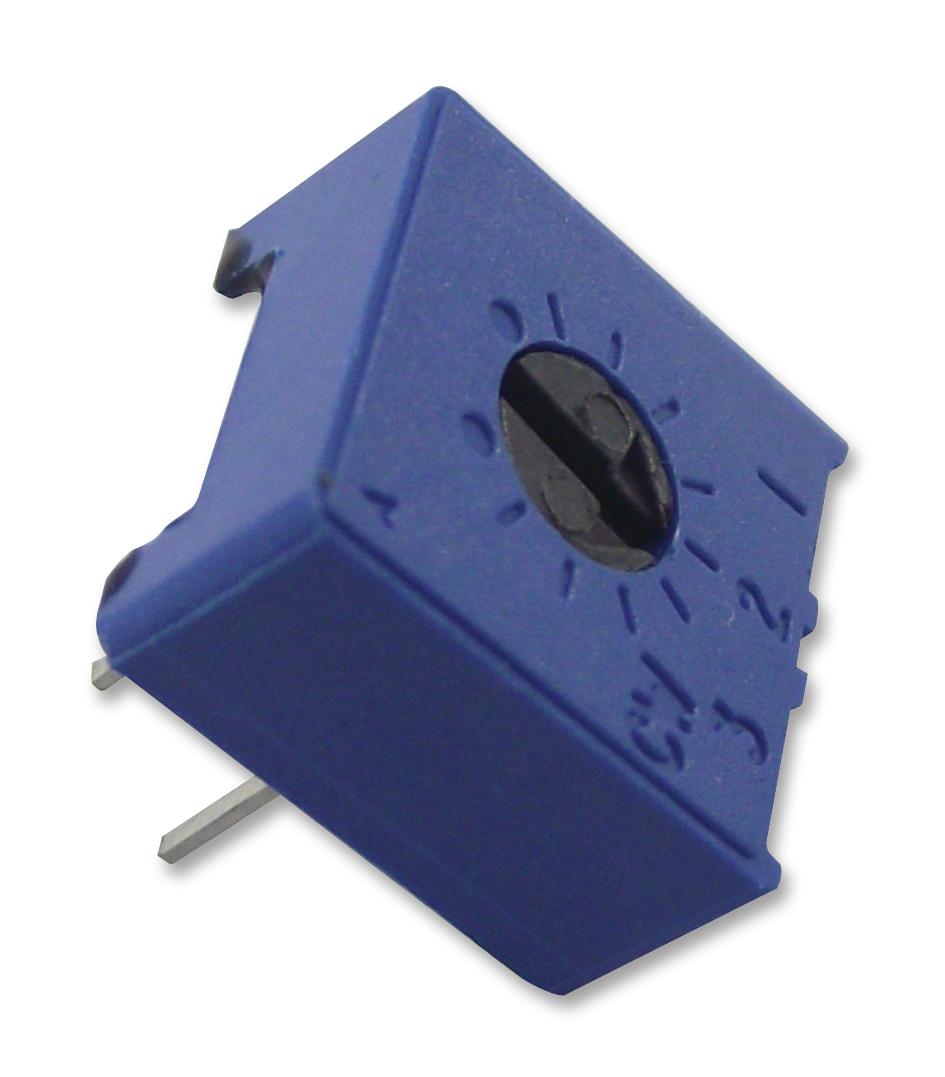

Vishay M63P104KB40 Cermet Trimmer
The Vishay Spectrol 3/8 inch square single-turn cermet trimmer offers precise adjustment with arrow graduations for repeatable settings and a sealed design for solvent and aqueous washing. It features multi-finger wipers for better contact, solid end stops, and multiple pin configurations for flexible mounting options. Suitable for various electronic applications, it provides a resistance range of 100 Ω to 2 MΩ with ±10% tolerance, a maximum power rating of 0.5 W at +70°C, and excellent environmental resilience with an IP64 sealing rating and wide temperature operation from -55°C to +125°C.
Vishay M63P104KB40 Cermet Trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100 Ω to 2 MΩ
- Resistance tolerance: ±10%
- Temperature coefficient: +100 ppm/°C
- Power rating: 0.5 W at +70°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: ≥ 1000 MΩ at 600 V
- Mechanical travel: 300° +50
- Starting torque: 35 mNm max
- Weight: 0.85 g
- Sealing: IP64
- Temperature range: -55°C to +125°C
- Climatic category: 56/125/21
- Terminals: Pure Sn (code 3)
Buy the Buy Vishay Spectrol Cermet Trimmer Part Number M63P104KB40 Online
Purchase the Vishay Spectrol Cermet Trimmer M63P104KB40 online to ensure precise, durable, and reliable component performance for your electronic applications. Featuring a 3/8 inch square size, sealed design for washing compatibility, and resistance range from 100 Ω to 2 MΩ, this single-turn trimmer is ideal for achieving accurate, repeatable settings in various environments. Its IP64 sealing and wide temperature range of -55°C to +125°C guarantee durability. Simplify your procurement process and upgrade your projects with this high-quality, RoHS-compliant device available now.
Order your Vishay Series M63P104KB40 sealed cermet trimmer today and enhance your electronic projects with reliable adjustment and durable performance.
Frequently Asked Questions
Where can I buy Vishay M63P104KB40?
You can click on the BUY or RFQ button to purchase M63P104KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63P104KB40?
You can download the M63P104KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63P104KB40?
Vishay
