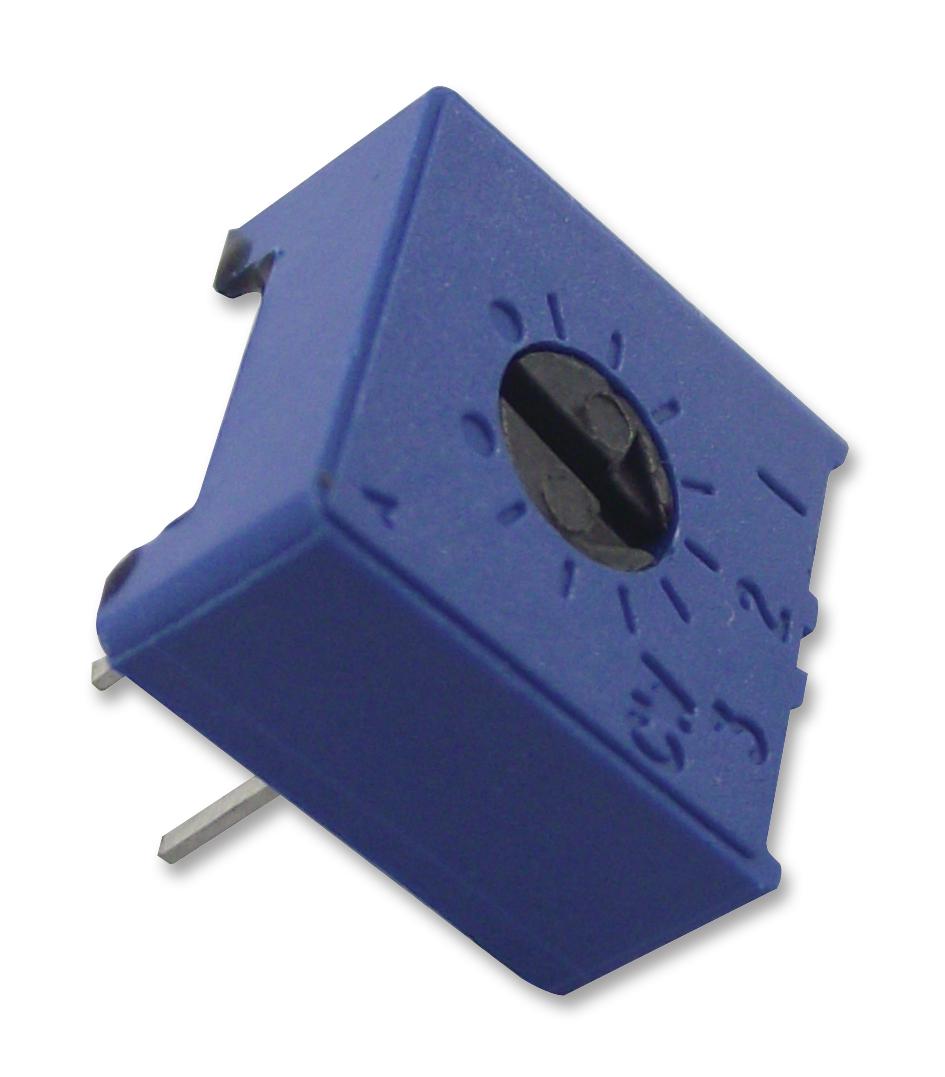

Vishay M63P504KB40 single-turn cermet trimmer
The Vishay Spectrol 63P series single-turn cermet trimmer offers precise, repeatable adjustments with arrow and graduations. It features a solid end stop, multi-finger wiper for better contact resistance, and an “O” ring seal for solvent and aqueous washing, complying with RoHS standards. Designed for front or side mounting with various pin configurations, it provides a resistance range of 100Ω to 2MΩ, with a resistance tolerance of ±10%. Effective travel is 270°, and it withstands environmental factors such as temperature from -55°C to +125°C, with a sealing rating of IP64.
Vishay M63P504KB40 single-turn cermet trimmer Specifications:
- Resistance Range: 100Ω to 2MΩ
- Resistance Tolerance: ±10%
- Effective Travel: 270° nominal
- Power Rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum Voltage: 250 V
- Dielectric Withstand Voltage: 1000 Vac (sea level)
- Insulation Resistance: 1000 MΩ minimum
- Contact Resistance Variation: 1% or 1Ω
- Mechanical Travel: 300° ±50
- Starting Torque: 35 mNm max
- Operating Temperature Range: -55°C to +125°C
- Sealing: IP64
- Climatic Category: 56/125/21
- Weight: 0.85 g
- Terminals: Pure Sn (code 3)
Buy the VISHAY Series 63 Single-Turn Cermet Trimmer: M63P504KB40
Purchase the VISHAY 63P series single-turn cermet trimmer online today and enjoy high precision, durable construction, andsealed design ideal for demanding electronic applications. This potentiometer offers wide resistance options from 100Ω to 2MΩ, with a resistance tolerance of ±10%, and operates under temperatures ranging from -55°C to +125°C. Its IP64 sealing ensures protection against dust and splashes, making it suitable for various industrial and consumer electronic devices. Get yours now for reliable performance and easy installation in your projects.
Buy VISHAY 63P504KB40 now and experience unmatched reliability and performance in electronic adjustments and calibration.
