Vishay M63S203KB40 cermet trimmer
The Vishay Spectrol 3/8 inch square single-turn cermet trimmer potentiometer offers precise resistance adjustments with a 270° effective travel, resistance range from 1002Ω to 2MΩ, and a tolerance of ±10%. Its robust design includes an
Vishay M63S203KB40 cermet trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 1002Ω to 2MΩ
- Resistance tolerance: ±10%
- End resistance: 2Ω or 1% whichever is greater
- Temperature coefficient of resistance: +100 ppm/°C
- Power rating: 0.5 W at +70 °C, derated to 0 W at 125 °C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum at 600 V
- Mechanical travel: 300° ±50°
- Starting torque: 35 mNm max
- Environmental temperature range: -55 °C to +125 °C
- Sealing: IP64
- Climatic category: 56/125/21
- Terminal material: Pure Sn
- Resistance element: Cermet
- Weight: 0.85 g max

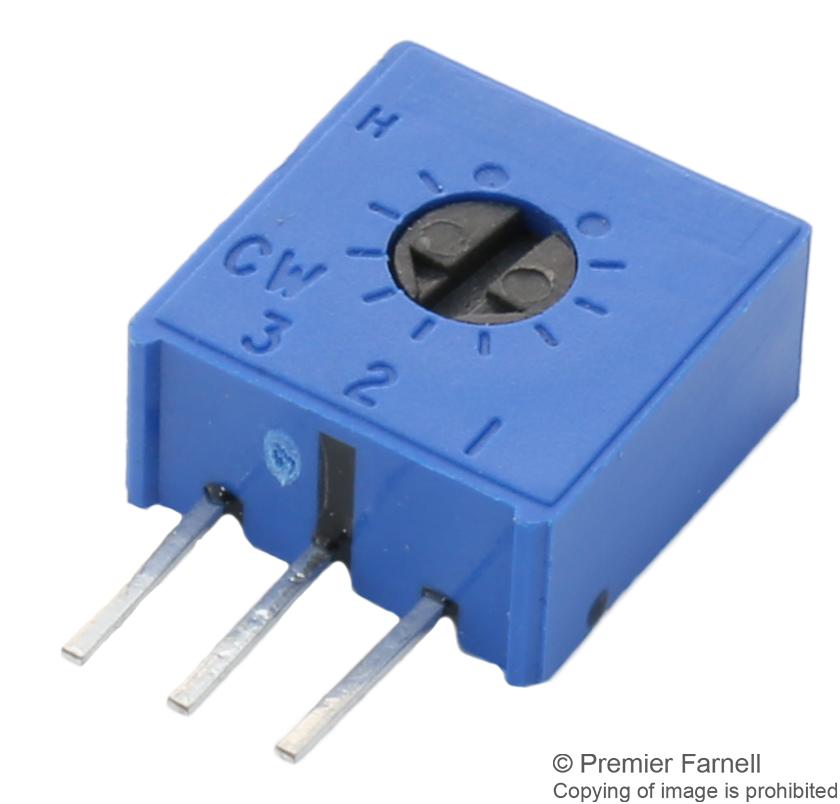

Buy the VISHAY Series 63 Cermet Trimmer: M63S203KB40
Purchase the high-precision VISHAY Series 63 cermet trimmer M63S203KB40 online today for reliable resistance adjustments. Featuring a 270° travel and resistance range from 1002Ω to 2MΩ, this potentiometer ensures accurate tuning in various applications. Its IP64 sealing guarantees durability against environmental factors. Quick adjustment with multi-finger wiper, high temperature tolerance from -55°C to +125°C, and UL and IEC compliance make it ideal for demanding projects. Secure your supply now for consistent performance and long-term reliability.
Order your VISHAY Series 63 cermet trimmer M63S203KB40 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay M63S203KB40?
You can click on the BUY or RFQ button to purchase M63S203KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63S203KB40?
You can download the M63S203KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63S203KB40?
Vishay
