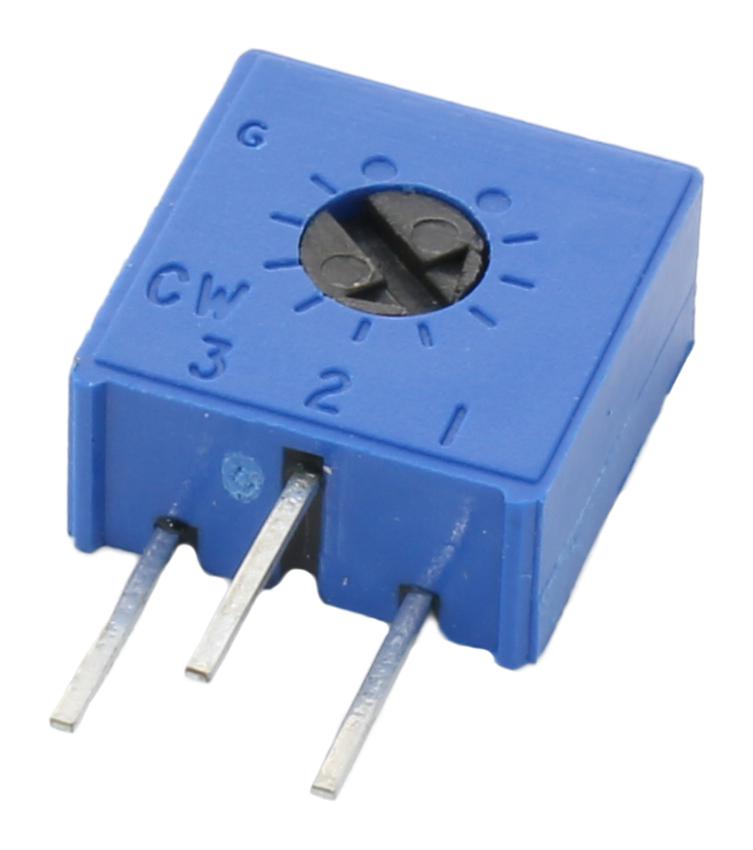

Vishay M63X102KB40 precision cermet trimmer
The Vishay Spectrol Model 63 precision cermet trimmer features a 3/8 inch square (10 mm) size, with a single-turn design optimized for repeatable settings and rugged assembly. It offers a resistance range from 100Ω to 2 MΩ with ±10% tolerance, suitable for accurate and stable adjustments in electronic circuits. Encased with an IP64 sealing rating, it withstands environmental factors, including solvent and aqueous washing. Its durable construction includes multi-finger wiper contact, solid end stop, and RoHS compliance, making it ideal for precise calibration in industrial and electronic applications.
Vishay M63X102KB40 precision cermet trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2 MΩ
- Resistance tolerance: ±10%
- End resistance: 2Ω or 1% whichever is greater
- Temperature coefficient of resistance: +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level, 250 Vac at 80,000 ft
- Insulation resistance: ≥1000 MΩ at 600 Vac
- Mechanical travel: 300° ±50
- Starting torque: ≤35 mNm
- Weight: ≤0.85 g
- Sealing: IP64
- Climatic category: 56/125/21
Buy the VISHAY 63X102KB40 – Reliable Precision Cermet Trimmer for Industrial Applications
Enhance your electronic or industrial projects with the Vishay 63X102KB40 precision cermet trimmer. Featuring a 3/8 inch square size, it offers a resistance range from 100Ω to 2 MΩ with ±10% tolerance, ensuring accurate calibration. Its robust IP64 sealing guards against environmental factors, while the multi-finger wiper guarantees reliable contact resistance. Ideal for precise circuit tuning and calibration, this compact component provides excellent durability, stable performance, and easy adjustment, making it an essential choice for applications requiring consistent and dependable resistance control.
Order your Vishay Series 63X102KB40 precision cermet trimmer today and give your electronic projects the dependable quality they deserve with durable sealing and precise resistance adjustment。
Frequently Asked Questions
Where can I buy Vishay M63X102KB40?
You can click on the BUY or RFQ button to purchase M63X102KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63X102KB40?
You can download the M63X102KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63X102KB40?
Vishay
