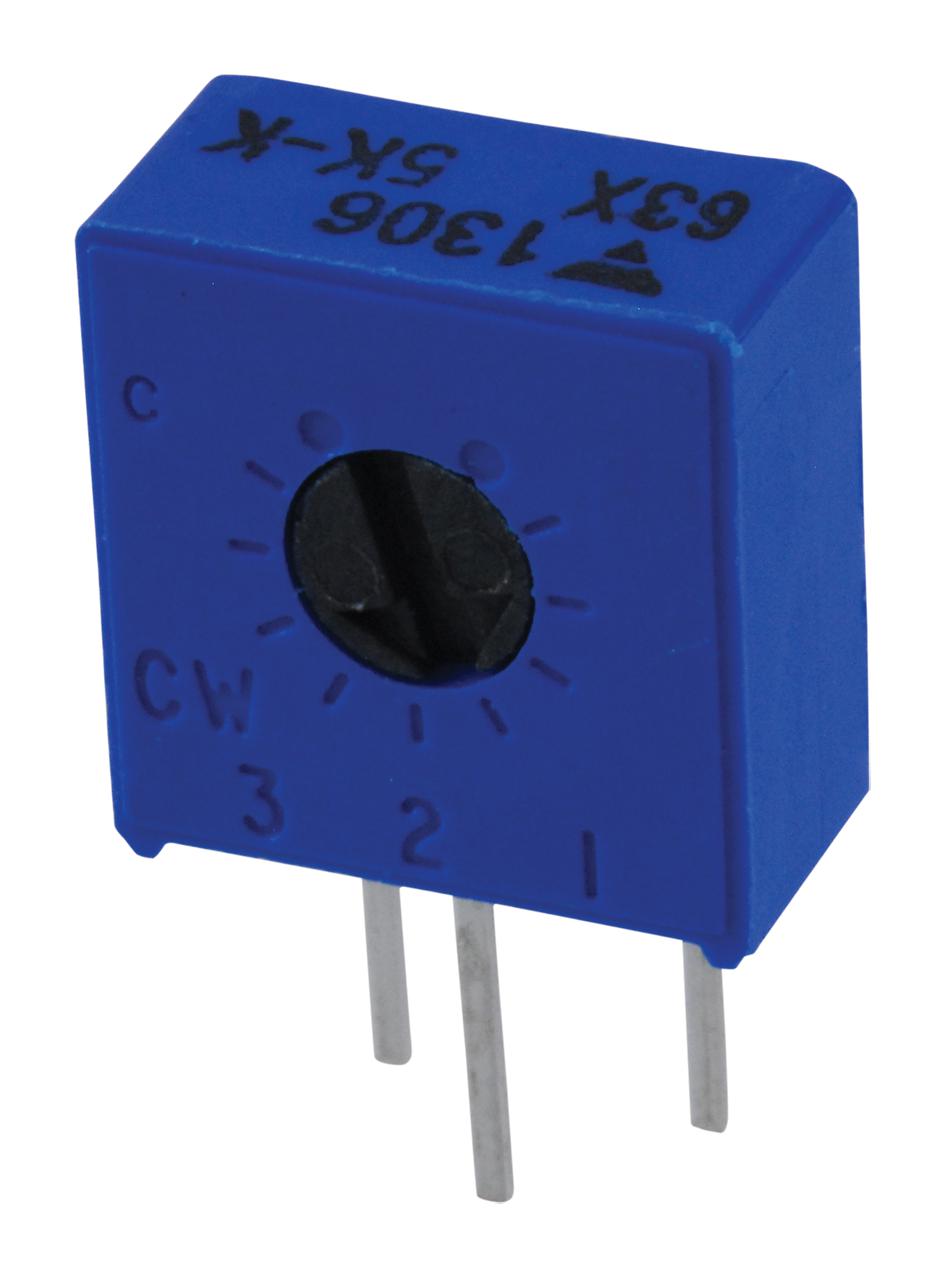

Vishay M63X502KB40 Cermet Trimmer
The Model 63 cermet trimmer is available in various pin configurations for top or side adjustment, and offers different knob styles for finger setting. It features quick adjustment with a multi-finger wiper and covers a standard resistance range from 100 ohms to 2 megaohms with a tolerance of ±10%. This industrial-grade rotary trim is sealed to IP64, with a single-turn adjustment of 270° and mechanical travel of 300°, suitable for harsh environments. It operates within -55°C to +125°C, providing reliable performance in demanding applications.
Vishay M63X502KB40 Cermet Trimmer Specifications:
- Resistance range: 100Ω to 2 MΩ
- Resistance tolerance: ±10%
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Temperature coefficient: +100 ppm/°C
- Mechanical travel: 300° +50°
- Effective travel: 270° nominal
- Sealing: IP64
- Operating temperature: -55°C to +125°C
- Terminals: Pure Sn (code 3)
- Vibration endurance: IEC standards compliance
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: ≥1000 MΩ at 600 Vac
- Weight: approximately 0.85 g
Buy the Vishay Series 63 Cermet Trimmer: M63X502KB40
Purchase the Vishay Series 63 Cermet Trimmer M63X502KB40 online today to benefit from high-precision adjustment capabilities, durable IP64 sealing, and a wide operating temperature range. With resistance from 100 ohms to 2 megaohms and a tolerance of ±10%, this industrial-grade trimmer is ideal for demanding applications requiring stable, repeatable settings. Its 270° single-turn adjustment, combined with quick multi-finger wiper operation and robust construction, ensures dependable performance in harsh environments. Shop now for reliable, easy-to-install electronic components designed to meet your project's specifications.
Order your Vishay Series 63 Cermet Trimmer M63X502KB40 today and ensure precise, reliable adjustments for your demanding electronic projects.
Frequently Asked Questions
Where can I buy Vishay M63X502KB40?
You can click on the BUY or RFQ button to purchase M63X502KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63X502KB40?
You can download the M63X502KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63X502KB40?
Vishay
