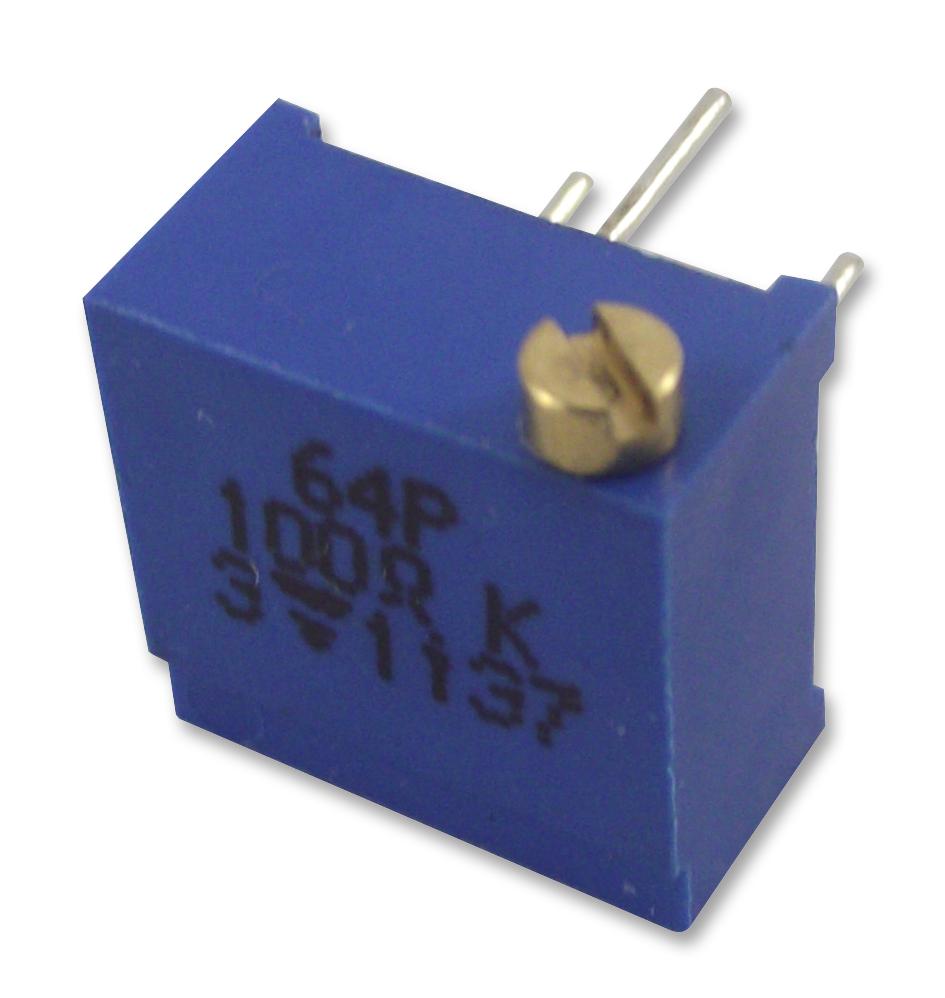

Vishay M64P204KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn cermet trimmer designed for precise PCB mounting. It features excellent operational stability, a resistance range of 10.9 to 2.2 MΩ, and a maximum power rating of 0.5 W at 70°C. The fully sealed IP67 construction ensures durability in harsh environments. It offers a temperature range from -55°C to +125°C, with a dielectric strength of 1000 V, and contact resistance variation below 2%. The device is suitable for fine adjustments in electronic circuits requiring high stability and reliability.
Vishay M64P204KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9 to 2.2 MΩ
- Power rating: 0.5 W at 70°C
- Temperature range: -55°C to +125°C
- Dielectric strength: 1000 V RMS
- Insulation resistance: 10 MΩ at 600 V
- Mechanical travel: 23 turns ±5
- Operating torque: Max 1.5 N·cm
- Sealing: Fully sealed IP67
- Terminal material: Pure Sn
- Physical dimensions: 3/8 inch x 3/8 inch x 3/16 inch
- Terminal spacing: 9.7 mm maximum
- End resistance: Typical 12 Ω
- Contact resistance variation: <2%
Buy the Vishay 64P204KB40 – Reliable Multi-Turn Cermet Trimmer for Industrial Applications
Purchase the Vishay Spectrol Model 64P204KB40 online today to ensure precise and reliable resistance adjustments in your industrial or electronic projects. With its IP67 sealing for durability, a wide operating temperature range from -55°C to +125°C, and a resistance range of 10.9Ω to 2.2 MΩ, this compact trimmer offers excellent stability, low contact resistance variation, and high-quality construction. Ideal for demanding environments requiring long-term reliability, it’s the perfect choice for engineers and technicians who prioritize performance and durability in their electronic components.
Buy Vishay 64P204KB40 now and experience unmatched stability and durability in your electronic adjustments.
Frequently Asked Questions
Where can I buy Vishay M64P204KB40?
You can click on the BUY or RFQ button to purchase M64P204KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64P204KB40?
You can download the M64P204KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64P204KB40?
Vishay
