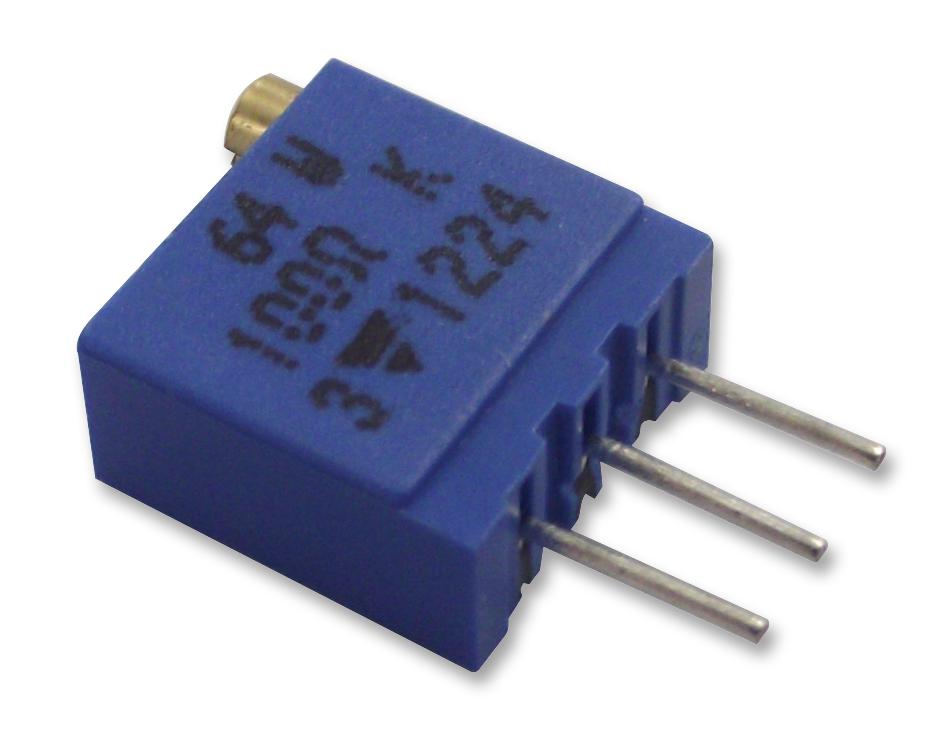

Vishay M64W203KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol 3/8 inch square multi-turn cermet trimmer is a compact, industrial-grade adjustable resistor with a resistance range from 10Ω to 2.2MΩ, designed for precise calibration and tuning in electronic circuits. Featuring a fully sealed IP67 design, it withstands harsh environments with an operating temperature range of -55°C to +155°C. Its cermet element ensures excellent stability and low contact resistance variation, making it ideal for high-reliability applications requiring fine adjustments and durable performance. Suitable for manufacturing, instrumentation, and control systems requiring multi-turn precision adjustments.
Vishay M64W203KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10Ω to 2.2MΩ
- Tolerance: ±5%, standard; ±2% on request
- Power rating: 0.5 W at +70°C
- Mechanical travel: 23 turns ±5
- Operating temperature: -55°C to +155°C
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10^8 Ω at 500 V
- Termination: Pure Sn (code E3)
- Climatic category: 55/125/56
- Sealing: Fully sealed, IP67
- End resistance: Typical 12 Ω
- Terminal spacing: 2.54 mm
- Wiper position: Approx. 50% travel
- Electrical travel: 21 ±2 turns
- Maximum end stop torque: Clutch action
Buy the Buy Vishay Spectrol Multi-Turn Cermet Trimmer Part Number M64W203KB40 Online
Enhance your electronic projects with the Vishay Spectrol multi-turn cermet trimmer. Featuring IP67 sealing, a resistance range of 10Ω to 2.2MΩ, and a rugged design, it offers precise control and stability. Ideal for calibration, instrumentation, and industrial control systems, this durable component withstands harsh environments from -55°C to +155°C. Its compact 3/8 inch size and sealed construction ensure long-term reliable operation. Purchase online today to optimize your circuit calibration with high accuracy and durability.
Buy Vishay Spectrol M64W203KB40 now and experience unmatched reliability and high-precision adjustment for demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay M64W203KB40?
You can click on the BUY or RFQ button to purchase M64W203KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64W203KB40?
You can download the M64W203KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64W203KB40?
Vishay
