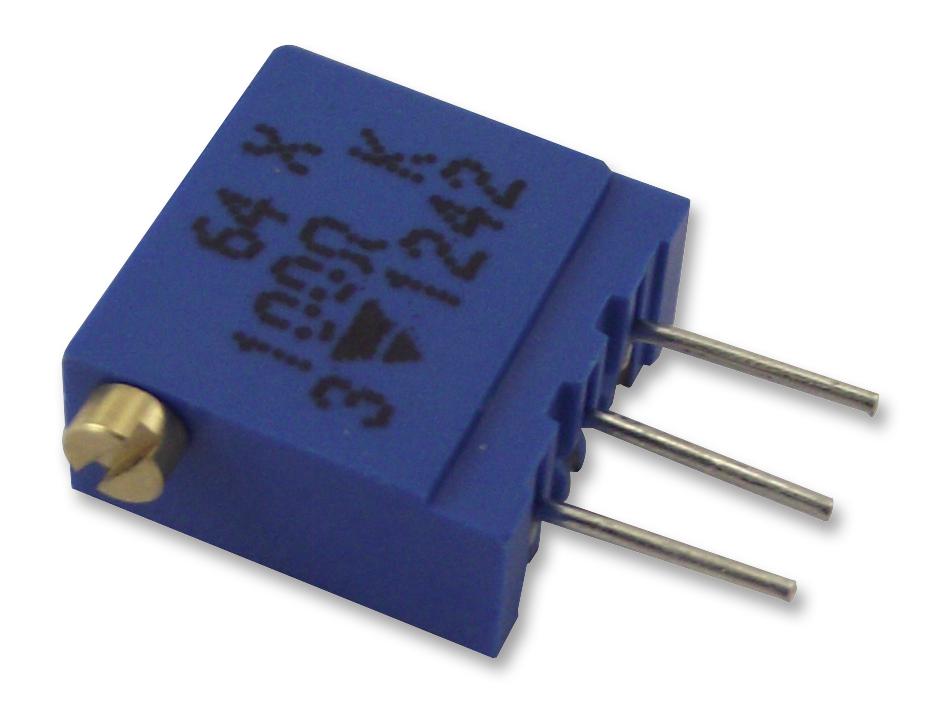

Vishay M64X501KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact 3/8 inch square (10 mm) multi-turn cermet trimmer designed for PCB mounting. It offers excellent stability, manual adjustability, and is sealed for environmental durability with IP67 rating. Suitable for precision adjustments in electronic circuits, it features a resistive cermet element with resistance ranges from 10.9 to 2.2 MΩ, a power rating of 0.5 W at 70°C, and a temperature tolerance between 5% and 10%. It is ideal for industrial applications requiring reliable, stable, and long-lasting trimmer potentiometers.
Vishay M64X501KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9 to 2.2 MΩ
- Power rating: 0.5 W at 70°C
- Tolerance: 5% (standard), 10% (optional)
- Temperature range: -55°C to +125°C
- Sealing: Fully sealed IP67
- Mechanical travel: 23 turns ± 5
- Operating torque: Max 1.5 N·cm
- End resistance: Typical 12 Ω
- Dielectric strength: 1000 V RMS
- Insulation resistance: 10 MΩ at 600 V DC
- Wiper positioned at approx. 50%
- Terminal material: Pure Sn (code 3)
- Dimensions: 3/8
- Dimensions: 3/8 inch square (10 mm), height 3/16 inch, terminal spacing varies between versions
- Material: Cermet resistive element, terminal material pure Sn
- Sealing: Fully sealed IP67
- Temperature range: -55°C to +125°C
- Resistance: 10.9Ω to 2.2 MΩ, tolerance 5% or 10%
- Dielectric strength: 1000 V RMS
- Insulation resistance: 10 MΩ at 600 V DC
- Rated power: 0.5 W at 70°C
- Mechanical travel: 23 turns ±5
- Operating torque: Max 1.5 N·cm
- End resistance: Typical 12Ω
- Terminal Finish: Pure Sn (code 3)
Buy the Buy Vishay Spectrol Model 64 Multi-Turn Cermet Trimmer Part Number M64X501KB40 Online
Order the Vishay Spectrol Model 64 Multi-Turn Cermet Trimmer online today for high stability, environmental sealing, and precision adjustment. Perfectly suited for industrial electronics with a compact 3/8 inch square size, it features resistance ranges from 10.9Ω to 2.2 MΩ, and a power rating of 0.5 W at 70°C. This fully sealed IP67 device withstands harsh conditions with a wide temperature range from -55°C to +125°C, ensuring durability and performance in demanding applications. Buy now for reliable, long-lasting electrical calibration components.
Get Vishay Spectrol Model 64 today—precise PCB mounting with IP67 sealed environment and stable resistance from 10.9Ω to 2.2 MΩ, designed for industrial reliability.
Frequently Asked Questions
Where can I buy Vishay M64X501KB40?
You can click on the BUY or RFQ button to purchase M64X501KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64X501KB40?
You can download the M64X501KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64X501KB40?
Vishay
