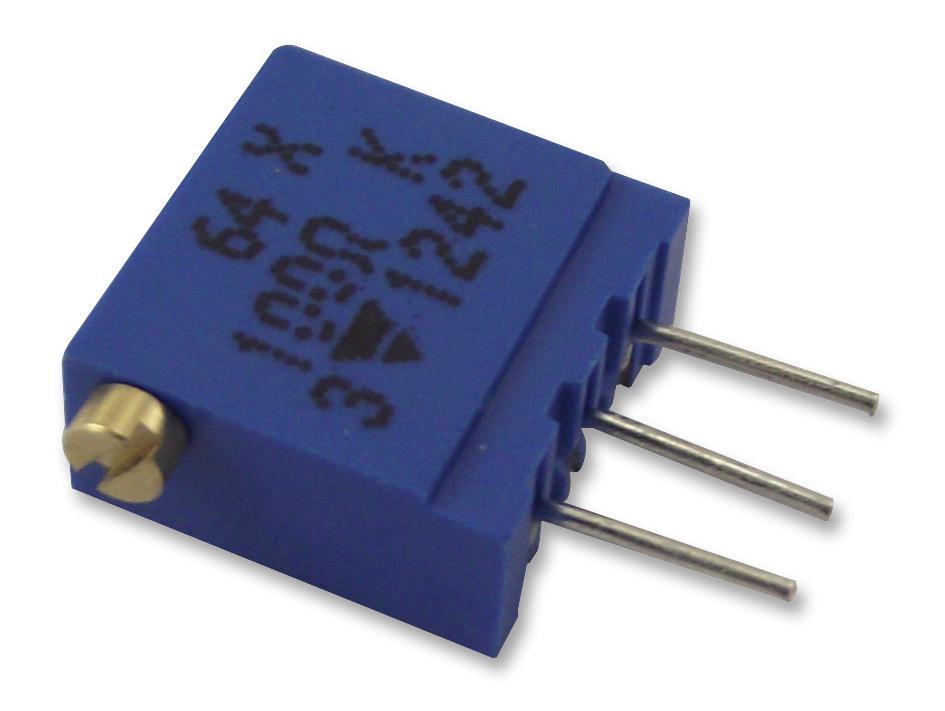

Vishay M64X502KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn cermet trimmer designed for precise PCB adjustments. Measuring 3/8" x 3/8" x 3/16", it features a resistive cermet element offering excellent stability and low contact resistance variation below 2%. Suitable for applications requiring a resistive range of 10.9 to 2.2MΩ, it operates within a temperature range of -55°C to +125°C, is fully sealed IP67, and has a maximum voltage of 250V. The device provides a mechanical travel of 23 turns, with a rated power of 0.5W at +70°C and features pure Sn terminals for reliable connections.
Vishay M64X502KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9Ω to 2.2MΩ
- Tolerance: Standard 10%, on request 5%
- Power rating: 0.5W at +70°C
- Temperature range: -55°C to +125°C
- Mechanical travel: 23 turns ±5
- End resistance: 12Ω typical
- Dielectric strength: 1000V RMS
- Insulation resistance: > 10^8 Ω at 600V
- Sealing: Fully sealed, IP67
- Terminal material: Pure Sn
- Max voltage: 250V linear law
- Weight: Approx. 0.82 g
Buy the Vishay Series 64 Multi-Turn Cermet Trimmer: M64X502KB40
Order the Vishay Model 64 multi-turn cermet trimmer now for reliable PCB calibration. This precision device offers a resistance range from 10.9Ω to 2.2MΩ, operates between -55°C and +125°C, and is fully sealed with IP67 protection. It features a 23-turn travel, 0.5W power rating, and pure Sn terminals ensuring stable electrical connections. Ideal for industrial and electronic applications demanding high stability, durability, and precise resistance adjustment in compact form.
Get Vishay Model 64 multi-turn cermet trimmer today—compact, sealed IP67, perfect for precise PCB adjustments and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay M64X502KB40?
You can click on the BUY or RFQ button to purchase M64X502KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64X502KB40?
You can download the M64X502KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64X502KB40?
Vishay
