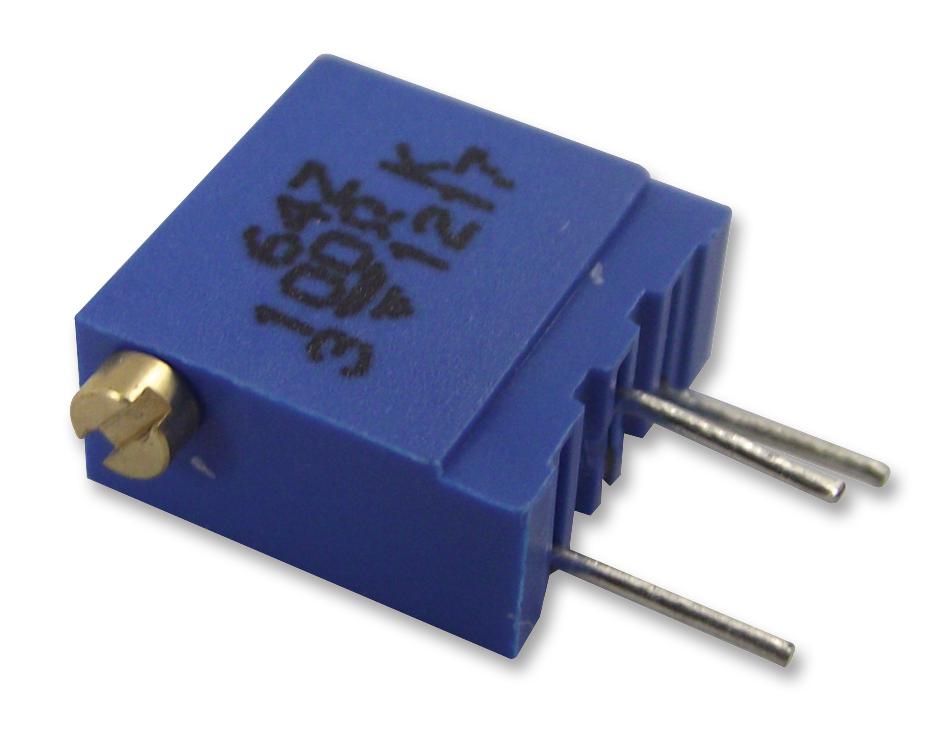

Vishay M64Z201KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn cermet trimmer designed for precise PCB mounting applications. It features a 3/8'' x 3/8'' x 3/16'' size, with excellent operational stability thanks to the cermet element. Suitable for electronic adjustments, it offers a resistance range from 10.9 Ω to 2.2 MΩ, with a power rating of 0.5 W at +70°C. Fully sealed with an IP67 rating, it supports an operating temperature from -55°C to +125°C, making it ideal for demanding environments.
Vishay M64Z201KB40 Multi-Turn Cermet Trimmer Specifications:
- Size: 3/8 inches x 3/8 inches x 3/16 inches
- Resistance range: 10.9Ω to 2.2MΩ
- Power rating: 0.5 W at +70°C
- Resistance tolerance: 10% standard, 5% upon request
- Electrical travel: 21 turns
- Linear law resistance
- Temperature coefficient: as per standard resistance table
- Dielectric strength: 1000 V RMS
- Insulation resistance: 10^8 Ω at 600 V
- Operating temperature: -55°C to +125°C
- Sealing: Fully sealed IP67
- Terminal material: Pure Sn
- Mechanical travel: 23 ±5 turns
- End resistance: 12 Ω (typical)
- Clutch action: End stop torque
Buy the Vishay Series 64 Multi-Turn Cermet Trimmer: M64Z201KB40
Order the Vishay Model 64 multi-turn cermet trimmer online today. Designed for precision, stability, and durability, it features an IP67 sealed design, broad temperature range, and resistance from 10.9Ω to 2.2MΩ. Ideal for PCB adjustments in industrial environments, it ensures reliable performance with full sealing, a high-quality resistive element, and excellent electrical stability. Purchase now to enhance your electronic projects with a trusted, high-performance component designed to meet demanding specifications.
Get Vishay Model 64 multi-turn cermet trimmer today—built for precision adjustments and long-lasting durability for demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay M64Z201KB40?
You can click on the BUY or RFQ button to purchase M64Z201KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Z201KB40?
You can download the M64Z201KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Z201KB40?
Vishay
