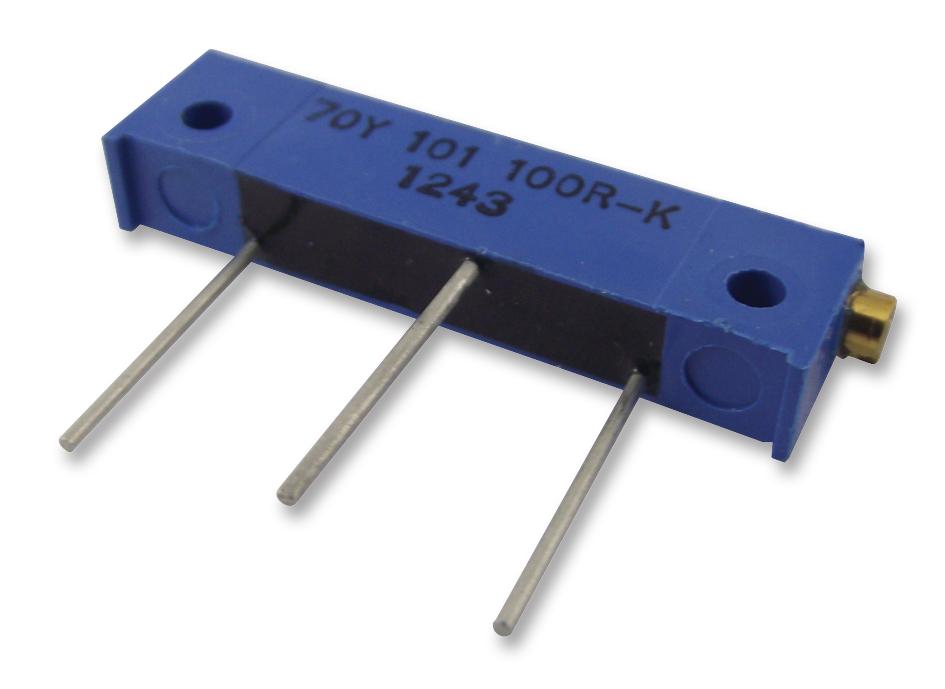

Vishay M70Y103KB25 Turn Cermet Trimmer
The Vishay Spectrol 70Y series is a high-precision, 0.5-watt turn cermet trimmer with a unique T-slider design for precise adjustment. Suitable for circuit calibration, it features wire leads and a resistance range from 10 ohms to 2 megaohms, with a typical power rating of 0.5 W at 70°C. The device withstands voltages up to 1000 Vac and has an operating temperature range of -55°C to +125°C, ensuring reliability in demanding environments. Its rugged construction includes sealed units and high terminal strength, making it ideal for calibration and adjustment in electronic assemblies.
Vishay M70Y103KB25 Turn Cermet Trimmer Specifications:
- Resistance range: 10Ω to 2 Megaohms
- Power rating: 0.5 W at 70°C
- Resistance tolerance: 10%
- Dielectric withstanding voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ
- Temperature range: -55°C to +125°C
- Mechanical torque: 5 oz.in maximum
- Rotational life: 200 cycles loaded, 500 cycles unloaded
- End resistance variation: 2% maximum
- Terminal material: Pure Sn (Sn-plated)
- Sealed units for cleaning
- Climatic category: 55/125/21
- Weight: 0.116 oz (3.3 g)
Buy the Vishay Series 70Y Turn Cermet Trimmer: M70Y103KB25
Order the Vishay 70Y series turn cermet trimmer today for reliable and precise circuit calibration. Featuring a unique T-slider design and wire leads, this high-quality component offers resistance from 10 ohms to 2 megaohms, effectively handling up to 0.5 W at 70°C. Its sealed construction ensures durability and suitability for demanding environments. With a temperature range from -55°C to +125°C and high dielectric voltage, it is perfect for electronic adjustment tasks in various applications. Shop online now for fast delivery and technical support.
Buy Vishay 70Y series turn cermet trimmer now and experience precise adjustment, high reliability, and rugged durability for your electronic calibration needs.
Frequently Asked Questions
Where can I buy Vishay M70Y103KB25?
You can click on the BUY or RFQ button to purchase M70Y103KB25 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M70Y103KB25?
You can download the M70Y103KB25 datasheet or visit the Vishay website for support.
Who is the manufacturer of M70Y103KB25?
Vishay
