Vishay MAL202138109E3 Aluminum Capacitor

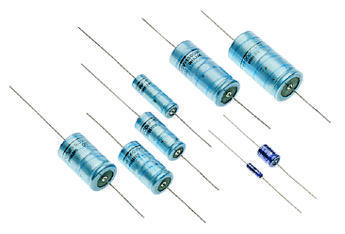

This high-quality axial aluminum capacitor features a polarized, non-solid electrolyte design suited for general purpose, industrial, automotive, and audio-video applications. It offers a long useful life of up to 8000 hours at 85°C, with miniaturized high capacitance-to-volume ratio, low ripple current, and effective filtering, smoothing, and decoupling capabilities. Ideal for portable equipment, vibration-resistant mounting, and demanding electronic circuits, it provides reliable performance over a wide temperature range, with various case sizes and taping options for automated insertion and versatile mounting configurations.
Vishay MAL202138109E3 Aluminum Capacitor Specifications:
- Nominal case sizes: 4.5x10 mm to 21x38 mm
- Rated capacitance: 1 uF to 15,000 HF
- Voltage range: 6.3V to 100V
- Endurance at 85°C: 2500 to 8000 hours
- Temperature range: -40°C to +85°C
- Mounting form: Axial (AA, BA, BR, MR)
- Dimensions: OD 4.5 mm to 21 mm, length 10 mm to 38 mm
- Leakage current: less than 0.006 Ca x Up + 4 μA at 1 min
- Ripple current: varies with frequency; multiplier data available
- Insulation: Blue sleeve insulation; case cylindrical aluminum
- Life percentage: > 80% useful life at recommended conditions
- RoHS and halogen-free compliant
- Applicable standards: IEC 60384-4, EN 130300, IEC 60068
Buy the Buy Vishay Aluminum Capacitors Part Number MAL202138109E3 Online
Purchase the Vishay aluminum electrolytic capacitor MAL202138109E3 online today for use in industrial, automotive, and audio-video projects. This cylindrical polarized capacitor offers long life up to 8000 hours at 85°C, ensuring dependable operation. Its compact axial form is suitable for portable devices, decoupling, filtering, and smoothing tasks. With various case sizes, taping options for automation, RoHS compliance, and proven durability, this capacitor provides excellent stability and performance. Order now to enhance your electronic circuit designs with trusted quality.
Buy Vishay MAL202138109E3 now and experience unmatched reliability and performance for demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay MAL202138109E3?
You can click on the BUY or RFQ button to purchase MAL202138109E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL202138109E3?
You can download the MAL202138109E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL202138109E3?
Vishay
