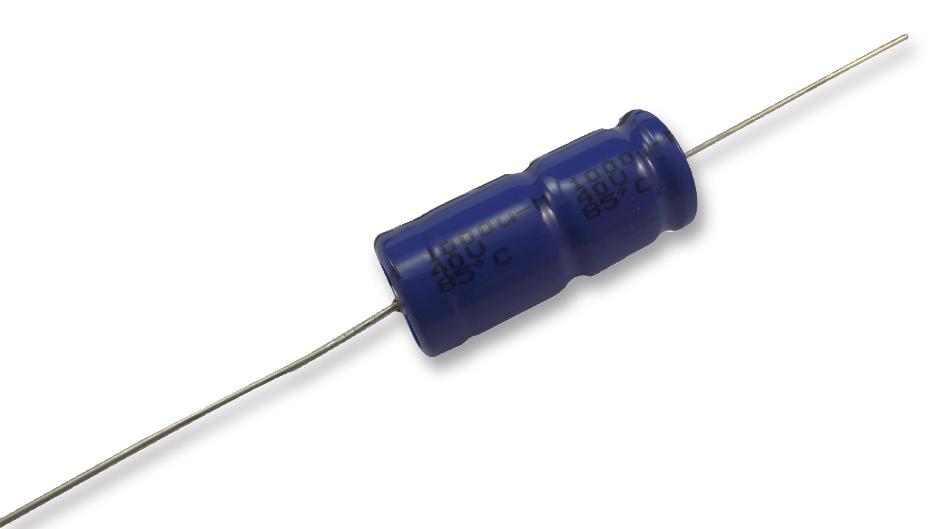

Vishay MAL202190511E3 Aluminum Capacitor
Vishay aluminum electrolytic capacitors from the 021 ASM series offer high capacitance, long useful lifespan up to 8000 hours at 85°C, and compact axial cylindrical design. These non-solid electrolyte capacitors are ideal for general industrial, automotive, and audio-video applications such as smoothing, decoupling, and buffering in low mounting height and vibration-resistant environments. Featuring impulse and charge/discharge proof construction, RoHS compliance, and multiple case sizes with taped versions for automatic insertion, they deliver reliable performance across temperatures from -40°C to +85°C.
Vishay MAL202190511E3 Aluminum Capacitor Specifications:
- Nominal case sizes: 45x10 mm to 21x38 mm
- Rated capacitance: 1 uF to 15,000 uF, tolerance 20%
- Rated voltage: 6.3 V to 100 V
- Temperature range: -40°C to +85°C
- Endurance: up to 8000 hours at 85°C, 2000 hours at 105°C
- Useful life at 85°C: 2500 to 8000 hours
- Shelf life at 0 V, 85°C: 500 hours
- Taped versions available for cases up to 15 mm x 30 mm
- RoHS compliant, non-solid electrolyte, axial cylindrical case
- Maximum leakage current: <0.006 Cp x Un + 4 pA after 1 min at Un
- Dissipation factor (tan δ): Max. at 100 Hz, varies by size, typically ≤0.08
- Equivalent series resistance (ESR), impedance at 10 kHz
- Climatic category IEC 60068 40/85/56
- Made with aluminum case, blue sleeve insulation, polarized
- Suitable for smoothing, filtering, buffering, decoupling applications
Buy the Vishay Series 021 ASM Aluminum Capacitor Reliability: MAL202190511E3
Enhance your electronic setups with Vishay 021 ASM aluminum electrolytic capacitors, offering high capacitance values up to 15,000 uF, rated voltages up to 100V, and long lifespan at 85°C. These compact axial components are ideal for smoothing, decoupling, and filtering in industrial, automotive, and audio-video applications. Produced with RoHS compliance, they feature robust construction resistant to vibration and shock, with taped versions for automated assembly. Trust Vishay’s proven quality for dependable, efficient performance in your most critical projects.
Buy Vishay 021 ASM aluminum electrolytic capacitors now and experience unmatched reliability and performance in demanding industrial environments.
