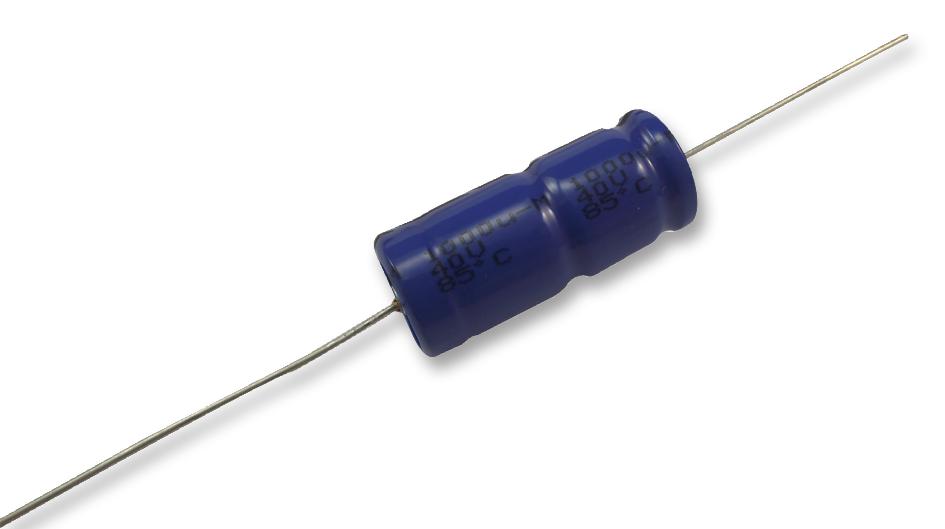

Vishay MAL202190518E3 Aluminum Electrolytic Capacitors
These axial aluminum electrolytic capacitors are designed for high reliability and long life, offering a wide capacitance range from 1 µF to 15,000 µF and voltage ratings up to 100V. With a category temperature range of -40°C to +85°C, they are suitable for industrial, automotive, and audio/video applications. Features include miniaturized design, high CV product, RoHS compliance, and taped versions for automatic insertion. They excel in filtering, decoupling, smoothing, and buffering in various electronic circuits, especially in portable devices and vibration-prone environments.
Vishay MAL202190518E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes: 45x10 mm to 21x38 mm
- Rated capacitance range: 1 µF to 15,000 µF
- Tolerance on Cr: 20%
- Rated voltage range: 6.3 V to 100 V
- Category temperature range: -40°C to +85°C
- Endurance at 85°C: 2500 to 8000 hours depending on size and voltage
- Useful life at 85°C: up to 8000 hours
- Shelf life at 0 V, 85°C: 500 hours
- Material: Cylindrical aluminum case, non-solid electrolyte, blue sleeve insulation
- Features include long life, high CV product, RoHS compliance, taped versions, axial leads
- Application areas: filtering, decoupling, smoothing, buffering in industrial, automotive, audio-video equipment
- Operating parameters: Max leakage current and dissipation factor per IEC standards, impedance at 10 kHz
- Available forms: Taped on reels (cases up to 15 mm x 30 mm), boxed tape (cases 10 mm x 30 mm to 21 mm x 38 mm), axial in boxes
- Environmental conditions: IEC and EN standards compliance
Buy the Vishay MAL202190518E3 – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Experience the reliability and superior performance of Vishay aluminum electrolytic capacitors available online. With capacitance options from 1 µF to 15,000 µF and voltages up to 100V, these capacitors ensure optimal filtering, decoupling, and smoothing in industrial, automotive, and consumer electronics. Featuring long life, RoHS compliance, and high CV product, they are ideal for portable devices, vibration-resistant circuits, and demanding environments. Purchase online today to ensure your projects benefit from proven quality and technical excellence, backed by fast delivery and expert support.
Get Vishay MAL202190518E3 today—built for precision, long-lasting durability, and versatile filtering solutions.
Frequently Asked Questions
Where can I buy Vishay MAL202190518E3?
You can click on the BUY or RFQ button to purchase MAL202190518E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL202190518E3?
You can download the MAL202190518E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL202190518E3?
Vishay
