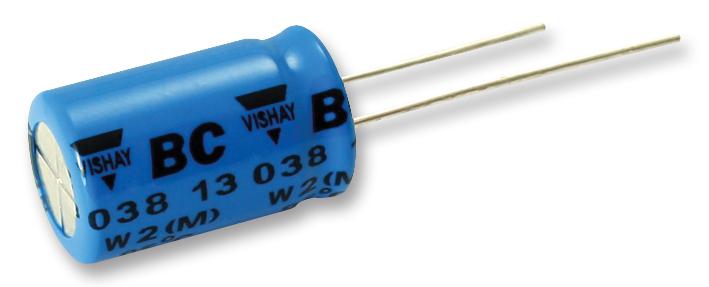

Vishay MAL203854222E3 Miniature Aluminum Capacitor
These are polarized aluminum electrolytic capacitors designed for general purpose, industrial, automotive, consumer, and audio-video applications. Featuring radial leads, cylindrical aluminum case insulated with a blue vinyl sleeve, and pressure relief, they offer miniaturized high capacitance per volume, charge and discharge proof, and are RoHS compliant. Suitable for coupling, decoupling, filtering, smoothing, and buffering in SMPS, they are available in case sizes from 5x11 mm to 18x40 mm with capacitance ratings from 0.1 UF to 22,000 UF and voltages from 6.3 V to 100 V. Endurance at 85°C ranges from 2000 to 3500 hours depending on size.
Vishay MAL203854222E3 Miniature Aluminum Capacitor Specifications:
- Capacitance range: 0.1 UF to 22,000 UF
- Voltage range: 6.3 V to 100 V
- Nominal case sizes: 5x11 mm to 18x40 mm
- Case size tolerance: ±0.5 mm in OD, ±1 mm in length
- Temperature rating: -40°C to +85°C
- Endurance at 85°C: 2000 h to 3500 h depending on size
- Useful life at 85°C: 2500 h to 90000 h
- Shelf life at 0 V, 85°C: 1000 hours
- Climatic category: IEC 60068 40/085/56
- RoHS compliant
- Pressure relief feature for case sizes >6.3 mm
- Conductive rubber or aluminum end terminals
- Ripple current: specified as per size and capacitance
- Dissipation factor at 100 Hz: typically below 0.23
- Leakage current: max 0.002 * Ca * Un + 3 uA at 2 min
- ESL: < 18nH for case D<8mm, < 16nH for D=10mm, < 18nH for D>12mm
- Resistance: calculated from tan δ and Cp, typical ESR varies with frequency
Buy the Buy Vishay Aluminum Capacitors Part Number MAL203854222E3 Online
Order the Vishay MAL203854222E3 aluminum electrolytic capacitor online today. These high-quality, miniaturized capacitors are perfect for demanding industrial, automotive, and consumer electronic applications. They offer reliable performance with long endurance at high temperature, excellent ripple handling, and RoHS compliance. Whether you need capacitance from 0.1 UF to 22,000 UF and voltages up to 100 V, this product guarantees dependable operation and easy online purchase for your design needs. Enhance your system's performance with Vishay capacitors today.
Buy Vishay MAL203854222E3 now and experience unmatched reliability and high capacitance in small, durable form factors for your electronic projects.
Frequently Asked Questions
Where can I buy Vishay MAL203854222E3?
You can click on the BUY or RFQ button to purchase MAL203854222E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL203854222E3?
You can download the MAL203854222E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL203854222E3?
Vishay
