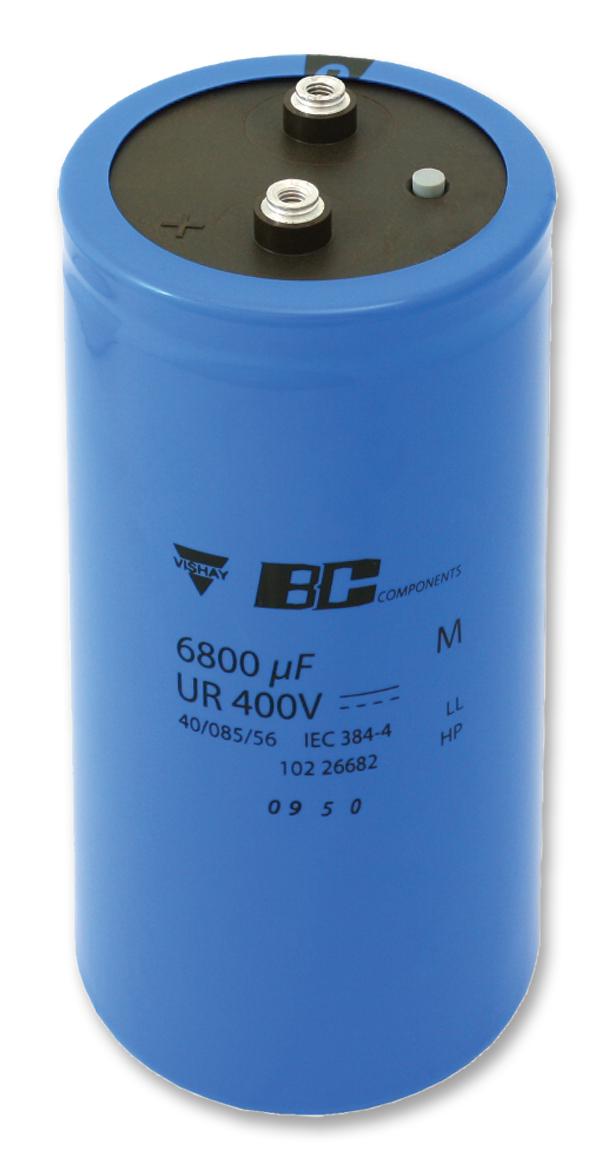

Vishay MAL210216332E3 Aluminum Capacitors
Vishay BCcomponents high ripple current aluminum electrolytic capacitors are designed for buffering, filtering, motor drives, inverters, UPS, and pulsed power supplies. They feature long useful life up to 15,000 hours @+85°C, low ESR, pressure relief sealing, and are available in large cylindrical steel cases up to 90 mm x 220 mm. These polarized capacitors use non-solid electrolyte, providing reliable performance in demanding applications with high ripple current handling and extended durability.
Vishay MAL210216332E3 Aluminum Capacitors Specifications:
- Capacitance range: 220 UF to 1 F
- Rated voltage: 25 V to 450 V
- Temperature range: -40°C to +85°C
- Useful life: 10,000 to 15,000 hours at +85°C
- Case sizes: up to 90 mm x 220 mm
- Long useful life, pressure relief in sealing, RoHS compliant
- Material: polarized aluminum electrolytic with non-solid electrolyte
- Features: pressure relief, large cylindrical steel case, insulated with blue sleeve
- ESR: Low at frequencies up to 20 kHz
- Endurance test: 2000 hours at 85°C with rating up to 15,000 hours for larger cases
- Available in screw terminal configurations, with torque specifications for mounting
- Max ripple current multiplier for air flow, temperature, and frequency factors
- Compliant with IEC 60384-4 and EN 130300 standards
- Marking includes rated capacitance, voltage, tolerance, date code, and manufacturer
Buy the Vishay Series PHR-ST Aluminum Capacitors: MAL210216332E3
Purchase Vishay BCcomponents aluminum electrolytic capacitors online now and enjoy reliable performance with long-lasting durability. Perfect for filtering, buffering, and high ripple applications. These capacitors feature a robust cylindrical steel case, pressure relief sealing, and low ESR for efficient power management. With capacities from 220 UF to 1 F and voltages up to 450 V, they cater to various industrial and commercial power supply needs. Easy to order online with detailed specifications ensuring quality and performance for your projects.
Get Vishay BCcomponents MAL210216332E3 aluminum capacitors today—designed for high ripple currents and extended lifespan in demanding power systems.
Frequently Asked Questions
Where can I buy Vishay MAL210216332E3?
You can click on the BUY or RFQ button to purchase MAL210216332E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL210216332E3?
You can download the MAL210216332E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL210216332E3?
Vishay
