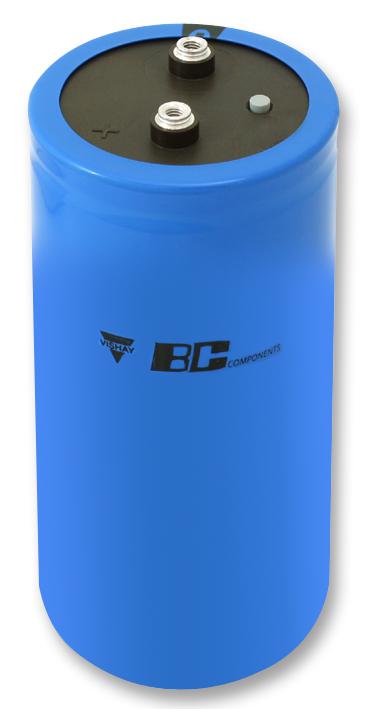

Vishay MAL210446152E3 Aluminum Capacitor
Vishay BCcomponents' aluminum electrolytic capacitors offer reliable performance for industrial and telecom applications, featuring long useful life of 5000 hours at +105°C, high ripple current, and long-term stability. Suitable for smoothing, filtering, energy storage, and power supply systems, they come in various case sizes up to 90 mm x 220 mm, with voltage ratings from 200 V to 450 V, and capacitance from 150 UF to 33,000 pF. Their sealed design includes pressurized relief, screw terminals, and bolt options, ensuring robust operation in high-temperature and demanding environments.
Vishay MAL210446152E3 Aluminum Capacitor Specifications:
- Nominal case size: 35x60 mm to 90x220 mm
- Capacitance: 150 UF to 33,000 pF
- Rated voltage: 200 V to 450 V
- Temperature range: -40°C to +105°C
- Endurance: 2000 hours at 105°C
- Useful life: 5000 hours at 105°C
- Shelf life: 1000 hours at 0V, 105°C
- Pressure relief in sealing
- Available in screw terminal and bolt versions
- Impermeable sealed aluminum case with blue insulator sleeve
- Maximum torque: 2 Nm for M5 screws, 2.5 Nm for M6 screws
- Leakage current: < 0.006 Ca x Un after 1 min at Ur
- ESR at 100 Hz and impedance at 20 kHz specified
- Climatic category IEC 60068 40/105/56
- Compliance: RoHS, Halogen-Free
Buy the Vishay PHL-ST – Reliable Aluminum Capacitors for Industrial Applications
Enhance your power supply systems with the high-reliability Vishay aluminum electrolytic capacitors. Featuring long life of 5000 hours at +105°C and high ripple current capacity, these capacitors are ideal for smoothing, filtering, energy storage, and pulse systems. Available in various sizes up to 90 mm x 220 mm, with voltage ratings from 200 V to 450 V, they provide robust performance even under demanding conditions. Order online today and secure dependable, high-quality components for your industrial projects.
Order your Vishay Series 104 PHL-ST aluminum electrolytic capacitor today and ensure dependable power filtering in your industrial, telecom, or energy systems.
Frequently Asked Questions
Where can I buy Vishay MAL210446152E3?
You can click on the BUY or RFQ button to purchase MAL210446152E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL210446152E3?
You can download the MAL210446152E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL210446152E3?
Vishay
