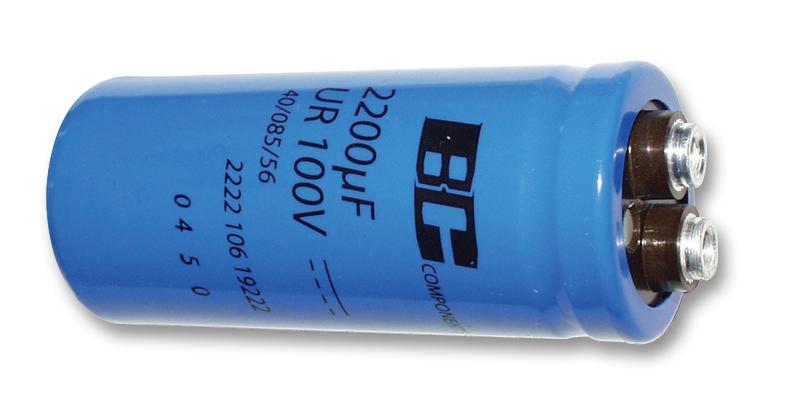

Vishay MAL210618472E3 Aluminum Capacitors
Vishay BCcomponents presents the 106 PED-ST series of polarized aluminum electrolytic capacitors designed for high-reliability applications in computer, telecommunication, and industrial systems. Featuring very long useful life of up to 20,000 hours at 85°C, these capacitors offer very low ESR and ESL, ensuring excellent performance in filtering, smoothing, power supplies, and pulse energy storage. Available in cylindrical aluminum cases with screw terminals or bolt versions, they resist shock and vibration, include pressure relief, and are RoHS compliant. Their robust design makes them ideal for high current and high-frequency applications, with a wide capacitance and voltage range, and tested for endurance.
Vishay MAL210618472E3 Aluminum Capacitors Specifications:
- Nominal case size: 35 x 60 mm to 90 x 220 mm
- Rated capacitance: from 1000 HF to 330,000 LF
- Tolerance on capacitance: -10 % to +30 %
- Rated voltage: 25 V to 100 V
- Category temperature: -40°C to +85°C
- Useful life: 20,000 hours at 85°C
- Shelf life: 500 hours at 0 V, 85°C
- Endurance: 8,000 hours at 85°C
- Pressure relief in sealing, charge and discharge proof, RoHS compliant
- Dimensions include case diameter and length; screw terminal and bolt versions available
- Case dimensions specify various model sizes with corresponding physical measurements
- Maximum torque for termination screws: 2 Nm (MS) and 2.6 Nm (M6)
- Leakage current depends on capacitance and voltage; ESR and impedance vary with frequency
- Maximum leakage current: 0.006 Cp x Up + 4 UF after 1 minute at Up
- ESR at 100 Hz, typical case sizes: 13-21 nH inductance, depending on diameter
- Ripple current capabilities and useful life decrease with elevated temperature and ripple load
- Test procedures include endurance at 85°C, useful life testing, and shelf life validation
Buy the Vishay 106 PED-ST – Reliable Aluminum Capacitors for Industrial Applications
Upgrade your power systems and industrial equipment with Vishay 106 PED-ST aluminum electrolytic capacitors. Designed for long life, low ESR, and high ripple current, these capacitors ensure stable performance in demanding environments. Available in screw terminal and bolt versions with various dimensions, they are ideal for smoothing, filtering, energy storage, and power supplies. Purchase online today and benefit from fast shipping, quality assurance, and superior electrical characteristics to enhance your applications' reliability and efficiency.
Buy Vishay 106 PED-ST aluminum electrolytic capacitors now and experience unmatched reliability and performance in power and filtering applications.
