Vishay MAL210619472E3 Aluminum Electrolytic Capacitors

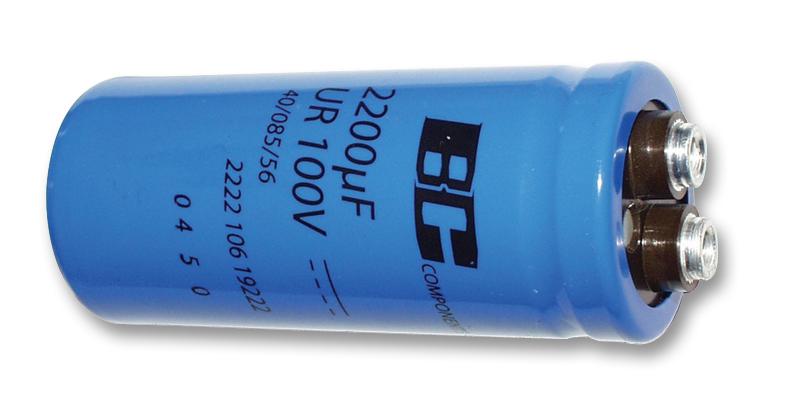

Vishay BCcomponents 106 PED-ST aluminum electrolytic capacitors are high-reliability, polarized, non-solid electrolyte devices designed for power smoothing, filtering, and energy storage in industrial, telecommunications, and computer systems. Featuring a long useful life of 20,000 hours at 85°C, they offer very low ESR and ESL, shock and vibration resistance, pressure relief, charge and discharge proof, and RoHS compliance. Available in cylindrical aluminum cases with screw terminals, these capacitors support a wide voltage range from 25V to 100V and a capacitance range from 1000 uF to 330,000 uF, suitable for high-power applications.
Vishay MAL210619472E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size (Q D x L in mm): 35 x 60 to 90 x 220
- Rated capacitance range: 1000 uF to 330,000 uF
- Tolerance on rated capacitance: -10 % to +30 %
- Rated voltage: 25 V to 100 V
- Category temperature range: -40°C to +85°C
- Endurance test at 85°C: 8000 h
- Useful life at 85°C: 20,000 h
- Shelf life at 0 V, 85°C: 500 h
- Climatic category: IEC 60068 40/085/56
- Dimensions in mm: standard sizes vary from 35 x 60 to 90 x 220
- Maximum permissible torque for termination screws: 2 Nm (MS), 2.6 Nm (M6)
- Electrolytic capacitor marking includes rated capacitance, voltage, tolerance code, date code, and factory code.
- Pressure relief in sealing, RoHS compliant, shock and vibration resistant, supports high ripple currents
Buy the Vishay 106 PED-ST – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Enhance your industrial power systems with Vishay 106 PED-ST aluminum electrolytic capacitors. Designed for longevity and stability, these capacitors offer low ESR, high ripple current handling, and robust construction. Ideal for smoothing, filtering, and energy storage in industrial, telecommunications, and computer systems, they ensure reliable operation even in shock and vibration environments. With a wide voltage and capacitance range, quick online purchasing ensures you receive high-quality components promptly, supporting your power supply and system reliability needs.
Buy Vishay 106 PED-ST aluminum electrolytic capacitors now and experience unmatched longevity, low ESR, high ripple current capacity, and reliable performance.
