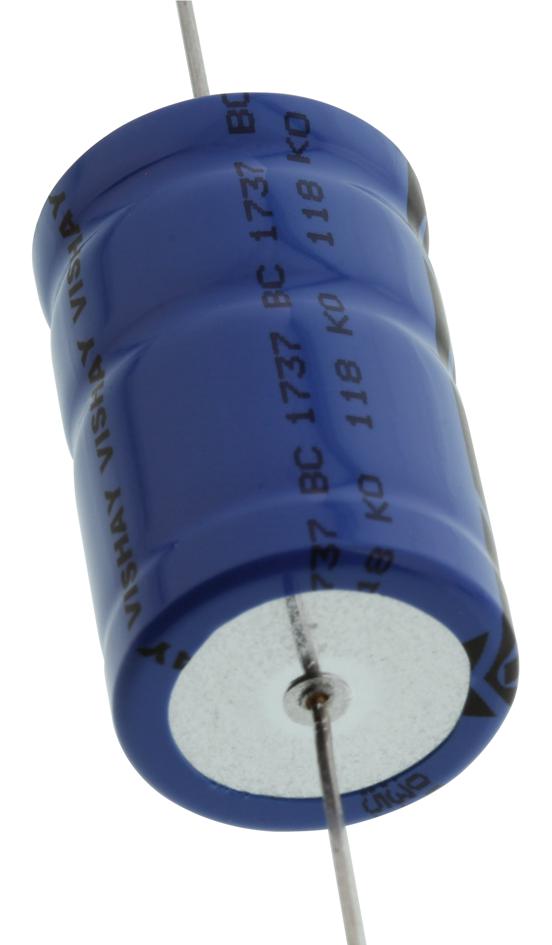

Vishay MAL211817102E3 Aluminum Capacitor
The 118 AHT series high-temperature axial leaded aluminum capacitor features a cylindrical aluminum case insulated with a blue sleeve. It is a polarized electrolytic capacitor with a non-solid electrolyte, suitable for use in portable mobile equipment due to its small size and low mass. Designed to withstand vibration and shocks, it is ideal for outdoor applications such as aerial amplifiers. The capacitor is used for coupling, decoupling, timing, smoothing, and filtering circuits. It can be stored for up to 10 years without applied voltage and operates reliably up to 125°C, with an extended temperature range up to 150°C. It offers an extended service life of approximately 8,000 hours at 125°C, ensuring high reliability. Its compact design provides a high capacitance volume ratio.
Vishay MAL211817102E3 Aluminum Capacitor Specifications:
- Case Size: 10x25 mm; 10x30 mm; 21x38 mm; 18x30 mm; 15x30 mm; 12.5x30 mm; 18x38 mm
- Material: Aluminum case, blue insulation sleeve
- Temperature Range: -55°C to 125°C, up to 150°C usable
- Capacitance Range: 4.7 µF to 10,000 µF
- Rated Voltage Range: 6.3V to 200V
- Endurance: 2000-3000 hours at 150°C, 8000 hours at 125°C
- Ripple Current: Up to 14A at 100Hz and 125°C
- Useful life: Up to 8000 hours at 125°C
- Leakage Current: Below specified limits after 5 minutes at rated voltage
- Mounting: Axial leads, taped versions available for automatic insertion
Buy the Vishay Series 118 AHT Aluminum Capacitor: MAL211817102E3
Order the Vishay 118 AHT aluminum capacitor online today to benefit from high temperature stability, extended lifespan of up to 8,000 hours at 125°C, and a compact design perfect for outdoor, automotive, and telecommunication applications. This axial polarized capacitor supports a broad voltage range from 6.3V to 200V and operates reliably up to 125°C, with an extended temperature capability up to 150°C. Its small size and high capacitance volume ratio make it ideal for smoothing, filtering, coupling, and timing functions in demanding environments, ensuring durability and high performance over long service periods.
Get Vishay 118 AHT aluminum capacitor today—built for high temperature reliability, compact design, and long-lasting performance in rugged environments.
Frequently Asked Questions
Where can I buy Vishay MAL211817102E3?
You can click on the BUY or RFQ button to purchase MAL211817102E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL211817102E3?
You can download the MAL211817102E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL211817102E3?
Vishay
