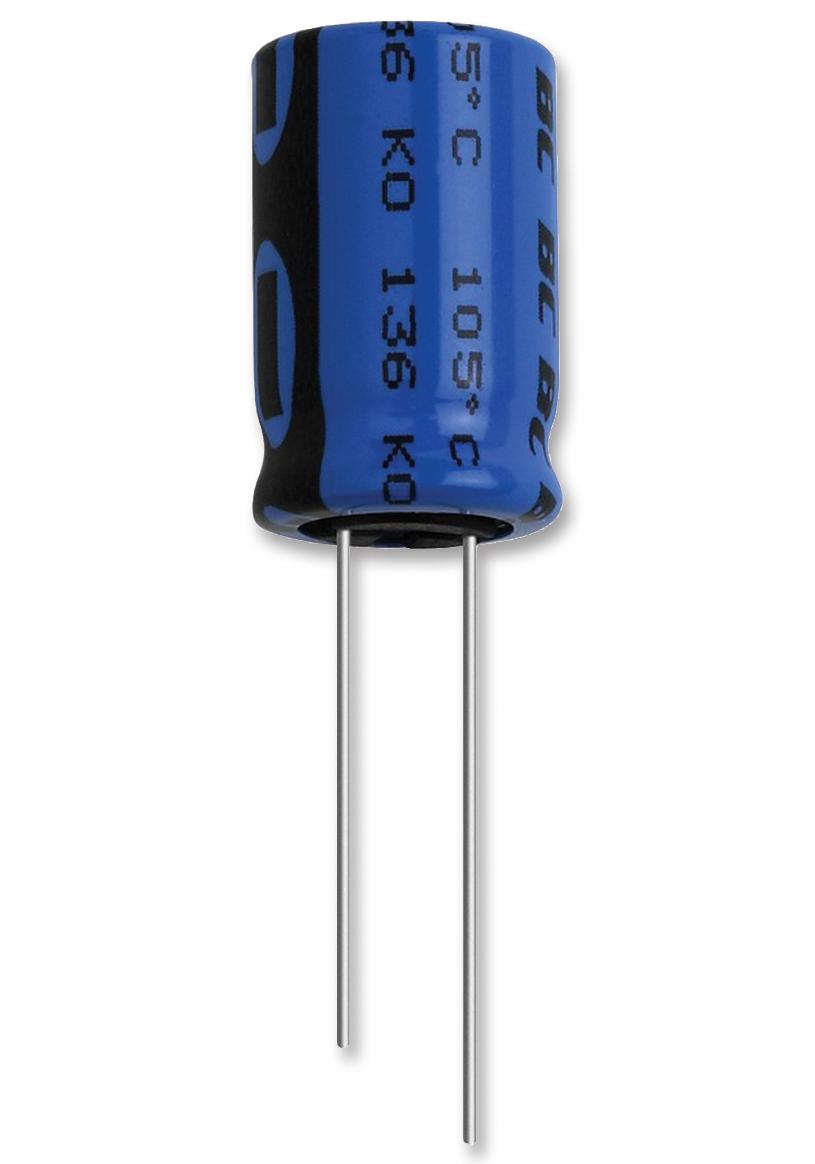

Vishay MAL213659221E3 Electrolytic Capacitors
High-reliability aluminum electrolytic capacitors with very low impedance and ESR, suitable for power supplies, filtering, smoothing, and buffering in industrial, EDP, audio-video, and telecommunications equipment. They feature radial leads in cylindrical aluminum cases with pressure relief, insulated with a blue sleeve, and are charge and discharge proof, ensuring long useful life up to 10,000 hours at 105°C. These polarized, non-solid electrolyte capacitors are available in various sizes and capacitance ranges from 22 UF to 10,000 UF, rated voltage from 10V to 100V, and operate within -55°C to +105°C temperature range.
Vishay MAL213659221E3 Electrolytic Capacitors Specifications:
- Nominal case sizes: 10 x 12 mm to 18 x 35 mm
- Capacitance range: 22 UF to 10,000 UF
- Rated voltage: 10V to 100V
- Temperature range: -55°C to +105°C
- Useful life: 4000 h to 10,000 h at 105°C depending on size
- Endurance test duration: 3000 h to 5000 h at 105°C
- Diameter (D): 10 mm to 18 mm
- Length (L): 12 mm to 35 mm
- Impulse ripple current capability: high
- Polarity: polarized, non-solid electrolyte
- Features: very low impedance and ESR, charge and discharge proof, cylindrical aluminum case with pressure relief, insulated with a blue sleeve
Buy the Vishay 136 RVI – Reliable Electrolytic Capacitors for Industrial Applications
Enhance your electronic designs with Vishay 136 RVI electrolytic capacitors. These high-performance, low-impedance components deliver reliable filtering, buffering, and smoothing for power supplies, telecommunications, and industrial equipment. With a lifespan up to 10,000 hours at 105°C, they ensure long-term durability. Available in various sizes and capacitance ratings from 22 UF to 10,000 UF, rated voltage from 10V to 100V, and operating within -55°C to +105°C, they are essential for demanding applications. Order online today for fast delivery and trusted quality.
Buy Vishay 136 RVI capacitors now and experience unmatched reliability, long lifespan, and excellent filtering for industrial power supplies and electronics.
Frequently Asked Questions
Where can I buy Vishay MAL213659221E3?
You can click on the BUY or RFQ button to purchase MAL213659221E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL213659221E3?
You can download the MAL213659221E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL213659221E3?
Vishay
