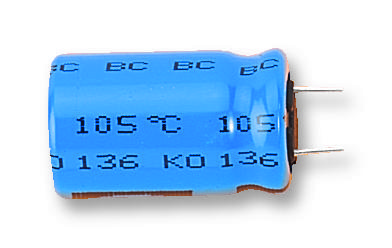

Vishay MAL213669101E3 Aluminum Electrolytic Capacitors
Vishay BCcomponents 136 series aluminum electrolytic capacitors feature very low impedance and ESR for power supplies, filtering, and buffering in industrial, audio-video, and telecommunications applications. With long useful life up to 10,000 hours at 105°C, high ripple current capability, polarized non-solid electrolyte, radial cylindrical form with pressure relief, and RoHS compliance, these capacitors ensure reliable performance and durability. They are available in various case sizes, electrical ratings, and form factors to meet diverse electronic needs, with detailed electrical and mechanical specifications for optimized circuit design.
Vishay MAL213669101E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes: 10x12 mm to 18x35 mm
- Capacitance range: 22 μF to 10,000 μF
- Rated voltage: 10 V to 100 V
- Temperature range: -55°C to +105°C
- Endurance: 4000 to 10,000 hours at 105°C depending on case size
- Useful life at 105°C: up to 10,000 hours
- Ripple current capability: High, specific to case size and electrical ratings
- Insulation: Polarized non-solid electrolyte
- Form: Radial leads, cylindrical aluminum case with pressure relief and insulated with blue sleeve
- Markings: Capacitance, voltage, date code, and series information
- RoHS compliant and RoHS category certified for hazardous substances
- Mechanical dimensions verified as per Vishay specifications, including lead length and case diameter
- Impedance and ESR multipliers depend on temperature and frequency, optimized for high-frequency filtering
- High reliability with charge/discharge proof, long shelf life at 0V and high temperature conditions
- Compliance with IEC 60384-4 and environmental standards for electronic components
Buy the Vishay Series RVI Aluminum Capacitors: MAL213669101E3
Enhance your electronic designs with Vishay MAL213669101E3 aluminum electrolytic capacitors featuring very low impedance, extended lifespan up to 10,000 hours at 105°C, high ripple current capacity, and reliable performance. Perfect for power supplies, filtering, buffering, and industrial applications, these polarized capacitors come in compact, cylindrical aluminum cases with pressure relief. Easy to integrate with detailed markings, RoHS compliance, and verified mechanical dimensions, they ensure durability and stability across diverse operating conditions. Purchase online now for efficient, high-quality electronic components.
Buy Vishay MAL213669101E3 aluminum electrolytic capacitors now and experience unmatched reliability and high ripple current performance.
