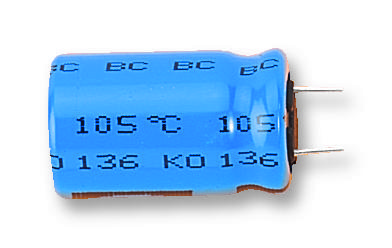

Vishay MAL213669479E3 Aluminum Capacitor
Vishay BCcomponents 136 RVI aluminum electrolytic capacitors feature very low impedance and ESR, providing high ripple current capability, long useful life (up to 10,000 hours at 105°C), and excellent reliability. They are polarized with radial leads, cylindrical aluminum cases with pressure relief, insulated with a blue sleeve, and are suitable for power supplies, filtering, buffering, and smoothing in industrial, telecommunications, and audio-video applications. These capacitors comply with RoHS standards and come in various sizes, voltages, and capacitance ranges for versatile use.
Vishay MAL213669479E3 Aluminum Capacitor Specifications:
- Capacitance Range: 22 UF to 10,000 UF
- Voltage Range: 10 V to 100 V
- Temperature Range: -55°C to +105°C
- Endurance: 4000 to 10,000 hours at 105°C depending on size
- Physical Sizes: 10x12 mm to 18x35 mm
- Material: Aluminum electrolytic, non-solid electrolyte
- Pressure Relief: Yes
- Lead Type: Radial leads
- RoHS Compliant: Yes
- Lifetime at 40°C: up to 500,000 hours
- Shelf Life @ 0 V, 105°C: 1000 hours
- Ripple Current: Rated up to 1700 mA, depending on size
- Impedance at 100 kHz: varies with size and voltage
- Maximum ESR: as specified in electrical data
- Climatic Category: IEC 60068 55/105/56
- Markings: Capacitance, voltage, series number, date code
- Housing: Cylindrical aluminum case with blue insulation
- RoHS and REACH compliant
- Various forms including long leads, cut leads, tape and reel
Buy the Vishay Series 136 RVI Aluminum Capacitors: MAL213669479E3
Purchase Vishay 136 RVI aluminum electrolytic capacitors online and ensure your power supply, filtering, and buffering needs are met with high reliability and extended lifespan. These capacitors feature very low impedance and ESR, making them ideal for high ripple current applications in industrial, telecommunications, and audio-video systems. With long useful life up to 10,000 hours at 105°C, RoHS compliance, and various sizes and voltage ratings, buy online today for fast delivery and superior quality that guarantees long-term performance in demanding environments.
Get Vishay 136 RVI aluminum electrolytic capacitor today—built for long-lasting durability and reliable power smoothing in industrial and telecommunications applications.
Frequently Asked Questions
Where can I buy Vishay MAL213669479E3?
You can click on the BUY or RFQ button to purchase MAL213669479E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL213669479E3?
You can download the MAL213669479E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL213669479E3?
Vishay
