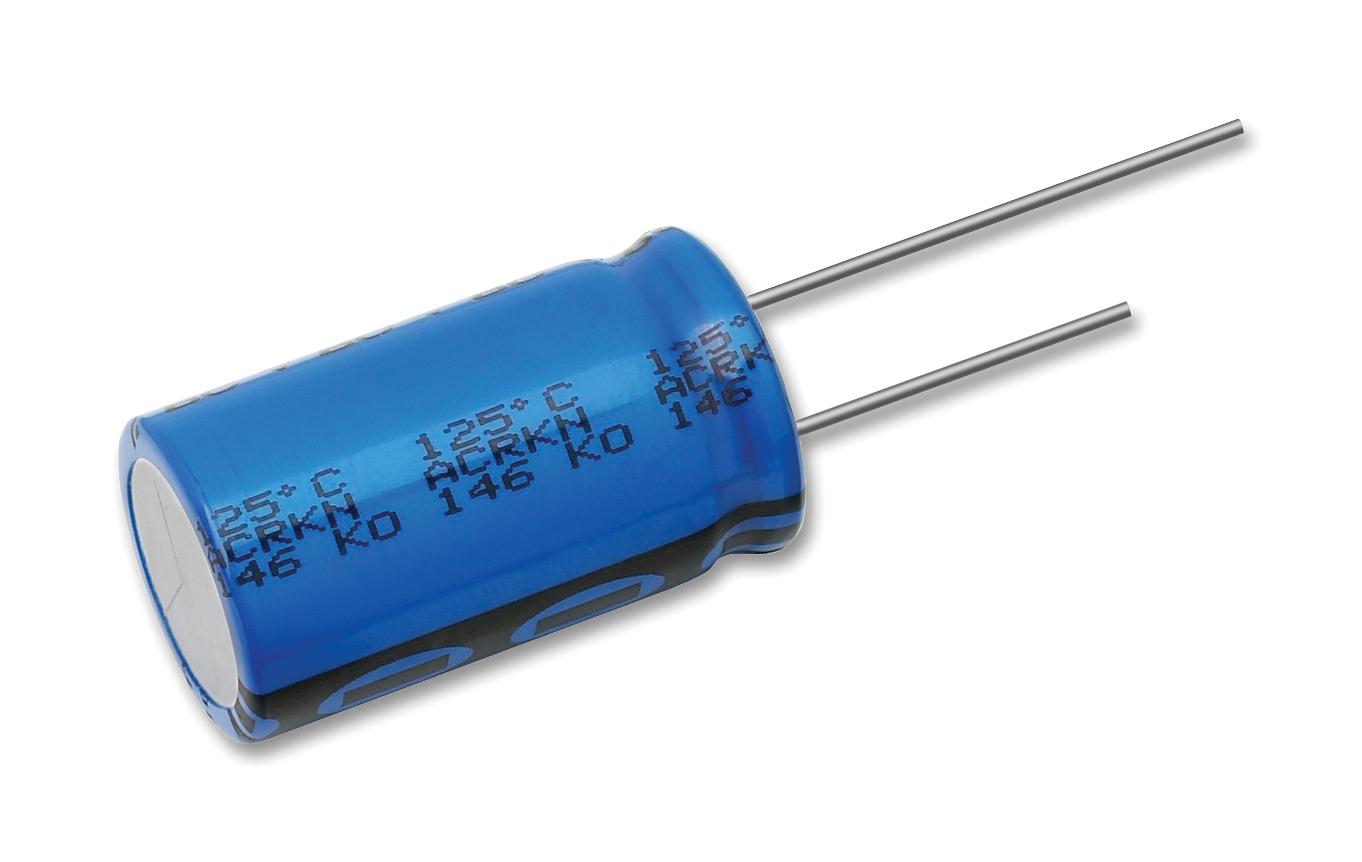

Vishay MAL214650221E3 Aluminum Electrolytic Capacitor
These aluminum electrolytic capacitors feature radial leads, cylindrical aluminum cases with pressure relief, and blue PET insulation. Designed for high-temperature applications, they offer long useful life—up to 6000 hours at 125°C—and excellent ripple current capability. Suitable for power supplies, filtering, and buffering in industrial, automotive, telecommunications, and military environments, they are AEC-Q200 qualified and RoHS compliant. The capacitors have a rated voltage of 16 to 63 V and capacitance from 68 to 6800 μF, with various case sizes and high stability for reliable electronic systems.
Vishay MAL214650221E3 Aluminum Electrolytic Capacitor Specifications:
- Capacitance Range: 68 μF to 6800 μF
- Rated Voltage: 16 V to 63 V
- Useful Life: 2500 h to 6000 h at 125°C
- Temperature Rating: -40°C to +125°C
- Case Sizes: 10 x 12 mm to 18 x 35 mm
- Construction: Cylindrical aluminum case, face or side mounting options
- Leakage Current: Max. specified after 2 minutes at Ur
- Ripple Current: Excellent ripple current capability at 100 kHz and 125°C
- Impedance: Max. impedance at 100 kHz
- Compliance: AEC-Q200 Qualified, RoHS compliant
Buy the Buy Vishay BCcomponents Aluminum Electrolytic Capacitors Part Number MAL214650221E3 Online
Purchase the Vishay BCcomponents MAL214650221E3 aluminum electrolytic capacitor online now. Designed for high-temperature and high-reliability applications, it offers long service life—up to 6000 hours at 125°C—and excellent ripple current capabilities. Ideal for industrial, automotive, telecommunications, and military power supplies, its robust construction and compliance with industry standards ensure stable performance. Order today to enhance your electronic design with proven quality and quick delivery, guaranteeing dependable operation in demanding environments.
Order your Vishay Series146 RTI Aluminum Electrolytic Capacitor MAL214650221E3 today and ensure long-lasting reliability for your power supply and filtering needs.
Frequently Asked Questions
Where can I buy Vishay MAL214650221E3?
You can click on the BUY or RFQ button to purchase MAL214650221E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214650221E3?
You can download the MAL214650221E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214650221E3?
Vishay
