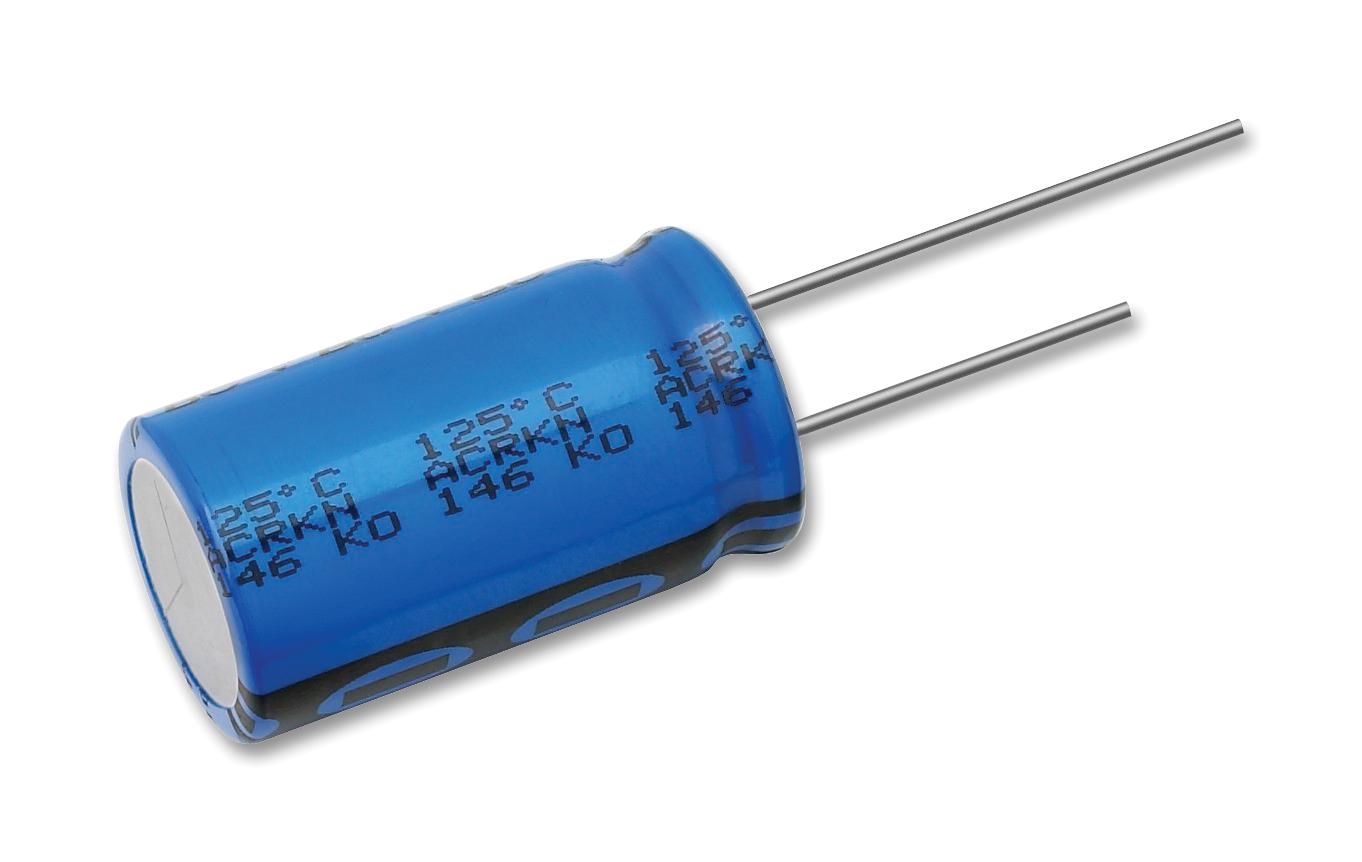

Vishay MAL214656102E3 Aluminum Electrolytic Capacitor
This high-temperature, radial aluminum electrolytic capacitor features low impedance and long useful life—ranging from 2500 to 6000 hours at 125°C. Designed for power supplies, filtering, and buffering in industrial and automotive applications, it offers excellent ripple current capability and reliability. Encased in cylindrical aluminum with pressure relief and insulated with a blue PET sleeve, this polarized capacitor complies with RoHS and AEC-Q200 standards. Suitable for smoothing, filtering, and buffering, the capacitor supports demanding environments with stable performance and extended lifetime.
Vishay MAL214656102E3 Aluminum Electrolytic Capacitor Specifications:
- Capacitance Range: 68 UF to 6800 UF
- Rated Voltage: 16 V to 63 V
- Useful Life: 2500 h to 6000 h at 125°C
- Case Sizes: 10 x 12 mm to 18 x 35 mm
- Temperature Range: -55°C to +125°C
- Polarized aluminum electrolytic, non-solid electrolyte
- Radial leads, cylindrical aluminum case with pressure relief
- RoHS and AEC-Q200 compliant
- Pressure relief vent and blue PET sleeve insulation
- Ripple current capacity: Excellent ripple current capability at 100 kHz
- Climatic category: IEC 60068 55 / 125/56
- Marking includes capacitance, voltage, date code, factory code
- Mass varies with size, typically between 0.6 g to 4 g
Buy the Vishay Series 146 RTI: Aluminum Electrolytic Capacitor 68 UF 16 V
Purchase the Vishay Series 146 RTI aluminum electrolytic capacitor online now for your power supply, automotive, or telecommunications projects. Featuring low impedance, high stability, long useful life up to 6000 hours at 125°C, and RoHS compliance, this component is ideal for smoothing, filtering, and buffering in demanding environments. Its cylindrical aluminum case with pressure relief, polarized electrolyte, and radial leads ensure durable performance. Order today and benefit from fast delivery, competitive pricing, and trusted Vishay quality for all your industrial and military applications.
Order your Vishay Series 146 RTI aluminum electrolytic capacitor today and ensure reliable performance in high-temperature industrial and automotive electronics with superior ripple current capacity.
Frequently Asked Questions
Where can I buy Vishay MAL214656102E3?
You can click on the BUY or RFQ button to purchase MAL214656102E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214656102E3?
You can download the MAL214656102E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214656102E3?
Vishay
